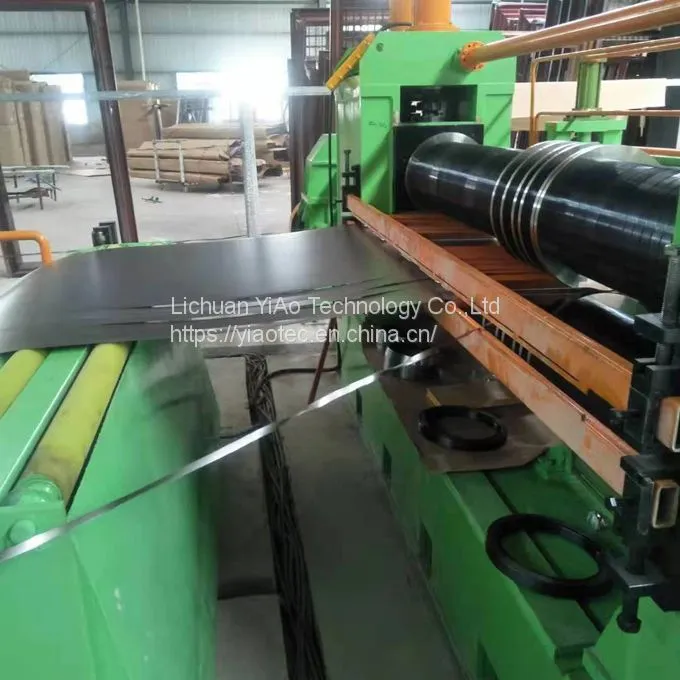

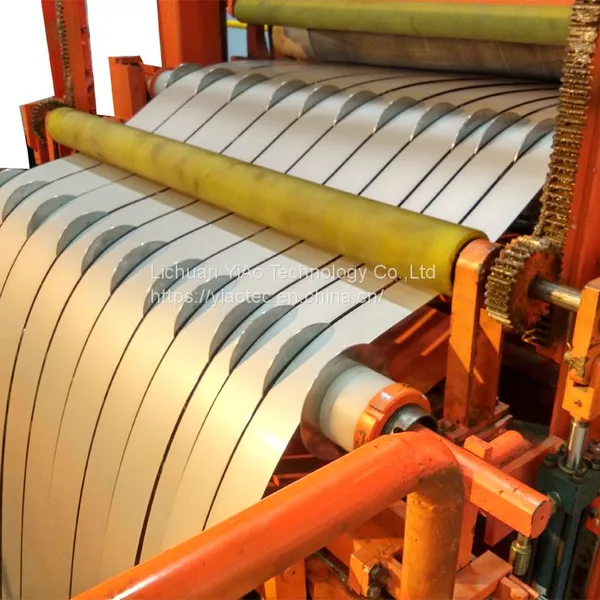

Metal coil slitting lines: Slitting lines are longitudinal cutting wide metal coils into more narrow coils. Usually slitting lines are consisted of four main parts: decoiler, slitter, tensioner and recoiler. Metal strip is fed from decoiler, through slitter for longitudinal cutting by two circular cutting blades, and then re-coiled in slitted mults on the recoiler through tensioner.
Our slitting lines can be designed and made based on stainless steel, carbon steel, silicon steel, GI, PPGI, brass, copper and aluminum; width range: 300~2000mm, thickness range: 0.2~16mm, weight range: 3~40tons
Slitting Line Layout
Application For:
· Stainless steel (All series) |
· Carbon steel(HR or CR) |
· Colored coil (PPGI) |
· Galvanized coil(GI) |
· Aluminum, Copper and Brass |
· Silicon steel |
Model List
Commodity |
2.0*650 |
2.0*1600 |
3.0*1250 |
9.0*1600 |
Raw material |
Carbon steel /stainless steel/ aluminum/copper/zinc/silver |
|||
Thickness |
0.2-2.0 |
0.2-2.0 |
0.3-2.75 |
2.0-9.0 |
Width |
150-650 |
500-1600 |
500-1250 |
800-1600 |
Inner diameter |
φ508/610 |
φ508/610 |
φ508/610 |
φ580/610/760 |
Outer diameter |
≤φ1500 |
≤φ1500 |
≤φ1500 |
≤φ2000 |
Coil Weight |
≤6 |
≤20 |
≤15 |
≤25 |
Width accuracy |
≤±0.05 |
≤±0.05 |
≤±0.05 |
≤±0.1 |
Slits |
≤16 |
≤32 |
≤12 |
≤12 |
Slits tolerance |
≥20 |
≥20 |
≥20 |
≥60 |
Speed |
≤180 |
≤200 |
≤180 |
≤40 |
Capacity |
-96 |
-240 |
-205 |
-265 |
Flood space |
11*4 |
22*7 |
22*6.5 |
28*10 |
Flow chart of slitting lines:
Loading coil→ decoiling→ pinching, leveling & shearing→ Looping→ guiding→ slitting→ rewinding waste→ looping→ tension→ recoilling→ unloading coils
Main devices:
Main Advantages:
Packaging & Shipping
Packaging & Shipping
We use standard packing for all steel coil slitting lines.
a) Sea transportation, Land transportation, and so on.
b) Please choose your convenient shipping method according your detail requirement.
c) The shipping freight is different based on different season; we will choose best and safest way according to your demand.
Delivery time:
a) Delivery time is 60-180 working days based on different machine
b) ODM 60-150 days after all info confirmed.
c) Depends on order quantity
d) According to the actual situation, appointment time of delivery.
Our honored customers list:
1) Jindal stainless limited (India)
2) Apollo tubes (India)
3) Suraj limited (India)
4) Raajratna& Raajtubes
5) BMW Mexco plant
6) Jindal Indonesia plant
7) Honda Auto
