mini hydraulic truck lifting crane 25ton in india
- 1000 per Month
- T/T Credit Card
Product Description

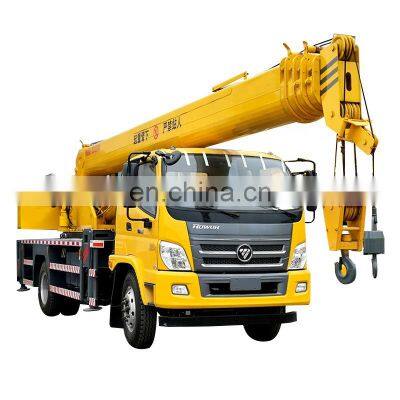

mini hydraulic truck lifting crane 25ton in india
The truck crane is a type of crane mounted on a common automobile chassis or a special automobile chassis, and its driving cab is separately provided from the hoisting operating room. The advantage of this type of crane is that it is maneuverable and transfer quickly. The disadvantage is that you have to support your legs when you work, you can't load, and you don't work on soft or muddy fields.
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.

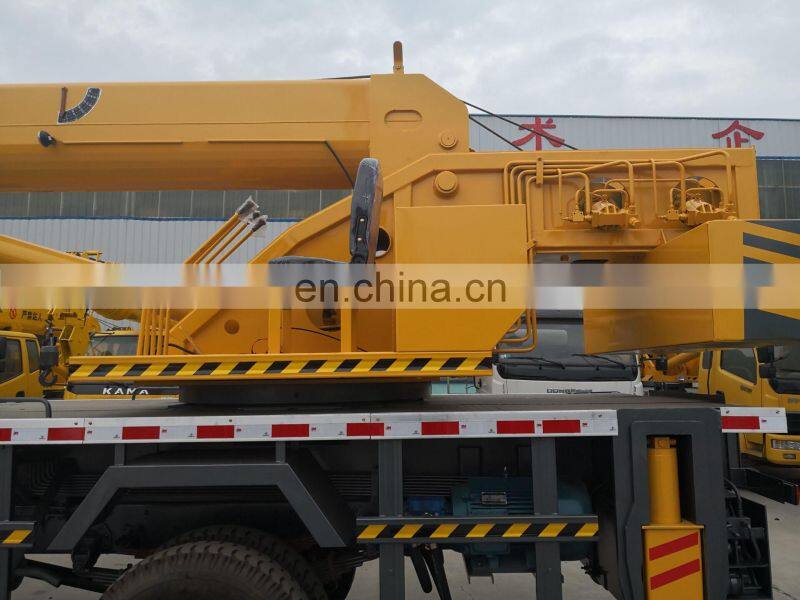

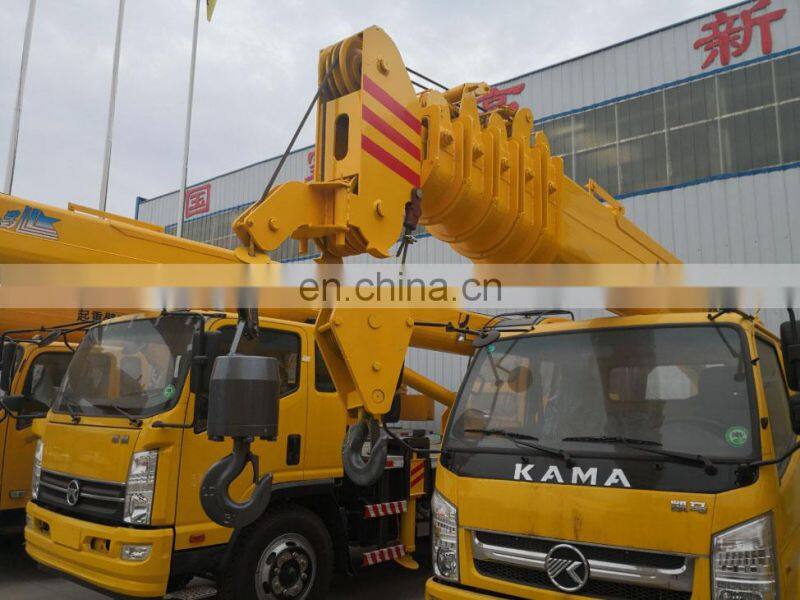

2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
Maximum rated starting weight | 25T |
Engine power | 196kw |
Axle | Front single bridge rear double bridge |
Tire | 1100-20 |
Wheelbase | 4.3 meters 5.7 meters |
Tread | 2.5 meters |
Brake | Air brake |
Driving direction | Power steering |
Basic ARM length | 10 m |
Number of large arms knots | 4 knots |
Longest arm length | 34 meters |
Maximum lifting height | 34 meters (from the ground) |
Maximum elevation angle of boom | 75 degrees |
Lifting arm Minimum elevation angle | 0.5 degrees |
Maximum rotation speed (empty | 2.4r/min |
Minimum rotation speed (full load): | 0.3 r/min |
legs | 5 full hydraulic legs |
Vertical span of legs (front and rear): | 5.55 meters |
Lateral span of leg (side): | 6.1 meters |
Length, Width and height | 13.5 meters 2.5 meters 3.5 meters |
Dual hoist | Double hydraulic winch hoist |
Jining Nicosail Machinery Co.,ltd,established in 2010, Integrates development and manufacturing in-house, Specializes in manufacturing Excavators, Truck cranes, Road rollers, Loaders and related products.
We are located in Jining city, Shandong province, Convenient water, land and air transportation.We have more than 200 employees, 20 technical R&D personnel, 8 engineers and 12 after-sales service personnel, Dedicated to strict quality control and thoughtful customer service, available to discuss your requirements and ensure full customer satisfaction.
In recent years, we Introduced advanced technology, imported advanced equipment, and also have an excellent production team and a complete quality assurance system, Our company promises: reasonable prices, short production time and satisfactory after-sales service.
We also have an excellent management team, experienced technical staffs and professional sales team to solve all problems you encountered before and after sales. In addition, we have obtained ISO9001:2015,CE, certificates, also have a good relationship with Shantui and Komatsu. Our products are exported to clients in such countries and regions as United States, Southeast Asia, Australia, Europe, Russia, the Middle East, Africa.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We hope to cooperate with you, Mutual development, mutual benefits.
