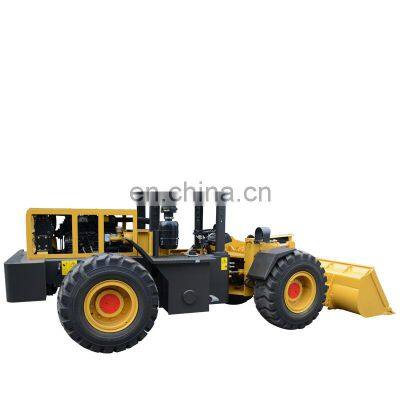

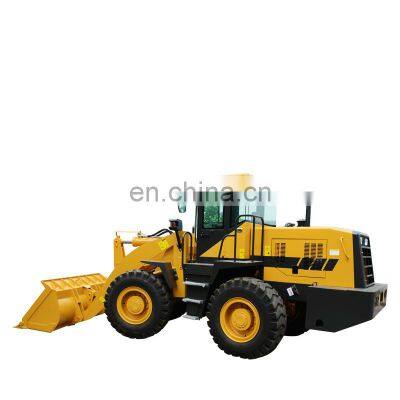

China Factory Outlet Wheeled ISO Certification With Cab Loader
Product overview:
The micro skid loader HY200 is a multi-functional construction engineering equipment. Its small body is easy to handle, and it can easily and quickly hook up a variety of different attachments to achieve various tasks. It is widely used in gardens, manufacturing, Construction sites, recycling, gardens, roads, buildings, farms and other industrial areas.
Product features:
1, Micro skid steer loader HY200 is easy to operate
Double handles for walking, lifting and tipping
Plunger motor
Four-wheel drive to adapt to various environments
Multiple forms of pedals for more convenient operation
Servo and standard operating modes
2, Micro skid steer loader HY200 is easy to maintain
The oil port is outside the vehicle body, which is convenient for replacing air filter, oil, machine filter and spark plug.
The rear guard is easy to take down and the upper cover can be opened
3, Micro skid steer loader HY200 can be equipped with a variety of attachments, and each model can be interchanged. At present, there are about 40 kinds of attachments, uniform quick-change quick-connect.
4, The famous brand engine, stable and reliable, three years guarantees
5, Micro skid steer loader HY200 has a variety of tires and track mode for selection, more adaptability.
6, HY200 mini skid loader body is narrower, only 800mm wide. It can pass through narrow strips and has a large fuel tank and lift.
7, Micro skid steer loader can do a large degree of simplified manual work, improve efficiency
8. Compared with similar products, it has a higher lifting height.
Product parameters:
Items |
HY200 |
||
|
Metric |
Imperial |
|
Rated power |
17.15 kW |
23 hp |
|
Fuel tank capacity |
27.45L |
6 UK gal |
|
Hydraulic oil tank capacity |
21 L |
||
Operating weight |
Standard weight |
900 kg |
1984.2 lb |
|
Increase counterweight (optional) |
1007 kg |
2220.1 lb |
Bucket capacity |
0.15m³ |
5.32ft³ |
|
Maximum traction |
5kN |
1124 Lbf |
|
Maximum lifting |
4.6kN |
1034 Lbf |
|
Travel speed |
0-8km/h |
0-4.97 mile/h |
|
Rated loading weight |
Standard weight |
200kg |
440.9 lb |
|
Increase counterweight (optional) |
260kg |
573.2 lb |
Minimum turning radius |
2030mm |
80inch |
|
Engine |
Briggs & Stratton vertical axis gasoline engine |
||
Engine cooling mode |
Air cooling |
||
Driving form |
|||
System pressure |
17MPa |
||
Battery |
Lead battery for starting,rated voltage 12V,36Ah. |
||
Tires (standard) |
20*10.00-10P3324P/TL Grass tire |
||
Tire inflation pressure |
22psi(about 1.56bar) |
||
Noise |
≤102dB(A) |
||

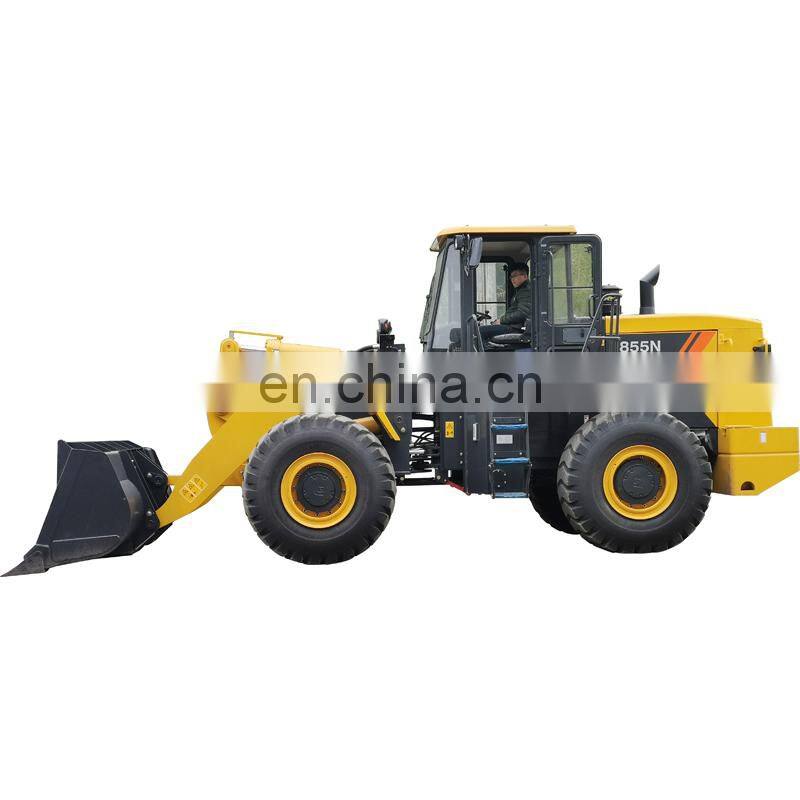

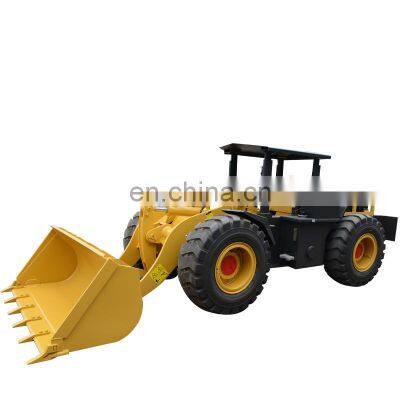

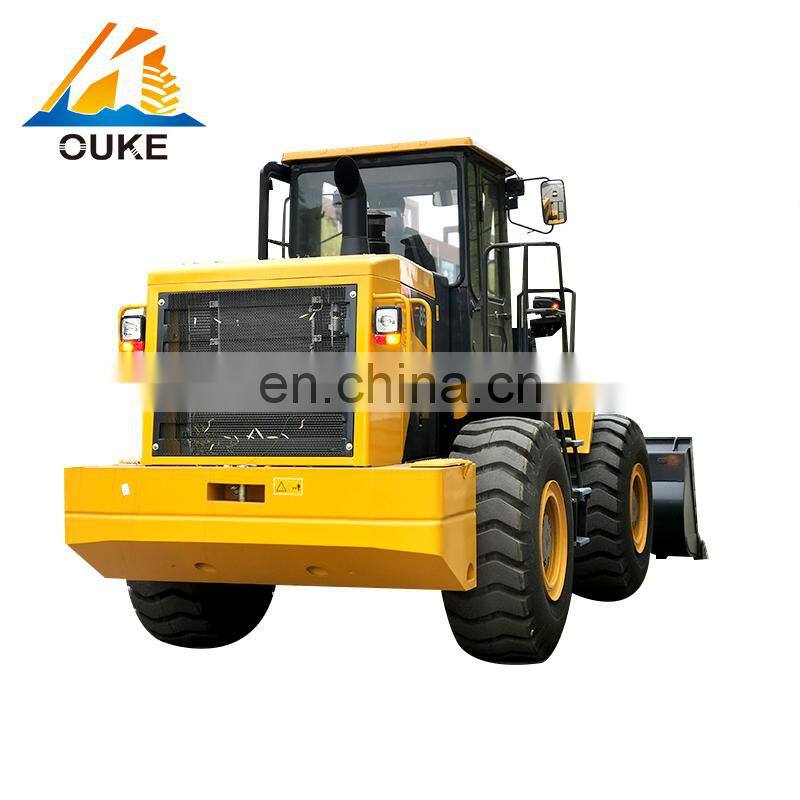

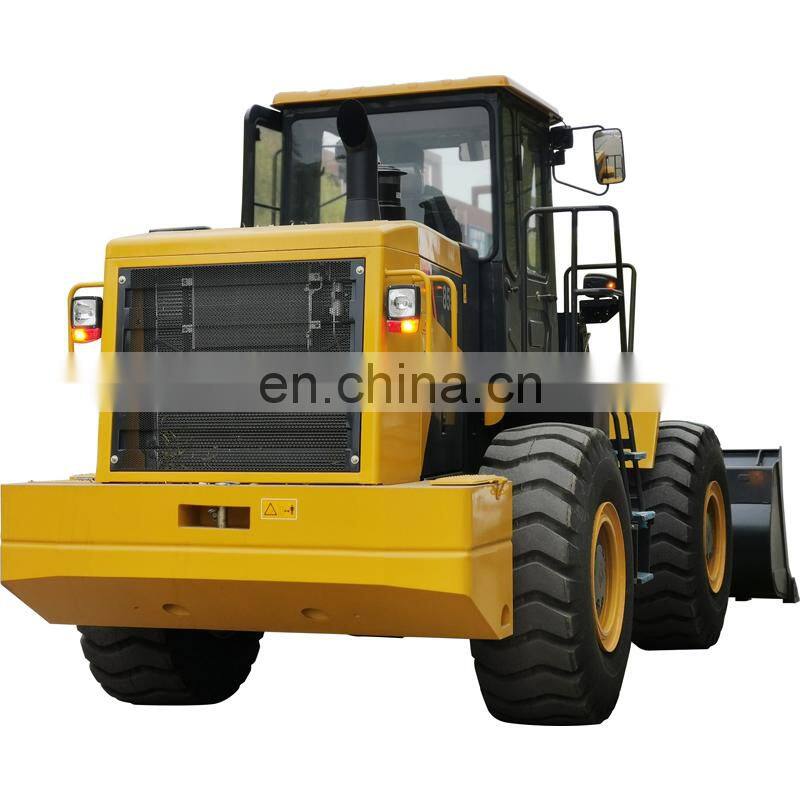

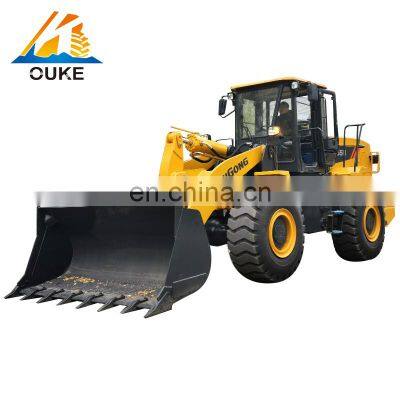

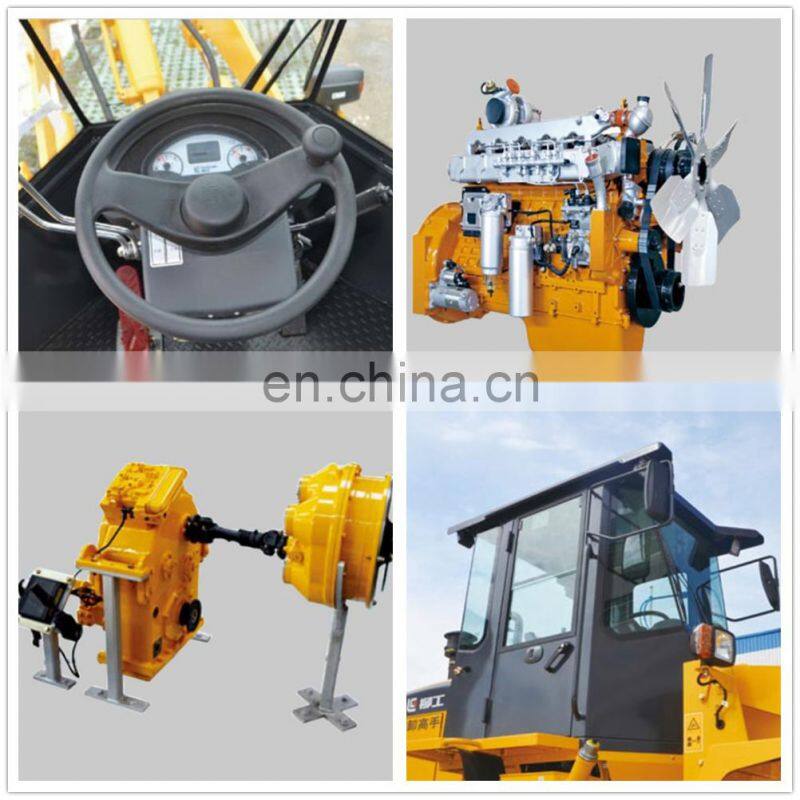

Product Picture:

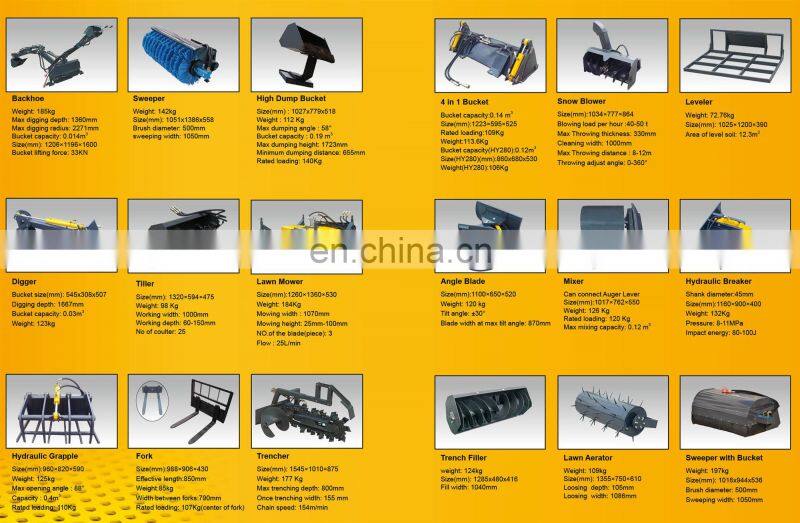

Attachments:
It can equip with 4 in1 bucket, snow blower, sweeper,backhoe, digger, tiller, hydraulic breaker, hydraulic grapple, trencher, forks and so on.
Packing and shipping:
Certification:

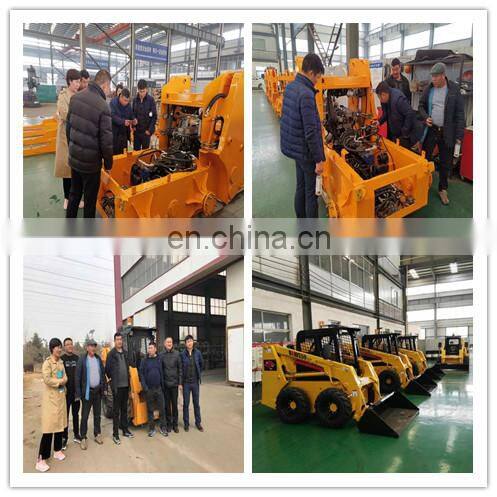

Customers visit:
Company information:
