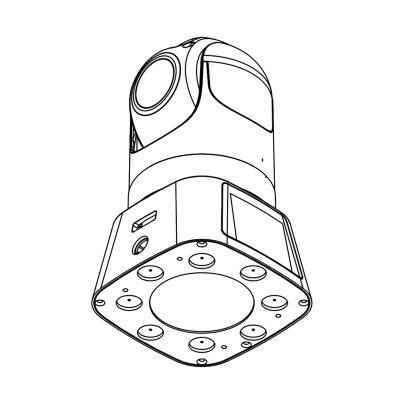

4G Intelligent Deployment of PTZ Live Cameras, Suitable for Safe Cities, Remote Education, Telemedic

Sensor

1/2.8″Progressive Scan CMOS

1/1.8″ProgressiveScan CMOS

1/2″ Progressive Scan CMOS

Highest pixel

2 million pixels

8 million pixels

2 million pixels

Resolution

1920(H)×1080(V)

3840(H)×2160(V)

1920(H)×1080(V)

Lens zoom

20 X optical, 16 X digital

23 X optical, 16 X digital

23 X optical, 16X digital

WDR

100dB

100dB

100dB

Lens

5.4-108mm

6.5-130mm

6.5-130mm

illumination

Color：0.001Lux；Black：0.0001Lux

Automatic control

5A: Auto white balance, focus, exposure,   noise reduction, contrast enhancement

S/N Rtio

≥50db

Shutter Time

1/32000s – 1/7.5s

extensions

lithium battery

Built-in 10Ah lithium battery, can work continuously for 10 hours

4G/WIFI

802.11a/b/g/n+4G full Netcom; optional WIFI function module

Face Detection

No

No

Can detect 64 faces at the same time

Face capture

No

No

support

Features

Network protocol

Onvif,IPv4,HTTP,FTP,RTSP,UPnP,DNS,NTP,RTP,TCP,UDP,IGMP,ARP, or RTMP

Video compression

H.265/ H.264

Multi-stream

Full HD +FULL D1

Rate mode

VBR/CBR

data storage

Automatic/manual recording, support TF card; use card type, single SD card storage can support 256G/standard without card

Mechanical behavior

Horizontal range

360°

Horizontal speed

0～80°/S

Vertical range

-30°～+90°

Vertical speed

0～45°/S

Presets

255

Cruise

6

Scanning/self-learning

8

Preplan/Watch

Support positioning/pre-plan/watch

Power failure recovery

support

Telephoto speed limit

support

IR LED

850nm infrared lamp; irradiation distance 80m

specification

temperature humidity

－35°C~＋55°C / 0～90% (no condensation)

Power

DC 16.8V/3A; built-in 10Ah lithium battery, maximum continuous working 10 hours

Protection

IP66

Size

266.5 (height) × 159 (diameter)

Weight

3.8kg
