Structure of wooden box packaging broken by hammer:

Hammer breaking is mainly composed of frame, rotor, grid screen and transmission device.

1. Rack: it is generally welded with steel plate, and the upper part is provided with feed inlet. Lining plate is laid at the part in contact with ore inside the rack to increase safety and safety.

2. Rotor: rotor is the main working part of hammer crusher. The utility model is composed of a main shaft, a hammer head and a hammer frame. The main shaft is the main part supporting the rotor, which bears large impact force.

3. Lattice screen: it has two functions: controlling the particle size of crushed products; Support the material to bear the impact and grinding of the hammer and break the material. The grate gap is in a downward diffusion shape, and the screen holes of the lower screen plate are larger than those on both sides, so the materials are easy to pass through and are not easy to block.

Maintenance and use of hammer crusher

1. After starting, the motor and crusher shall operate stably before feeding. The feeding shall be uniform without overload.

2. The materials entering the crusher shall meet the requirements of the process specification. If there are too large ores or wood block metals, they shall be selected before entering the crusher to prevent damage to the machine.

3. When it is found that the discharge particle size does not meet the requirements during operation, stop the machine to check the wear of the hammer and the lining plate and the belt tension. If it is found that the wear is serious, adjust the gap between the hammer head and the impact plate, or replace the parts.

4. During the production process, the discharge port shall not be blocked to avoid affecting the discharge.

5. During operation, check that the temperature rise of the bearing shall not exceed 35 ℃ and the bearing temperature shall not exceed 80 ℃.

6. Before stopping the machine, stop feeding and stop the machine only after the materials in the crushing chamber are discharged.

7. During use, lubricating grease shall be added frequently to reduce part wear. When the temperature rise of the bearing exceeds the requirements, stop the machine immediately, check the causes, and start the machine after troubleshooting.

8. Regular inspection and maintenance shall be carried out, especially the wear of striking hammer and impact plate, and vulnerable parts shall be replaced in time to ensure the normal operation of the machine.

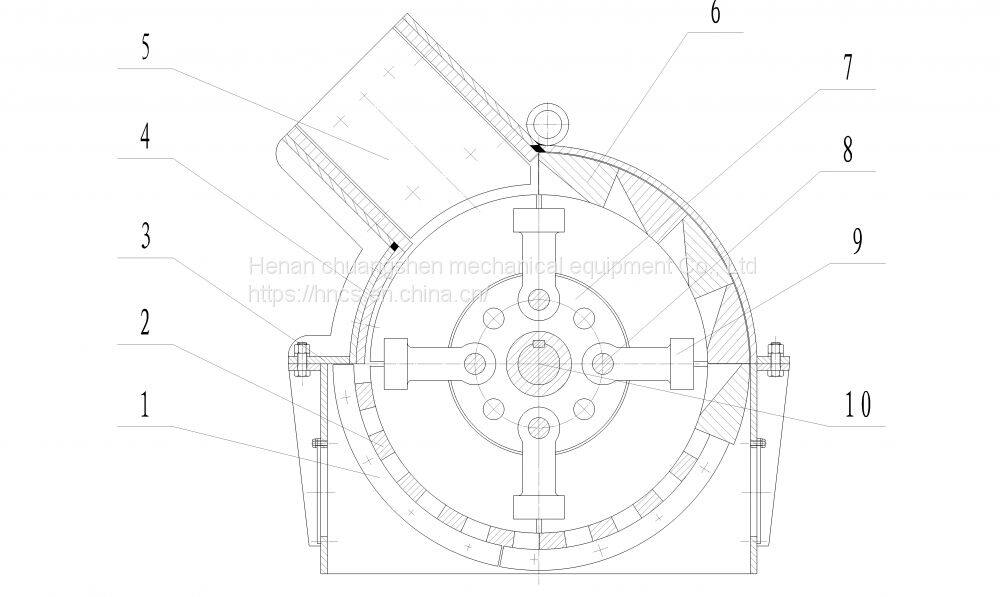

Outline drawing of hammer crusher:1、Support lining plate   2、screen bar   3、 casing   4、 bending lining plate   5、side lining plate   6、fish scale lining plate   7、 disc 8, pin shaft   9、hammer head   10、and rotor main shaft

Details of hammer broken vulnerable parts:

1、Hammer head   2、lining plate   3、disc   4、screen bar   5、bearing 6, pin shaft

Due to the large number of hammer broken models, please contact the customer service personnel when purchasing
