Standard Very Large Aperture Incremental Encoder JYZ144 JYZ145 JYZ180 JYZ260
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy-duty Incremental Encoder JYZZ78 JYZZ90NegotiableMOQ: 1 Piece -
Heavy-duty Incremental Encoder JYZZ90 JYZZ99NegotiableMOQ: 1 Piece
-
Heavy-duty Encoder JYZZB10NegotiableMOQ: 1 Piece
-
Small Incremental Encoder JYZ24S 25S 28S 32SNegotiableMOQ: 1 Piece
-
Small Incremental Encoder JYZ36NegotiableMOQ: 1 Piece
Features and Applications:

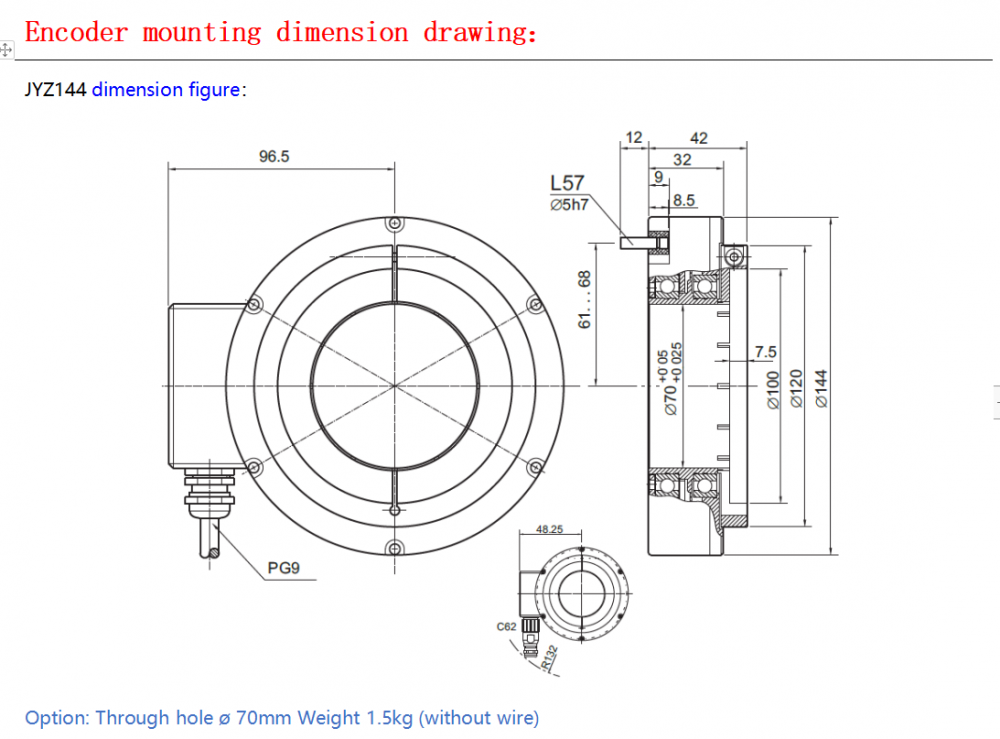

1.Large rugged incremental encoder with large aperture, maximum aperture 145mm
2.Through-hole encoder, aperture can be customized flexibly

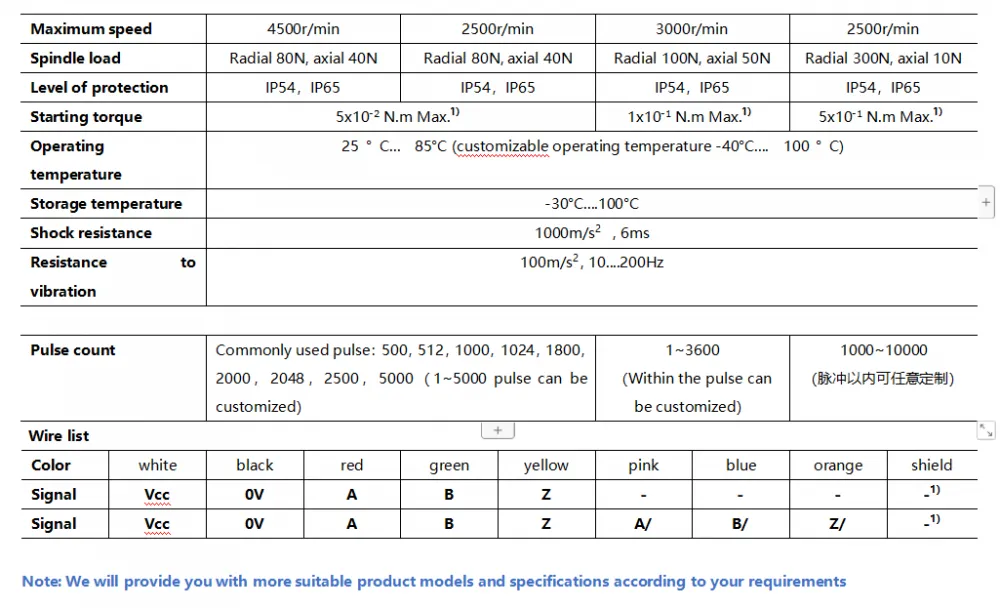

3.Pulse number up to 10000P/R, ultra high anti-interference performance
4.Polymer grating, excellent shockproof performance, protection grade up to IP65
5.Ideal for large motors, tractors, oil fields, ports, mining machinery and automation industries
