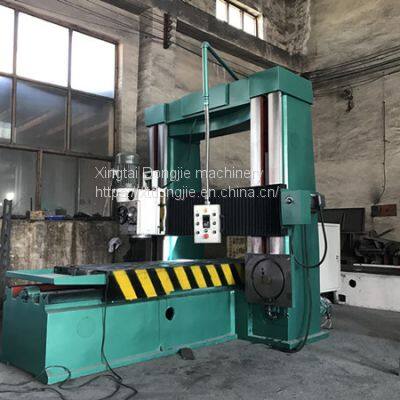

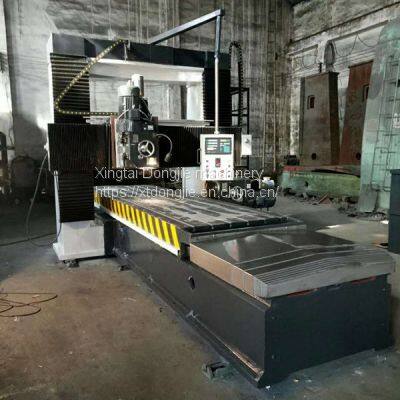

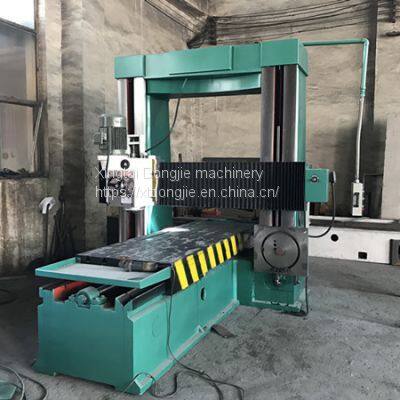

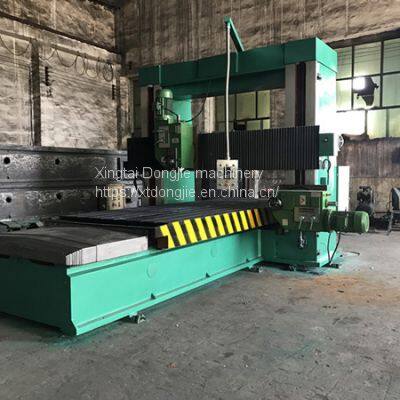

Gantry Milling Machine
Gantry milling machine, referred to as gantry milling, is a milling machine with portal frame and horizontal long bed. The gantry milling machine can use multiple milling cutters to process the surface at the same time, with high machining accuracy and production efficiency. It is suitable for processing the plane and inclined plane of large workpieces in batch and mass production. CNC gantry milling machine can also process spatial curved surface and some special parts.
It is divided into ordinary type and NC type. Some manufacturers have developed digital intelligent Dragon Gate milling with one key conversion between ordinary milling and NC milling, which is more flexible and practical.
project |
parameter |
Table area |
2100*800mm |
Maximum machining width |
1500mm |
Maximum machining height |
1600mm |
Table stroke |
3000mm |
Maximum machining height of side milling head |
1000mm |
Maximum machining width of side milling head |
1250mm |
Vertical milling head spindle dimension |
7：24NT50 |
Spindle dimension of side milling head |
7：24NT50 |
Spindle milling head speed |
75、105、150、210、300、420r/min |
Outer diameter of spindle end face |
128.57mm |
Spindle manual feed |
120mm |
Spindle automatic feed |
200mm |
Side milling head speed |
106、173、236、298、386、664r/min |
Beam lifting speed |
280mm/min |
Milling head rotation angle |
±45° |
Table rapid feed rate |
1200mm/min |
Cross feed speed of vertical milling head |
Frequency conversion adjustment |
Vertical milling head motor power |
7.5kw |
Side milling head motor power |
5.5kw |
Manual feed of side milling head |
200mm |
Table feed motor power |
4kw |
Beam lifting motor power |
0.75kw |
Beam translation motor power |
0.75kw |
Lubricating pump motor power |
0.55kw |
Milling cutter head diameter |
250 |
Complete models, support customization | |
