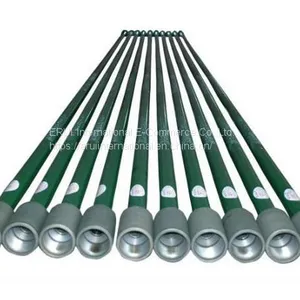

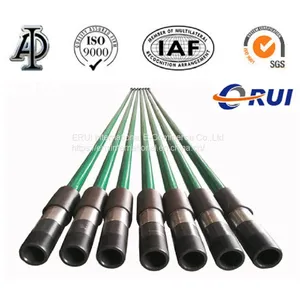

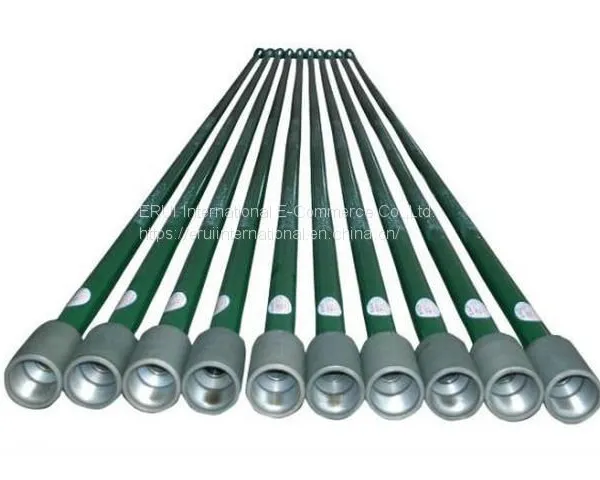

API 11ax Submerged Oil Rod Tubing Pump with Plunger

Name: API 11ax Submerged Oil Rod Tubing Pump with Plunger
Brand: ERUI
Price: USD $300 - 300 / Piece

FOB Price

USD $300 - $300 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T L/C
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ERUI	Place of Origin:	China	Material:	Carbon Steel
Certification:	API	Type:	Other, Sucker rod pump	Use:	Well Drilling
Processing Type:	Forging	Machine Type:	Drilling Tool

Product Description

API 11AX Oilfield Subsurface Sucker Rod Pump Tubing Pump For Oil Well Drilling

Description of sucker rod pump:
The Sucker rod pump is connected to the sucker rod after being assembled on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and are suitable for deeper wells.

Rod pump:
Rod pump is also referred to as "insert pump" as its plunger is attached to, and moves up and down with the sucker rod string. It is suitable for reducing the time of workover for deep well as it is not necessary to pull all the tubing out of the wellhole when checking the pump, which makes the operation quicker and the service life of tubing longer. The rod pump is in a state of "free-hanging", so it is suitable for deviated wells. According to seating mode, the rod pump can be divided into two types: cup hold-down and mechanical hold-down. According to anchored position, the pump can be divided into top hold-down pumps and bottom hold-down pumps which include stationary barrel and traveling barrel types.
Specifications Of Rod Pumps:

Model	Nominal Dia. mm(in)	Plunger Length m(ft)	Stroke m	Pump Constant m3/d	Tubing And Thread	In Sucker Rod
20-125RHAC/M	32(1.25)	1.2-1.8 (4-6)	≤7.5	1.14	2?	¾
25-150RHAC/M	38(1.50)			1.64	2?	¾
25-175RHAC/M	44(1.75)			2.24	2?	¾
30-225RHAC/M	57(2.25)			3.69	3½	¾
20-125RHBC/M	32(1.25)			1.14	2?	¾
25-150RHBC/M	38(1.50)			1.64	2?	¾
25-175RHBC/M	44(1.75)			2.24	2?	¾
30-225RHBC/M	57(2.25)			3.69	3½	¾
20-125RHTC/M	32(1.25)			1.14	2?	¾
25-150RHTC/M	38(1.50)			1.64	2?	¾
25-175RHTC/M	44(1.75)			2.24	2?	¾
30-225RHTC/M	57(2.25)			3.69	3½	¾

Tubing Pump:
For the tubing pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with a sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump), and THD pump.

Sucker rods are designed for the transmission of translational or rotational motion from ground drive to the well pump for oil extraction. The rods are round cross-section bars whose ends are provided with upset heads and thread.

The rods can be rigged with various centralizers, to protect rods, couplings, and oil well tubing from wear; rods can be additionally provided with mobile scrapers for removal of paraffin deposits. "D" class sucker rods (as per API specification) display enhanced strength and anticorrosion properties, and are highly competitive in terms of quality with the products of world-famous manufacturers.

Specifications Of Tubing Pumps:

Model	Nominal Dia. mm(in)	Plunger Length m(ft)	Stroke m	Pump Constant m3/d	Tubing And Thread	In Sucker Rod
20-125TH	32(1.25)	1.2-1.8 (4-6)	0.6-7.3	1.14	2?NU/EU	¾
25-125TH	32(1.25)		0.6-7.3	1.14	2?NU/EU	¾
20-150TH	38(1.50)		0.6-7.3	1.64	2?NU/EU	¾
25-150TH	38(1.50)		0.6-7.3	1.64	2?NU/EU	¾
20-175TH	44(1.75)		0.6-7.3	2.24	2?NU/EU	¾
25-175TH	44(1.75)		0.6-7.3	2.24	2?NU/EU	¾
25-225TH	57(2.25)		0.6-7.3	3.69	2?NU/EU	¾
30-275TH	70(2.75)		0.6-7.3	5.50	3½NU/EU	?
35-325TH	83(3.25)		0.6-7.3	7.70	4NU/EU	?
40-375TH	95(3.75)		0.6-7.3	10.26	4½NU/EU	1

Company Information:

ERUI International E-commerce Co., Ltd is a professional supplier of various oilfield oil extraction equipments since 2016. We provide products with certificates of API 11E, API 11B, API 11AX, ISO 9001 and ISO 14001, etc.

Our products mainly include:
1. Pumping Unit
2. Tubing Pump/ Rod Pump
3. Sucker Rod

ERUI International has many years of export experience and 57 subsidiaries all over the world, with more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
