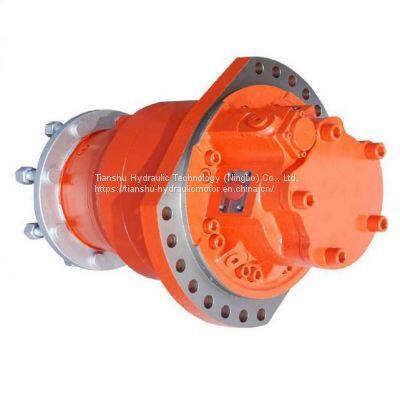

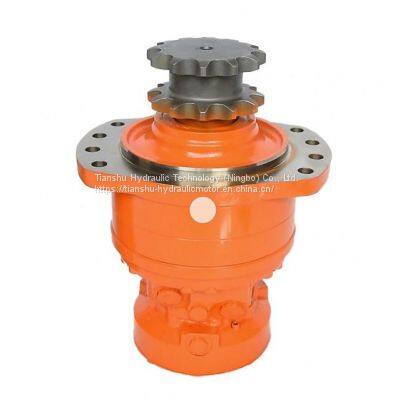

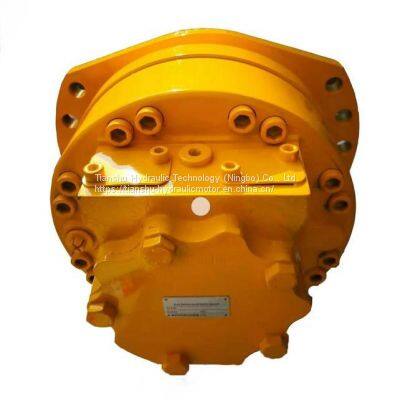

Professional Factory of Hydraulic Motors Poclain Ms Series Good Price for Sale.

Name: Professional Factory of Hydraulic Motors Poclain Ms Series Good Price for Sale.
Brand: Tianshu
Price: CNY $2000 - 20000 / Set

FOB Price

CNY 2000 - 20000 / Set

1 Set(Min.Order)

Product Details

Brand Name:

Tianshu

Place of Origin:

China

Model Number:

Ms05/08/11/25/35/83/125

Features of the technical performance below :

Displacement Group	6	8	0	1	2
Displacement (ml/r)	260	376	468	514	560
Theoretical Torque at 10Mpa (N.m)	413	598	744	817	890
Rated Speed (r/min)	160	160	125	125	125
Rated Pressure (Mpa)	25	25	25	25	25
Rated Torque (N.m)	850	1200	1500	1650	1800
Max. Pressure (Mpa)	31.5	31.5	31.5	31.5	31.5
Max. Torque (N.m)	1050	1500	1850	2050	2250
Speed Range (r/min)	0-200	0-200	0-200	0-200	0-160
Max. Power (kw)	Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW

MSE05

Displacement Group	8	0	1	2	3
Displacement (ml/r)	530	625	688	750	820
Theoretical Torque at 10Mpa (N.m)	843	994	1094	1193	1304
Rated Speed (r/min)	100	100	100	80	80
Rated Pressure (Mpa)	25	25	25	25	25
Rated Torque (N.m)	1700	2050	2250	2450	2650
Max. Pressure (Mpa)	31.5	31.5	31.5	31.5	31.5
Max. Torque (N.m)	2100	2500	2750	3000	3300
Speed Range (r/min)	0-160	0-160	0-160	0-125	0-125
Max. Power (kw)	Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW
