Garden 1.2mm Soft Copper Coated 20GA BWG22 Loop Tie Wire
- 200 Ton / Tons per Month
You May Like
Product Details
Place of Origin | China | Material | Other, Q195/Q235/SAE1006/SAE1008 | |
Application | Construction Wire Mesh | Material | Galvanized Iron Wire |
Product Description

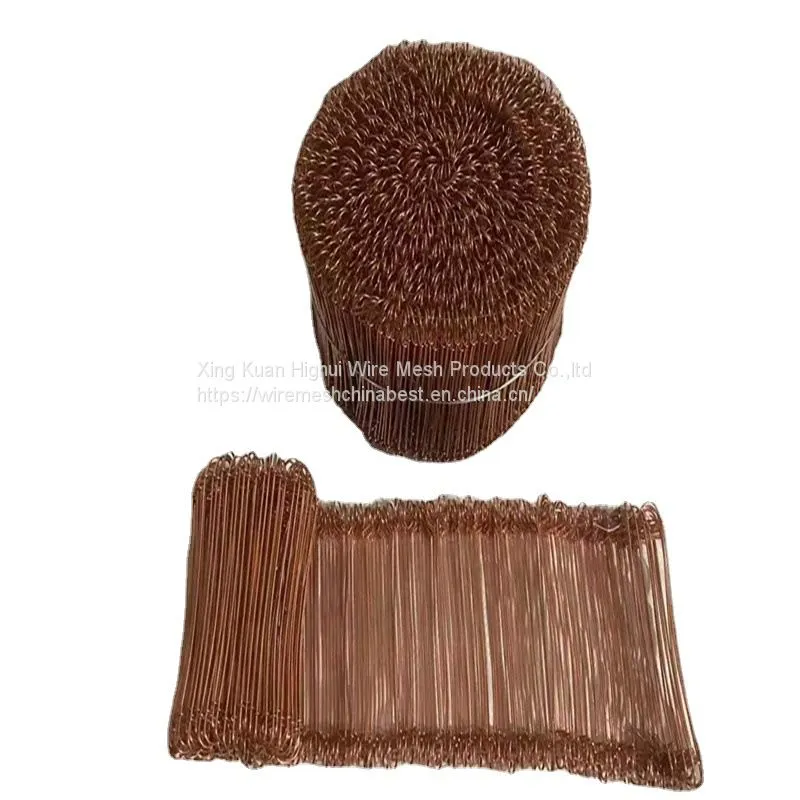

Garden 1.2mm Soft Copper Coated 20GA BWG22 Loop Tie Wire
Copper Tie Wire introduction:
Copper Tie Wire is a kind of metal wire mainly used for binding and sealing. For example, it can be used to bundle up gunny sacks. It is also often used to bind weaving bags and seal sacks, or for the purpose of bundling in construction or for daily uses. Double loop wire tie is very easy to use. You just need to hook up the double loop at two ends of the loop tie wire using a loop tie wire tool with hooks, and then twist the wire in one direction. It is easy to operate and simply. Immediately increase efficiency, reduce pollution.
Material:copper coated wire Copper wire
Wire diam.: 0.5mm---2.0mm
Wire gauge: BWG6 to BWG20
Lengths: 3" up to 10"
Packaging : 5,000/roll 4,000/roll 2,500/roll ,2000/roll,1,000/roll
Rolls packed by woven bag then with pallet.
We have the specific production workshop of Wire Ties. We can manufacture all of sizes with different finishes. We will also custom-produce loops and lengths to your specifications.
We have became the biggest Wire Ties Manufacturer in China.
The sample can supply free, if you want to know the quality, I am glad to help
Copper Tie Wire specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Copper Tie Wire Usage / Application
Used to bind recycling corrugated cardboard material.
In the use of recycling used clothing and rags.
In the use of recycling scrap metal, such as aluminum and copper.
Copper Tie Wire Packaging Details
Each bundle is wrapped with recyclable plastic bag, which can protect it from abrasion.
All single loop tie wires have head bagged for protection.
Products can be delivered in straight bundles or in coiled form.
Pallet package can prevent the product from being damaged in the process of storage and transportation.
Copper Tie Wire Features
easy to bend and operate, good corrosion resistance, high working efficiency, fast tying, etc.
Technical principle of Copper Tie Wire:
Because the loop tie wire is suitable for binding, the raw materials are all annealed at high temperature, so the product has better tensile strength and elongation, and the user can have better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment of galvanized wire products. The specifications of galvanized wire should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be clean and tidy. How much is the galvanized wire? The production shall be carried out according to scientific operation methods. The operators shall wear the required clothes.If it is hot-dip galvanized wire products, we must do a good job in passivation treatment, will be able to effectively prevent discoloration, prolong Discoloration method to do in place, can solve the problem of discoloration.
Copper Tie Wire Process :
First, the raw material is wire rod Q195, which is processed and thinned. In the second drawing process, the wire diameter required by the customer is reached. At this time, it is about 100kg / plate. Put the wire in the heating furnace for heating and annealing treatment.
