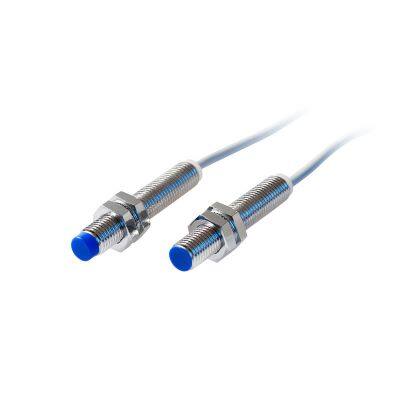

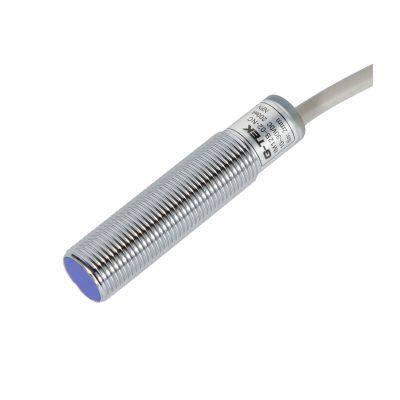

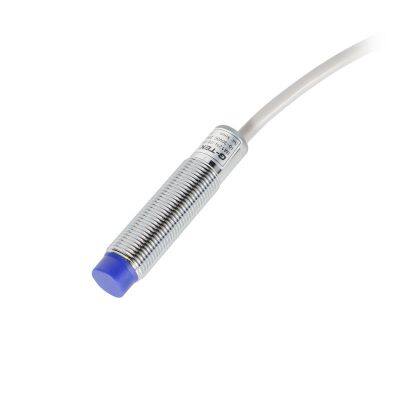

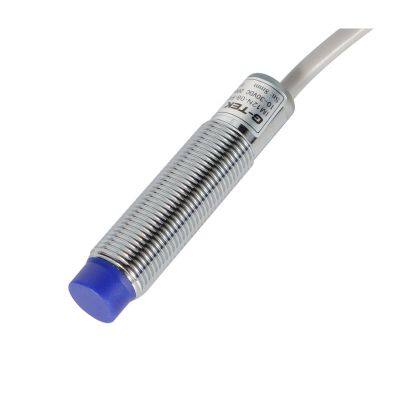

Help CenterPNP Capacitive Circular Inductive Proximity Sensor for Metal Detectors
Related Products
-
Inductive Capacitive Metal Head Proximity Sensor for Turnstile Access ControlUS$ 9 - 10MOQ: 10 Sets -
Wholesale Metal Head Inductive Cylinder Type Proximity Sensor ExportersUS$ 9 - 10MOQ: 10 Sets
-
Circular Inductive Smart Proximity Switch for Security Optical Tandem TurnstilesUS$ 9 - 10MOQ: 10 Sets
-
Metal Head Inductive Proximity Switch for Flap Barrier Turnstile GateUS$ 9 - 10MOQ: 10 Sets
-
Inductive Flushed Capacitive Proximity Sensor for Elevator Passenger SafeguardingUS$ 9 - 10MOQ: 10 Sets
Parameter | ||
Proximity Switch | IM12 DC3-wires standard distance | |
Standard detection object | 12mm×12mm×1mm (Fe360 carbon steel) | |
Detection distance | embedded | 2mm±10% |
exposed | 4mm±10% | |
Hysteresis | ≤15% | |
Set distance | embedded | 0-1.6mm |
exposed | 0-3.2mm | |
Supply voltage | 10~30V DC | |
Un-load current | Max.5mA | |
Voltage drop | Max.1.4V | |
Switch frequency | embedded | 500Hz |
exposed | 500Hz | |
Control output | Transistor output, open collector | |
Resistive load | Max.200mA | |
Insulation resistance | Min.20MΩ(at 500VDC/1000VDC) | |
Withstand voltage | 500VDC/1000VDC | |
Anti-vibration | ≤10~55Hz sweep frequency(Range:1mm) | |
Shock resistance | Detection head:300m/s² about30G，housing:1000m/s² about100G | |
Indicator | Operation indicator: yellow | |
Protection circuit | Over voltage 、short circuit and reverse polarity protection | |
Ambient temperature | －25℃~70℃ (No-freezing) | |
Storage temperature | －30℃~80℃ (No-freezing) | |
Humidity | 35~95%RH | |
Housing material | Cr plated on CU | |
Thread specification | M12×1 | |
Cable | Φ4, 3×0.2mm² | |
Protection rating | IP67 (IEC) | |
Model | ||
Installment | Product Model | Output Mode |
Embedded type | IM12B-02-NO | NPN Normal open(NO) |
IM12B-02-NC | NPN Normal close(NC) | |
IM12B-02-PO | PNP Normal open(PO) | |
IM12B-02-PC | PNP Normal close(PC) | |
Exposed type | IM12N-04-NO | NPN Normal open(NO) |
IM12N-04-NC | NPN Normal close(NC) | |
IM12N-04-PO | PNP Normal open(PO) | |
IM12N-04-PC | PNP Normal closse(PC) | |
