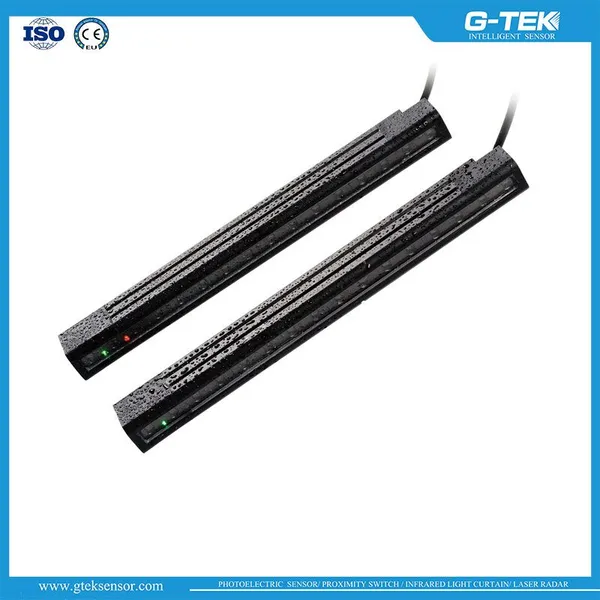

Multi-Beam Infrared Waterproof Measurement Light Curtain Sensor with CE Certificate

Light Curtain

LSMC

Supply voltage

24 VDC±20%

Supply Current

≤150mA

Distance

2~10m

Space between optical   axis

10 series: 10mm

20 series: 20mm

40 series: 40mm

80 series: 80mm

Control output

Switching output

Switching   output, Detection output 、Alarm output；

Current＜150mA(30V DC),NPN、PNP for selecting

Series output

RS485 series   connector，baud rate19200，half-duplex asynchronous communication；1 start-bit、8 date bits、1 stop bit，no parity bit

Work mode

Normal Open (O)、Normal Close ( C ) for selecting

Indicator

Emitter

Power indicator   (Green)、Fault indicator (Yellow)

Receiver

Power   indicator(Green)、Fault   indicator(Yellow)、

Shelter   indicator(Red)、light beam   strength(blue、3)

Response time

1.5~18.5ms (on product   model basis)

Communication   mode

Line synchronous

Work Temperature

-40℃~75℃

Work Humidity

Max.0~95%RH

Anti-interference

Sunlight:   Max80000Lux; incandescent lamp: 3000Lux

Housing   Material

Aluminium alloy   oxydic black housing，glass window

Protection rate

IEC IP65

Model

Detection   range(m)

Mini-detection

object(mm)

Light beams

quantity

Detection

Height(mm)

Response

time( m s)

Product Length(mm)

LSMC10032□□□□

2~10m

15mm

32

320

3.5ms

325

LSMC10048□□□□

48

480

5.0ms

485

LSMC10064□□□□

64

640

6.5ms

645

LSMC10080□□□□

80

800

8.0ms

805

LSMC10096□□□□

96

960

9.5ms

965

LSMC10112□□□□

112

1120

11.0ms

1125

LSMC10128□□□□

128

1280

12.5ms

1285

LSMC10144□□□□

144

1440

14.0ms

1445

LSMC10160□□□□

160

1600

15.5ms

1605

LSMC10176□□□□

176

1760

17.0ms

1765

LSMC10192□□□□

192

1920

18.5ms

1925

Model

Detection   range(m)

Mini-detection

object(mm)

Light beams

quantity

Detection

Height(mm)

Response

time( m s)

Product Length(mm)

LSMC20016□□□□

2~10m

26mm

16

320

2.0ms

325

LSMC20024□□□□

24

480

2.5ms

485

LSMC20032□□□□

32

640

3.5ms

645

LSMC20040□□□□

40

800

4.0ms

805

LSMC20048□□□□

48

960

5.0ms

965

LSMC20056□□□□

56

1120

5.5ms

1125

LSMC20064□□□□

64

1280

6.5ms

1285

LSMC20072□□□□

72

1440

7.0ms

1445

LSMC20080□□□□

80

1600

8.0ms

1605

LSMC20088□□□□

88

1760

9.0ms

1765

LSMC20096□□□□

96

1920

9.5ms

1925

Model

Detection   range(m)

Mini-detection

object(mm)

Light beams

quantity

Detection

Height(mm)

Response

time( m s)

Product Length(mm)

LSMC40008□□□□

2~10m

50mm

8

320

2.0ms

325

LSMC40012□□□□

12

480

2.5ms

485

LSMC40016□□□□

16

640

3.5ms

645

LSMC40020□□□□

20

800

4.0ms

805

LSMC40024□□□□

24

960

5.0ms

965

LSMC40028□□□□

28

1120

5.5ms

1125

LSMC40032□□□□

32

1280

6.5ms

1285

LSMC40036□□□□

36

1440

7.0ms

1445

LSMC40040□□□□

40

1600

8.0ms

1605

LSMC40044□□□□

44

1760

9.0ms

1765

LSMC40048□□□□

48

1920

9.5ms

1925

Model

Detection   range(m)

Mini-detection

object(mm)

Light beams

quantity

Detection

Height(mm)

Response

time( m s)

Product Length(mm)

LSMC80008□□□□

2~10m

90mm

8

640

1.5ms

645

LSMC80012□□□□

12

960

1.8ms

965

LSMC80016□□□□

16

1280

2.0ms

1285

LSMC80020□□□□

20

1600

2.3ms

1605

LSMC80024□□□□

24

1920

2.5ms

1925
