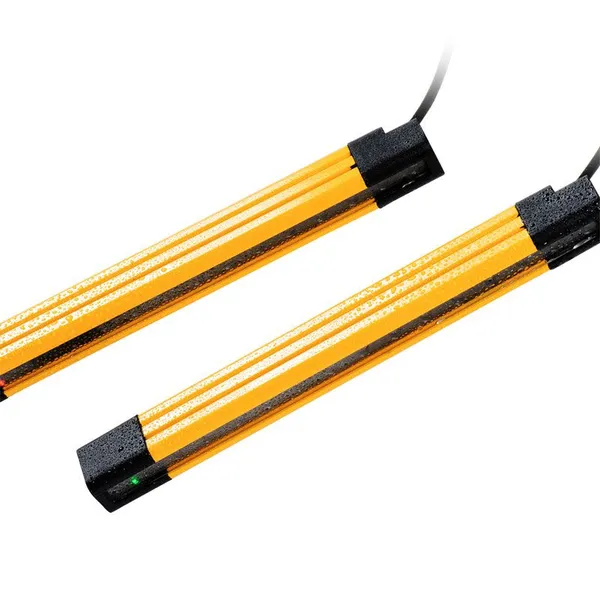

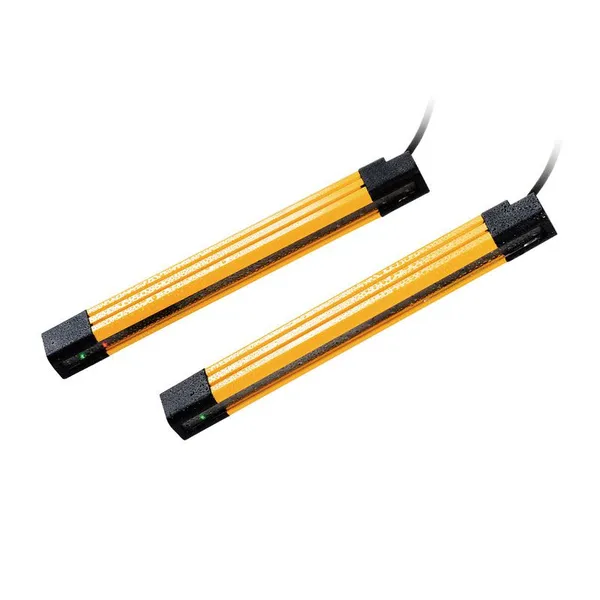

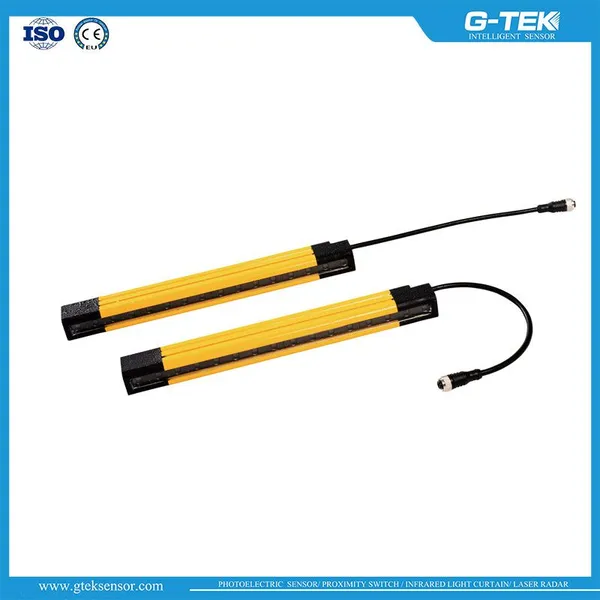

Help CenterSafety Light Curtain Sensor for Machinery Carrying Equipment With CE
Related Products
-
NPN Best Fast Response Waterproof Safety Light Barrier Curtain SensorUS$ 150 - 250MOQ: 1 Set -
Infrared Safety Light Barrier Curtain Sensor for Security and ProtectionUS$ 150 - 250MOQ: 1 Set
-
Safety Light Barrier Curtains Photo Sensor With Fast ResponseUS$ 150 - 250MOQ: 1 Set
-
Waterproof Multi-Beam Infrared Safety Light Barrier Sensor With CE CertificateUS$ 150 - 250MOQ: 1 Set
-
Waterproof Safety Light Barrier Curtain Sensor for Machinery Transmission EquipmentUS$ 150 - 250MOQ: 1 Set
Technical Parameters | |
Light Curtain |
LSA |
Supply voltage |
24 VDC±20% |
Supply Current |
≤300mA |
Consumption |
≤5W |
Delay on |
2s |
Detection distance |
As Mode information |
|
Space between optical axis |
10mm20mm40mm80mm |
Effective aperture |
±2.5°@3m |
Protection rate |
IEC IP65 |
Communication mode |
Optical synchronous |
|
Standard |
IEC 61496 standard，meet to Type4 |
ISO 13849-1 standard，meet to PLe | |
IEC 61508，IEC62061，meet to SIL3 | |
Work environment |
Temperature: -25℃~50℃; Storage: -40℃~75℃; Humidity: 15~95%RH; Anti-light interference: ＞10000Lux; Vibration resistance: 5g, 10~55Hz(EN 60068-2-6); Impact resistance: 10g, 16ms(EN 60068-2-29); insulation resistance: ＞100MΩ; Residual ripple voltage: 4.8Vpp; |
Connector |
M12，6 pins(Emitter)，8 pins(Receiver) |
Emitter & Receiver Parameters | ||
Emitter light |
Infrared light 850nm |
|
|
Output Mode |
Emitter |
Alarm output，transistor PNP/NPN for selecting; output current＜150mA(30V DC) |
Receiver |
2 OSSD output，PNP NC ，short-circuit protection，Cross circuit monitoring，output current |
|
Indicator |
See indicator instruction |
|
Response time |
3.2~51.2ms(on product model basis) |
|
Switch voltage |
Voltage drop：≤1.5V; cutoff voltage: ≤1.2V |
|
OSSD Test |
Pulse width：200~300ms pulse cycle：50~100ms |
|
Load |
capacitance：30nF， inductance：2.2H |
|
Resistance |
Device and load resistance：2.5Ω Power cable resistance: ≤10Ω |
|
TEST input |
Active high * |
|
RESET input |
Active high* (manual reset or automatic reset) |
|
EDMSE input |
Active high * |
|
EDM input |
10~30V DC，current＜10mA |
|
LSA10 series | ||||||
Model |
Detection distance(m) |
Resolution ratio (mm) |
Light beams quantity |
Safe height (mm) |
Response time( m s) |
Product Length(mm) |
LSA10032 |
0.5~6m |
15mm |
32 |
320 |
9.1 |
325 |
LSA10048 |
48 |
480 |
13.4 |
485 |
||
LSA10064 |
64 |
640 |
17.6 |
645 |
||
LSA10080 |
80 |
800 |
21.8 |
805 |
||
LSA10096 |
96 |
960 |
26.0 |
965 |
||
LSA10112 |
112 |
1120 |
30.2 |
1125 |
||
LSA10128 |
128 |
1280 |
34.4 |
1285 |
||
LSA10144 |
144 |
1440 |
38.6 |
1445 |
||
LSA10160 |
160 |
1600 |
42.8 |
1605 |
||
LSA10176 |
176 |
1760 |
47.0 |
1765 |
||
LSA10192 |
192 |
1920 |
51.2 |
1925 |
||
LSA20 series | ||||||
Model |
Detection Distance(m) |
Resolution ratio (mm) |
Light beams quantity |
Safe height (mm) |
Response time( m s) |
Product Length(mm) |
LSA20016 |
0.5~8m |
26mm |
16 |
320 |
5.1 |
325 |
LSA20024 |
24 |
480 |
7.1 |
485 |
||
LSA20032 |
32 |
640 |
9.1 |
645 |
||
LSA20040 |
40 |
800 |
11.3 |
805 |
||
LSA20048 |
48 |
960 |
13.4 |
965 |
||
LSA20056 |
56 |
1120 |
15.5 |
1125 |
||
LSA20064 |
64 |
1280 |
17.6 |
1285 |
||
LSA20072 |
72 |
1440 |
19.7 |
1445 |
||
LSA20080 |
80 |
1600 |
21.8 |
1605 |
||
LSA20088 |
88 |
1760 |
23.9 |
1765 |
||
LSA20096 |
96 |
1920 |
26.0 |
1925 |
||
LSA40 series | ||||||
Model |
Detection distance(m) |
Resolution ratio (mm) |
Light beams quantity |
Safe height (mm) |
Response time( m s) |
Product Length(mm) |
LSA40008 |
0.5~8m |
46mm |
8 |
320 |
3.2 |
325 |
LSA40012 |
12 |
480 |
4.2 |
485 |
||
LSA40016 |
16 |
640 |
5.1 |
645 |
||
LSA40020 |
20 |
800 |
6.1 |
805 |
||
LSA40024 |
24 |
960 |
7.1 |
965 |
||
LSA40028 |
28 |
1120 |
8.1 |
1125 |
||
LSA40032 |
32 |
1280 |
9.1 |
1285 |
||
LSA40036 |
36 |
1440 |
10.2 |
1445 |
||
LSA40040 |
40 |
1600 |
11.3 |
1605 |
||
LSA40044 |
44 |
1760 |
12.3 |
1765 |
||
LSA40048 |
48 |
1920 |
13.4 |
1925 |
||
LSA80 series | ||||||
Model |
Detection distance(m) |
Resolution ratio (mm) |
Light beams quantity |
Safe Height(mm) |
Response time( m s) |
Product Length(mm) |
LSA80008 |
0.5~8m |
86mm |
8 |
640 |
3.6 |
645 |
LSA80010 |
10 |
800 |
4.2 |
805 |
||
LSA80012 |
12 |
960 |
4.8 |
965 |
||
LSA80014 |
14 |
1120 |
5.4 |
1125 |
||
LSA80016 |
16 |
1280 |
6.1 |
1285 |
||
LSA80018 |
18 |
1440 |
6.8 |
1445 |
||
LSA80020 |
20 |
1600 |
7.5 |
1605 |
||
LSA80022 |
22 |
1760 |
8.1 |
1765 |
||
LSA80024 |
24 |
1920 |
8.8 |
1925 |
||
