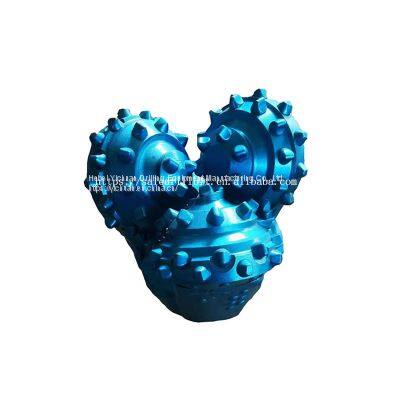

Help CenterIadc 537 Sealed Bearing Tci Tricone Bit 114mm Used for Water Well Drilling
Related Products
-
26" IADC537 TCI Tricone Bit for Well DrillingUS$ 16050 - 16100MOQ: 1 Piece -
8 3/4" Milled Steel Tooth Tricone Bits for Well Drilling EquipmentUS$ 690 - 700MOQ: 1 Piece
-
9 1/2 Inch Tungsten Carbide Insert (TCI) Tricone Bit for Water Well Rptary DrillingUS$ 1280 - 1290MOQ: 1 Piece
-
API 8 1/2" IADC 537 Seal Bearing TCI Tricone BitUS$ 770 - 780MOQ: 1 Piece
-
Well Drilling Drill Bit Tricone Bit 5 1/2 Inch IADC537 Carbide Drill Bits With Factory Directly SellingUS$ 610 - 615MOQ: 1 Piece
Basical Parameter | |
Bit Size |
4 1/2"(114MM) |
IADC Code |
537 |
Connection |
2 7/8"API reg pin |
Rotary Speed(rpm) |
110~40 |
Weight on Bit(KN/MM) |
0.5~1.05 |
Formation |
Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. |
1)Cutting Structure
The wear-resisitance of the teethy is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit. The durability of premium tngsten carbide inserts is improved with new formulas and new techniques for insert bit.
2)Gauge Structure
Multipe gauge protection with gauge trimmers on the heel of cone, tungsten carbides insert and hardfacing on the shirt tail increases gauge holding capability and bearing life.
3)Bearing structure
High precisiong journal bearing with two thrust faces.Balls lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver plated. abrasion resistance and seizure resistance of the bearing are improved.
4)Seal and Lubrication
Premium HNBR O-ting, optimal seal compression and curved seal strcture can enhance seal performance. The pressure compensat or system and adwanced grease can greatly increase the lubricating reliability.
5)Product Application
It can receive high WOB in the conwentional drilling. Ti is suitable for various formations by matcing cutting structure with defferent tooth shape, tooth density and tooth exposure height.
We also provide othe r types
IADC |
Applicable formation |
WOB(KN/mm) |
PRM(R/min) |
415/425/435 |
Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc. |
0.35~0.90 |
140~70 |
447 |
Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc. |
0.35~100 |
140~60 |
517 |
Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc |
0.37~1.05 |
120~50 |
527 |
Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc. |
0.37~1.05 |
120~50 |
537/547 |
Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. |
0.50~1.05 |
110~40 |
617/627 |
High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc. |
0.50~1.05 |
80~40 |
637/647 |
High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc. |
0.7~1.20 |
70~40 |
