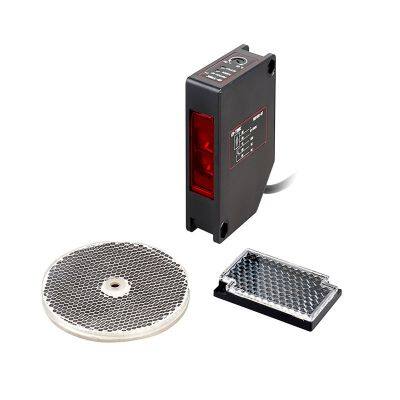

Help CenterInfrared Mirror Reflector Plate Photoelectric Switch for Parking Lot Checking
Related Products
-
Linear Potentiometer Infrared Retro-Reflective Photo Sensor for High-Performance DoorsUS$ 15 - 16MOQ: 10 Sets -
Plastic Relay Output Mirror Reflector Photoelectric Switch With CE CertificateUS$ 15 - 16MOQ: 10 Sets
-
Mirror Reflector Photo Sensor for Insulated Overhead Sectional DoorsUS$ 15 - 16MOQ: 10 Sets
-
IP65 Infrared Mirror Reflector Photoelectric Sensor for Material Handling DoorsUS$ 15 - 16MOQ: 10 Sets
-
7m Pmf50RF Mirror Reflector Plate Photo Sensor for Mine DoorsUS$ 15 - 16MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor |
PMF50R |
Detection type |
Retro-reflective type |
Detection object |
MinΦ30mm opaque object |
Detection distance |
RP04: 0~7m，RP05: 0~7m |
Supply voltage |
10-30v DC |
No-load current |
Max.60mA |
Response time |
Max.20ms |
Light |
Red LED(Wave length: 660mm) |
Action mode |
Selecting Light On or Dark On by potentiometer |
|
Control output |
Relay output，(contact rating: 30VDC 1A resistance load， 120VAC，1A resistance load，contact component: 1C)
|
Indicator |
Power indicator: green；Action indicator: red |
Protection circuit |
Reverse polarity protection |
Ambient brightness |
Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
Ambient temperature |
－20℃~65℃ (No-freezing) |
Ambient humidity |
0~90%RH |
Housing material |
Housing: ABS Lens: PMMA |
Shape and size |
As dimension |
Cable |
Φ5, 2×0.3mm² |
Protection rating |
IP65 (IEC) |
Accessory |
Bracket: IB02，Screw: M4×25 |
