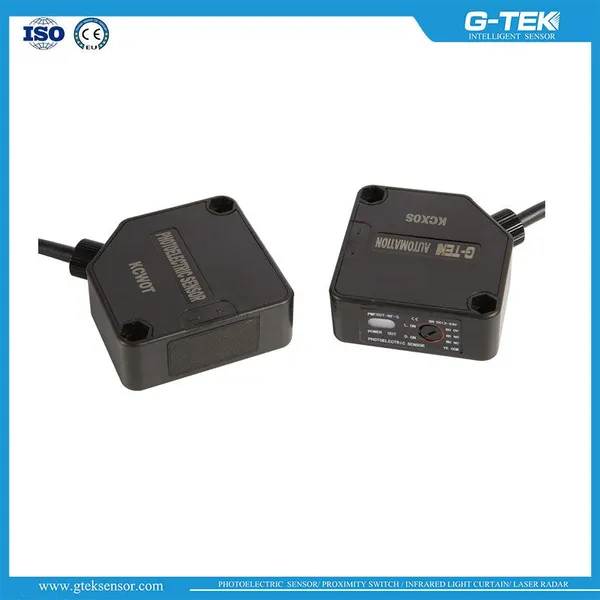

Help CenterInfrared Opposed Photo Sensor for Industrial Security High Speed Door
Related Products
-
Infrared Through Beam Photo Sensor for Automatic Garage DoorUS$ 16 - 17MOQ: 10 Sets -
Safety Through Beam Infrared Optical Sensor Exporters for Parking LotsUS$ 16 - 17MOQ: 10 Sets
-
25m Relay Output Through Beam Optical Sensor With CE CertificateUS$ 16 - 17MOQ: 10 Sets
-
25m Infrared Opposed Optical Sensor for Industry Security Garage DoorUS$ 16 - 17MOQ: 10 Sets
-
Infrared Through Beam Photoelectric Sensor for Heavy Industry DoorUS$ 16 - 17MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor |
PMF50T |
Detection type |
Opposed type |
Detection object |
MinΦ30mm opaque object |
Detection distance |
10m/25/50m |
Supply voltage |
10-30v DC |
No-load current |
Max.60mA |
Response time |
Max.20ms |
Light |
Infrared LED(modulated) |
Action mode |
Selecting Light On or Dark On by potentiometer |
|
Control output |
Relay output，(contact rating: 30VDC 1A resistance load， 120VAC，1A resistance load，contact component: 1C)
|
Indicator |
Power indicator: green；Action indicator: red |
Protection circuit |
Reverse polarity protection |
Ambient brightness |
Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
Ambient temperature |
－20℃~65℃ (No-freezing) |
Ambient humidity |
0~90%RH |
Housing material |
Housing: ABS Lens: PMMA |
Shape and size |
As dimension |
Cable |
Emitter: Φ 5, 2×0.3mm²; Receiver: Φ5, 5×0.2mm² |
Protection rating |
IP65 (IEC) |
Accessory |
Bracket: IB02，Screw: M4×25 |
Model | ||
Installation |
Product Model |
Detection Distance |
|
Opposed type |
PMF50T-10MRF-S |
10m |
PMF50T-25MRF-S |
25m |
|
PMF50T-50MRF-S |
50m |
|
PMF50T-10MRF-W |
10m |
|
PMF50T-25MRF-W |
25m |
|
PMF50T-50MRF-W |
50m |
|
