Poland 900mm coil Thermal BTO-22 Concertina Razor Barbed Wire from china supplier

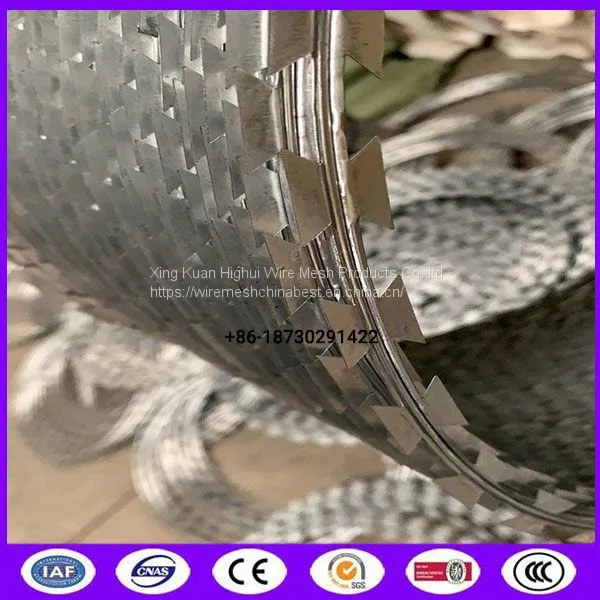

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

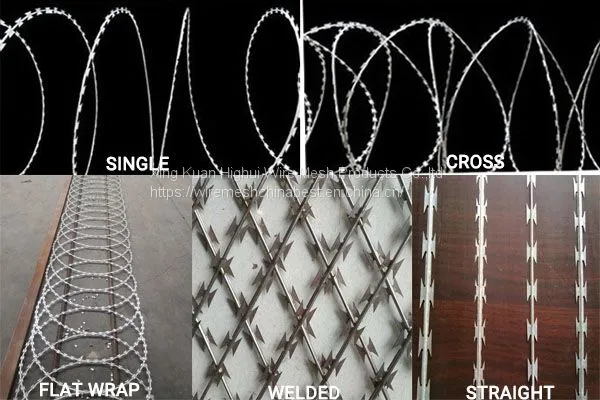

RAZOR WIR Types
Cross type concertina razor barbed wire
single coil type concertina razor barbed wire
flat wrap type concertina razor barbed wire
straight concertina wire srip
welded concertina razor wire mesh
I. Concertina Wire Materials:
Blade: steel plate by one-time punching moulding
or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire
hot dipped galvanized steel wire
or stainless steel wire
III. Usual Specifications:
Concertina wire or Dannert Wire is a type of barbed wire or razor wire that is formed in large coils which can be expanded like a concertina. In conjunction with plain barbed wire (and/or razor wire/tape) and steel pickets, it is most often used to form military-style wire obstacles such as when used in prison barriers, detention camps or riot control.
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Reference Number |
Thickness |
Wire Dia |
Barb Length |
Barb Width |
Barb spacing |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
25±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
25±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
35±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
36±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
46±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
46±1 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
101±2 |
Blade drawings
FAQ:
Q: Are you trading company or factoy ?
A: We are factory .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge .
Q: What's the payment terms?
A: Usually 30 %as deposit .70% against BL copy by T/T,western union acceptable for small account and L/C acceptable for large amount .
Q: What items is needed for a quotation?
A: Material,Razor type,Coil diameter,weight per Coil and quantity.
