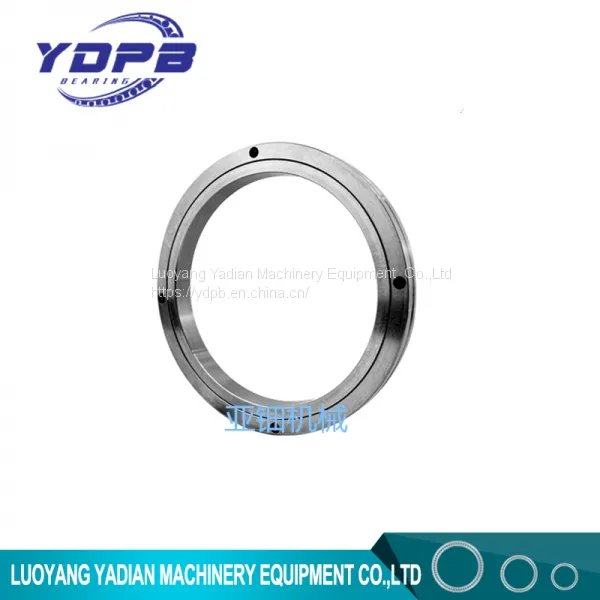

Help CenterChina Cylindrical Roller Bearing RB20025
Related Products
-
Supplier Cross Roller Bearing RB50040US$ 1 - 100000MOQ: 1 Piece -
China Cylindrical Roller Bearing Suppliers RB8016UUCC0P4US$ 1 - 100000MOQ: 1 Piece
-
Thin Rubber Seal RB5013UUCC0P2 Split Crossed Cylindrical Roller BearingUS$ 1 - 100000MOQ: 1 Piece
-
Robot Crossed Roller Bearing Factory SHF20-5016A Harmonic Drive BearingUS$ 1 - 100000MOQ: 1 Piece
-
Robotic Arm Bearing Manufacturers SHF32 Cross Roller BearingUS$ 1 - 100000MOQ: 1 Piece
Cross-Roller Ring Series
With the Cross-Roller Ring, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90゜ V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads.Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings.
Features
Compact, Highly Rigid Swivel Bearings ,Achieving a Superb Rotation Accuracy
| Shaft Diameter (mm) |
Bearings Model | Inner ring | Outer ring | Roller pitch circle diameter | Width | Greasing hole | Chamfer | Shoulder height | Basic load rating（radial） | Weight | ||
| d | D | dp | B/B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | kN | kN | |||||||
| 150 | RB15013 | 150 | 180 | 164 | 13 | 2.5-1.6 | 1.6 | 157 | 172 | 27 | 53.5 | 0.68 |
| RB15025 | 210 | 178 | 25 | 3.5-2 | 2 | 164 | 194 | 76.8 | 128 | 3.16 | ||
| RB15030 | 230 | 188 | 30 | 4.5-3 | 3 | 173 | 211 | 100 | 156 | 5.3 | ||
| 160 | RB16025 | 160 | 220 | 188.6 | 25 | 3.5-2 | 2 | 173 | 204 | 81.7 | 135 | 3.14 |
| 170 | RB17020 | 170 | 220 | 191 | 20 | 3.5-1.6 | 1.5 | 184 | 198 | 29 | 62.1 | 2.11 |
| 180 | RB18025 | 180 | 240 | 210 | 25 | 3.5-2 | 1.5 | 195 | 225 | 84 | 143 | 3.44 |
| 190 | RB19025 | 190 | 240 | 211.9 | 25 | 3.5-1.6 | 1 | 202 | 222 | 41.7 | 82.9 | 2.99 |
| 200 | RB20025 | 200 | 260 | 230 | 25 | 3.5-2 | 2 | 215 | 245 | 84.2 | 157 | 4 |
| RB20030 | 280 | 240 | 30 | 4.5-3 | 2 | 221 | 258 | 114 | 200 | 6.7 | ||
| RB20035 | 295 | 247.7 | 35 | 5-3 | 2 | 225 | 270 | 151 | 252 | 9.6 | ||
| 220 | RB22025 | 220 | 280 | 250.1 | 25 | 3.5-2 | 2 | 235 | 265 | 92.3 | 171 | 4.1 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
