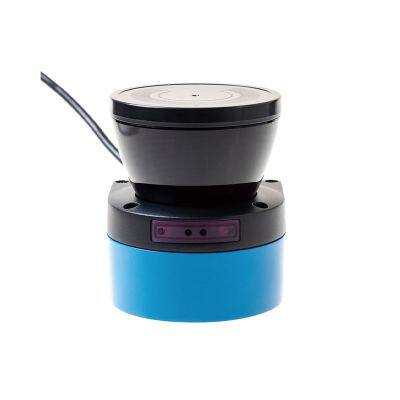

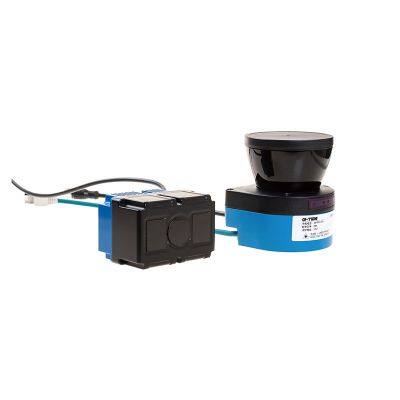

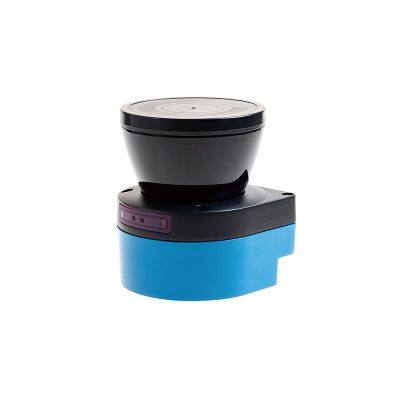

Laser Lidar Sensor for Industry Robot With Wide Range Angle
US$ 900 - 1300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
G-TEK
Place of Origin:
China
Model Number:
LND laser radar
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
14 days
Related Products
-
Laser Lidar Sensor for Highway Toll Gate Vehicle DetectionUS$ 900 - 1300MOQ: 1 Set -
Safety Best Laser Radar Detector for Agv Obstacle AvoidanceUS$ 900 - 1300MOQ: 1 Set
-
Lnd Laser Radar Traffic Sensor for Agv Obstacle AvoidanceUS$ 900 - 1300MOQ: 1 Set
-
Small Flexible Lidar Sensor for Automobile Production Line DetectionUS$ 900 - 1300MOQ: 1 Set
-
Lidar Sensor for Highway Traffic Vehicle Long-Range MeasurementUS$ 900 - 1300MOQ: 1 Set
Brand Name
G-TEK
Place of Origin
China
Model Number
LND laser radar
Usage
Other, highway toll gate
Theory
Optical Sensor
Output
Analog Sensor
Parameter | |
Laser Radar Sensor | LND series |
Supply voltage | 24VDC±20% |
Measurement resolution | 5mm |
Repeatability | ±15mm |
Laser wavelength | 905nm |
Laser class | I (safe to people’s eyes) |
Data interface | Ethernet 10/100MBd,TCP/IP |
Protection rating | IP67 |
Work Temperature | -30℃ to ＋60℃ |
Storage Temperature | -40℃ to ＋85℃ |
Light interference | 50000Lux |
Shape | 90mm×90mm×105mm |
Electrical connection | |||
Power wire | |||
Terminal number | Color | Signal Definition | Function Description |
One | Brown | 24V | Power supply positive input |
Two | Red | NC | Reserved |
Three | Grey | COM | Switch output COM terminal |
Four | Yellow | OUT2 | Relay output |
Five | Green | OUT3 | Relay output |
Six | Blue | 24v- | Power supply negative input |
Seven | White | OUT1 | Relay output |
Eight | Black | NC | Reserved |
