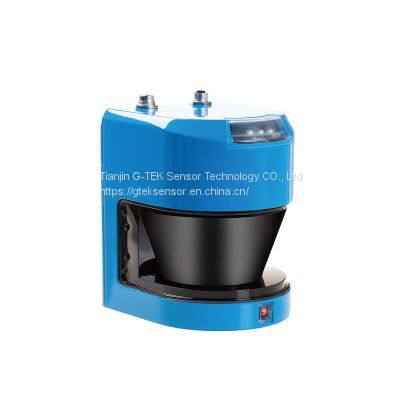

Laser Radar Built-in Self-Heating System with Resistance Strong Light Interference

Laser Radar Sensor

LSD series

Supply voltage

24VDC±20%

Distance range

0-50m

Scanning angle

-5°-185°

Angle   resolution

0.36°

Measurement resolution

5mm

Repeatability

±10mm

Response time

20ms

Laser   wavelength

905nm

Laser class

I (safe to people’s eyes)

Data interface

Ethernet 10/100MBd,TCP/IP

Protection rating

IEC IP68

Work Temperature

-45℃ to ＋85℃

Storage Temperature

-45℃ to ＋85℃

Light interference

50000Lux

Shape

131mm×144mm×187mm

Power wire

Terminal number

Color

Signal Definition

Function   Description

One

Blue

24V

Power supply   negative input

Two

Black

HEAT

Heating supply   negative input

Three

White

IN2/OUT1

I/O Input NPN   output

Four

Brown

24V+

Power supply positive   input

Five

Red

HEAT+

Heating supply positive   input

Six

Green

NC/OUT3

I/O Input NPN   output

Seven

Yellow

IN/OUT2

I/O Input NPN   output

Terminal number

Color

Signal Definition

Function   Description

One

Orange white

TX+E

Ethernet data   transmission

Two

Green white

RX+E

Ethernet data   transmission

Three

Orange

TX-E

Ethernet data   transmission

Four

Green

RX-E

Ethernet data   transmission

Product Name

Product Model

Detection Distance

Digital Input

Output

LSD Laser Radar

LSD101A

0-40m

-

3(NPN)

LSD121A

0-40m

3

-

LSD131A

0-40m

-

3(NPN)

LSD105A

0-50m

-

3(NPN)

LSD151A

0-50m

3

-
