Product Details
| Brand Name | JAGUAR | Place of Origin | China | |
| Model Number | N250 | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One year | |
| Weight | 700KG | Dimension(L*W*H) | 1800*1200*1600 | |
| Condition | New | Voltage | 380V | |
| Power(W) | 6KW |
Product Description

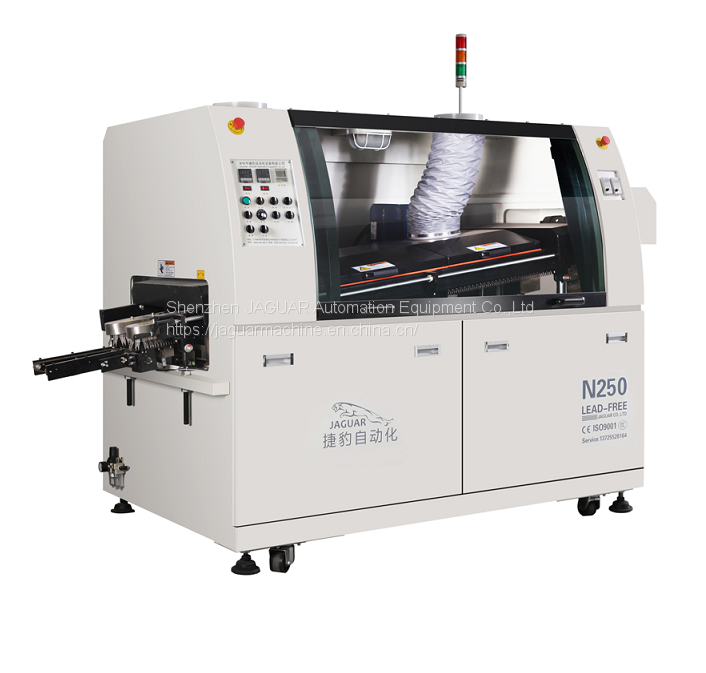

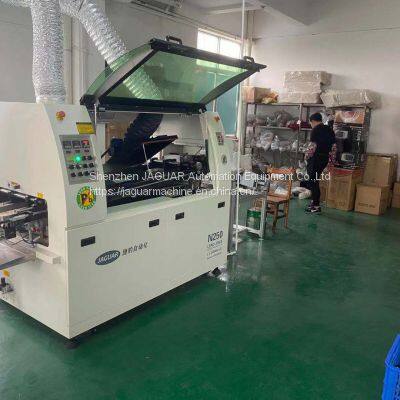

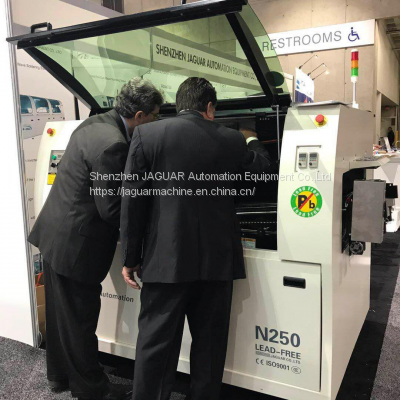

JAGUAR Hot Air Lead Free Wave Soldering Machine (N250)
INTRODUCTION:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4.PLC is used to control the machine, to ensure the reliability and stability of the system.
5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.

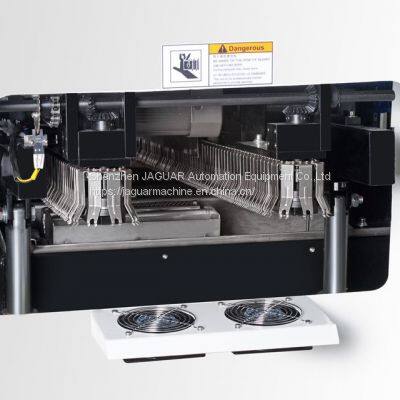

6.Special alloy transportation chain claws, non-stick tin and ensures the
7.quality of welding PCB board.
8.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
9.Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
10.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
11.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
12.automatic claw cleaning function ensure the cleanliness of claws.
13.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
Specification:
Model No. | JAGUAR N250 |
Number of heating zones | 2 |
Length of heating zones | 600mm |
Body size | 1800(L)*1200(W)*1600(H) |
Outside dimension | 2600(L)*1200(W)*1600(H) |
Weight | 700KG |
Total/running power | 11KW/4-6KW |
Air supply | 0.5MPa |
Preheating method | Hot air |
Preheating power | 220V 5KW |
Control method | Press key +PLC (Option: touch screen, PC) |
Range of temp. control | Room temperature---300℃ |
Preheating time | About 10-15mins for setting 150℃ |
Solder type | Lead-free / Sn-Pb |
Solder pot capacity | 220KG |
Solder pot temperature | 300℃ |
Solder power | 380V 6KW |
Solder temp. control method | PID&SSR |
Wave crest drive power | 500W 220V |
Warm-up time of solder | About 120mins for setting 250℃ |
PCB width | 50-250mm |
Convey speed | 0-1800mm/min |
Convey direction | L→R (R→L optional) |
Convey angle | 4—7 º |
Flux pressure | 3-5 bar |
Flux capacity | 3.2L |

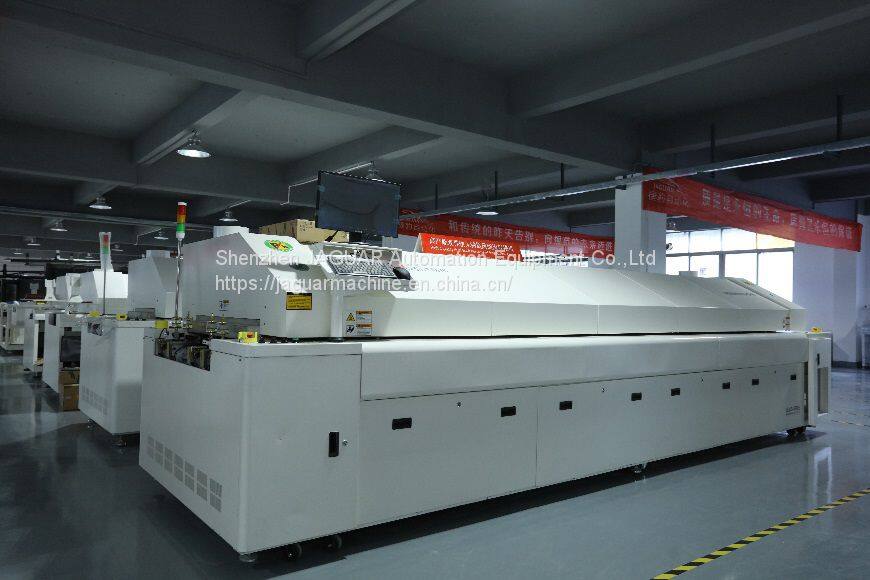

Company Profile

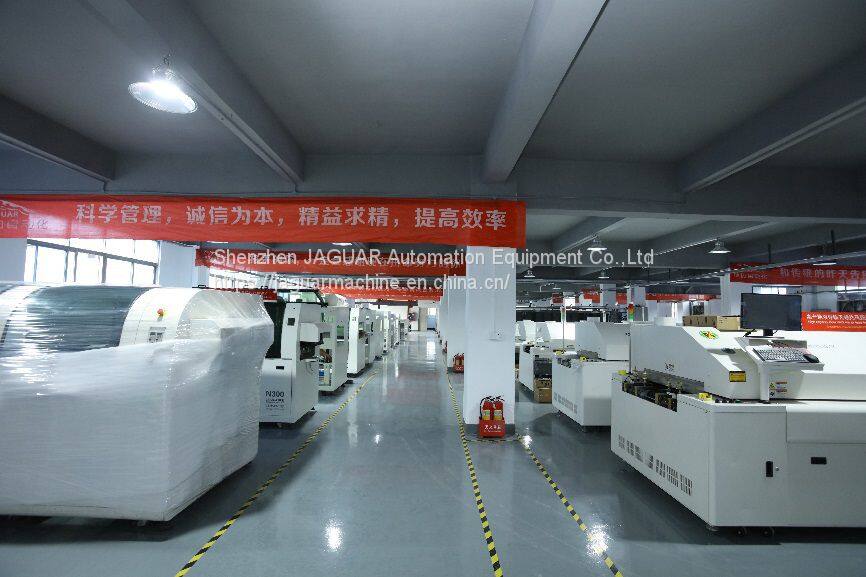

Shenzhen Jaguar Automation is professional in manufacturing wave soldering machine and reflow oven,besides both two kinds of products, we also engaged in offering SMT conveyor, pick and place machine, LED equipments, PCB loader and unloader, screen printer and other SMT machines.Our services, we devote to serve customers and meet all of their diversified requirments with stable technical level, innovative design concept, precise manufacturing process, reasonable price and customer first after-sales system.JAGUAR has been committed to develop to lead-free machine and manufacture lead-free electronic devices since foundation. At present, we have researched and developed 4 sorts of environmental friendly reflow oven, there are A series, M series, F series and R series. What's more, we have also develop wave soldering machine, for example, the econimic wave solder, top lead free wave solder and high-end of large size wave solder. All of our machines are not only used wildly in electronic circuit, LED industry, instruments and apparatuses, but also in household appliances, such as washing machine, microwave, television ect.
