Help Center1325 Multifunction Woodworking Carving Machine 4 Axis Swing Head Foam Milling CNC Router
Related Products
-
High Speed High Z Spindle Carver CNC Engraving Machine 1325 Working Table 4 Axis CNC RouterUS$ 7500 - 8000MOQ: 1 Set -
Professional DSP Controller PVC Foam Board Engraving Machine Swing Head Foam Carving CNC RouterUS$ 7500 - 8000MOQ: 1 Set
-
Good Service Automatic Foam High Z 800mm Engraving Machine Swing Head 4 Axis CNC RouterUS$ 7500 - 8000MOQ: 1 Set
-
High Quality Wooden Furniture 3 Axis CNC Router Wood Door Making 3D CNC Carving MachineUS$ 4399 - 5499MOQ: 1 Set
-
New Product Furniture Making Engraving Machine Water Cooling Spindle Wood Door CNC RouterUS$ 4399 - 5499MOQ: 1 Set
High Configuration 4 Axis Foam CNC Router 3D Foam Engraving Machine
| Features: |
Effective working area :2500x1300x1000mm
Chinese servo motor spindle with ATC
Japan YASKAWA servo driver 1.3KW
Taiwan SYNTEC control system
Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel
Double Taiwan HIWIN #30 Linear guide for Y axis one side,total 4pcs #30 linear guide for Y axis.
X,Z axis Taiwan HIWIN #30 linear guide .
Taiwan TBI ball screw with high precision
Dust hood for axis,dust collect hood and pipe for dust collector
Optional Rotary device:diameter 300mm, length 2000mm
New type dust collection with two bags
Heavy duty gantry and structure, the legs are 8mm thickness steel, 250*300mm tube
| Parameters: |
Description | Parameters |
X,Y,Z Working Area | 2500*1300*1000mm |
Table Surface | Iron T-slot Table with PVC |
Frame | Welded Structure |
X, Y Structure | Original 30# HINWIN linear guide, helical rack |
Z Structure | Hiwin Rail Linear guide and TBI Ball Screw |
Max. Power Consumption | (Without Spindle)2.5kw~3kw |
Spindle Power | 5.5kw Servo spindle, for steel working |
Torque | 17.5 N.m |
Drive Motors | Japanese YASKAWA servo motor |
Working Voltage | AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Command Language | G Code |
Operating System | Taiwan Syntec control system |
Reducer | Japanese Shimpo |
Computer Interface | USB |
X,Y,Z repositioning Accuracy | ±0.02mm |
X,Y Resolution | ±0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Lubrication system | Auto |
Tool sensor | Auto |
Dust collector | 3kw double packages dust collector |
Optional parts | Italy air cooling spindle Rotary device |

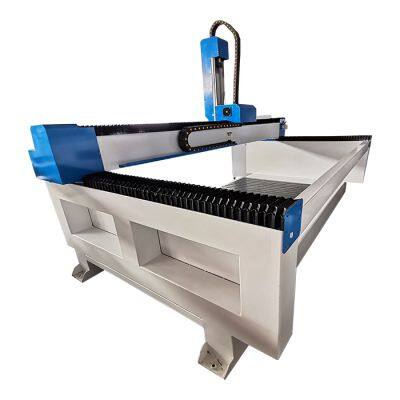

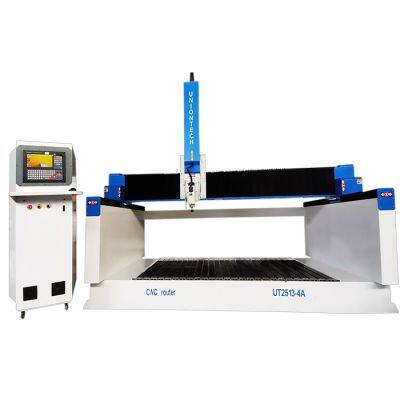

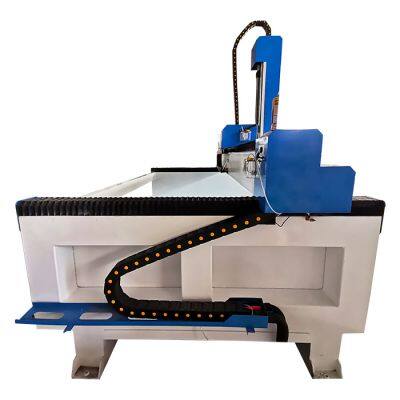

| Machine details: |
| Applications: |
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile
interior decoration, engineering plastic and other non-metal materials. Stainless steel, iron drilling and milling
| The factory to show: |
Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.
| Customer photo: |
| Certificate showing: |
| FAQ: |
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas.
| Product process: |
| Packing and delivery: |
1) Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2) Shipping:
We cooperate with COSCO and Maersk company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
| more other machines: |
| | | |
1325 CNC ROUTER ATC cnc router 4axis cnc router EPS cnc router
1. 24 months quality guaranty, the machine with main parts(excluding the consumables) of Fiber Laser Cutting Machine shall be changed freely if there is any problem during the warranty period.
2. Charge freely lifetime maintenance of Fiber Laser Cutting Machine.
3. Free training course of Fiber Laser Cutting Machine in our factory.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service every day, free technical support.
6. Fiber Laser Cutting Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust Fiber Laser Cutting Machine if necessary.
