Wifi Alarm System Home Security Gsm Alarm System Alarm System Security

1. WIFI 3G/GSM home alarm system, Switching 3G/GSM network automactically when WIFI network outage.

2. Support Android & IOS APP remote control to arm,disarm,parameter setting and accessory management.

3.Can add IP cameras.Users can remote video monitoring via mobile phone APP to keep an eye on your home, office, parking area or anywhere you need security.

4.Can add 100 pcs smart sockets/relay output to smart control home appliances , and support sockets/relay output name settings.

12.Can store and inquiry daily operation record and alarm history record.

14.Timing arm/disarm function

16.SMS alert when AC power failure or recovery.

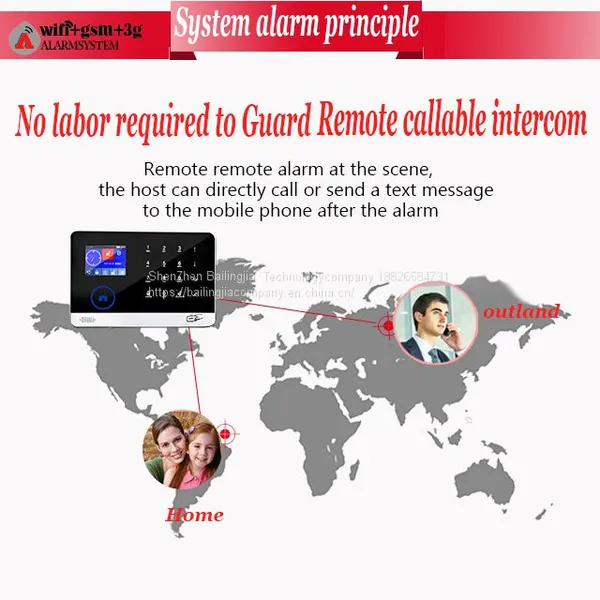

17.Support monitoring and two-way intercom function

18.Built-in internal wireless siren , and can add external wireless siren.

19.Built-in powerful performance MCU master based on 32-bit Cortex-M3 core.

Input voltage

DC5V2A(mico USB)

Standby current

<40mA

Alarm current

<450 mA

Alarm Sound(Siren)

60~70dB at 3m

3G WCDM UMTS Frequency

2100/900MHZ&850/1900MHZ

GSM:850/900/1800/1900MHz

Wireless transmitting frequency

433Mhz,315Mhz,868Mhz

Support wireless sensors

EV1527/300K or 2262/1.5-4.7M

Wireless Alarm Sound

433MHZ 60~70dB at 3m

Wireless distance

30m open area

Working Temperature

-10 Degree to 45 Degree

Working Humidity

<=90% rh

Storage temperature range

20°-60°C

Optional Color

White / Black

Standard Kit Gross Weight

1.5 kg

Defense Zones

30 wireless zone

Support language

Chinese/English is standard. Other language can be customized per the order

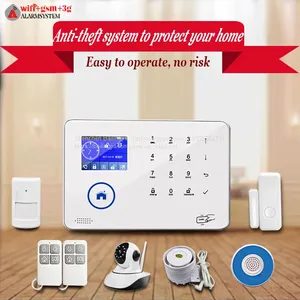

1x BL6600 Host

1x Wireless motion sensor

1x Wireless door sensor

2x remote controllers

1x 110DB Siren

1x Power Adapter

Optional accessories

wireless smart socket,IP Camera, PIR sensor, door/window sensor,wireless siren,remote controllers, SOS Button, gas detector,smoke sensor, water leakage sensor , shatterproof glass detector,vibration sensor , etc.
