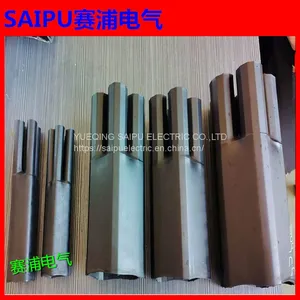

Main purpose: suitable for insulation, waterproof sealing and oil-proof sealing protection at the branch of the cable core terminal.
Voltage level: 1kv, 10kv, 35kv
Types: two-core finger cot, three-core finger cot, four-core finger cot, five-core finger cot
Specifications: 0#(10-16mm2), 1#(25-50mm2), 2#(70-120mm2) 3#(150-240mm2), 4#(300-400mm2), 5#(500 -630mm2)
Colour: Black
Instructions for use: According to the number of cable cores and specifications, select the corresponding heat-shrinkable finger cots and evenly put it on the root of the three-core or single-core multi-core cable. Open the open flame and shrink evenly from the top down or from the bottom to the top. Avoid fire-breathing metal Head bumps and heat shrink finger cots and avoid excessive flame shrinking.
Cable heat shrinkable sealing cap moisture proof heat shrinkable sealing cap waterproof cable head sealing cap cable head sealing cap
It is used at the end of power cable to ensure its waterproof sealing. Of cable gland
The inner surface is coated with a layer of spiral hot melt adhesive to maintain the flexibility after retraction. Suitable for exposure
Power transmission and distribution cables in air or underground. Including PVC sheath, lead sheath or cross-linked polyethylene
And so on.
• It effectively provides protection against oxidation, ozone and ultraviolet radiation
• Apply hot melt adhesive inside to ensure environmental tightness
• Easy to install at the end of the cable
• Minimum temperature of complete retraction: 120 ℃
The above quotation is for the model: 55 / 26, and the length after shrinkage is 103mm. If you need other specifications, please consult Wangwang.
The heat shrinkable sealing cap is composed of two layers of cross-linked polyolefin material and hot melt adhesive. The heat shrinkable sealing cap adopts internal gluing process and has excellent water resistance. It is mainly used for end protection during storage and transportation of power cables and communication cables. The procurement of heat shrinkable sealing cap is characterized by sealing, water resistance, heat shrinkable sealing cap supplier and moisture resistance.
We need to make a specific mold for heat shrinkable cap during production, that is, we now meet the production mold of conventional specifications, and the cap is injection molded by the mold.
