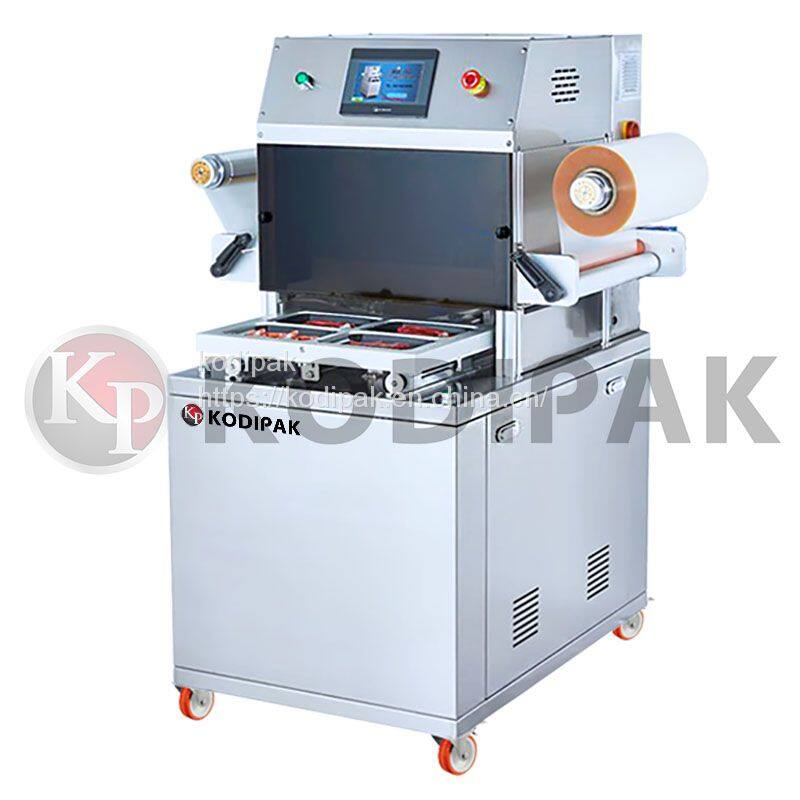

Cook Meat Modified Atmosphere Pack Machine MAP Machine

Cook Meat Modified Atmosphere Pack Machine MAP Machine thumbnail-1
Cook Meat Modified Atmosphere Pack Machine MAP Machine thumbnail-2
Cook Meat Modified Atmosphere Pack Machine MAP Machine thumbnail-3
Cook Meat Modified Atmosphere Pack Machine MAP Machine thumbnail-4
Cook Meat Modified Atmosphere Pack Machine MAP Machine thumbnail-5
Cook Meat Modified Atmosphere Pack Machine MAP Machine photo-1
Cook Meat Modified Atmosphere Pack Machine MAP Machine photo-2
Cook Meat Modified Atmosphere Pack Machine MAP Machine photo-3
Cook Meat Modified Atmosphere Pack Machine MAP Machine photo-4
Cook Meat Modified Atmosphere Pack Machine MAP Machine photo-5
US$ 8999 - 14999 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
KODIPAK
Place of Origin:
China
Model Number:
KMAP-470
Contact Supplier Request Quote Chat Now
Kodipak
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KODIPAK
Place of Origin China
Model Number KMAP-470
Certification CE certification and ISO 9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 510kg
Dimension(L*W*H) 1550*1220*1650
Voltage 110/220/380V 50/60Hz 1/3Phase
Power 6.0 kw
Application Other, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, food
Condition New
Automatic Grade Semi-Automatic
Driven Type Electric
Packaging Material Wood
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch

Machine introduces

 The kodipak modified atmosphere pack machine MAP sealer machine will keep your food fresher for longer! It's perfect for red meat, seafood, minimally processed fruits and vegetables, salads, pasta cheese, bakery goods and more!meat and beef modified atmosphere pack machine MAP machine cook meat modified atmosphere pack machine MAP machine

Modified atmosphere pack machine appliaction

Suitable for prefabricated box atmosphere packaging of all kinds of food, meat products, seafood, fruits and vegetables, pickles, chilled meat, medical products, hardware components, medical devices, etc.

Machine configuration and performance

  1. U-color sensor, both for light color and color film。

  2. Taiwan Precision Research Motor for Box Control, precise location

  3. Mitsubishi (Siemens) computer control in Japano

  4. Japanese Yamamoto thermometero

  5. SMC Pneumatic elements

  6. Waste recovery coiling device.

  7. Japanese Mitsubishi (Siemens) touch screen

  8. Hard aluminum alloy dies.

  9. The main materials of the frame are 304 stainless steel and aluminum alloy。

Machine feature

1.Adopt food grade 304 stainless steel, safety and sanitation.
2.PLC control , humanized design,error message display.
3.Automatic film cycling.
4.Quick format change without the use of hand tools.
5.Double starting button and E-stop, safety ensured.
6.Heavy duty designed,compact construction.
7.Easily removable covers,Minimal maintenance.

Machine Specifications

Model KMAP-470
Voltage 220/380V 50/60Hz 3Phase
Air pressure(MPa) 0.6-0.9
Work Capacity 3-4 cycles per minute
Power(Kw) 6.5 kw
vacuum pump 100m³/h  germany BUSCH R5RA 0100F choice
Weight 550kg
Dimension 1550*1220*1650

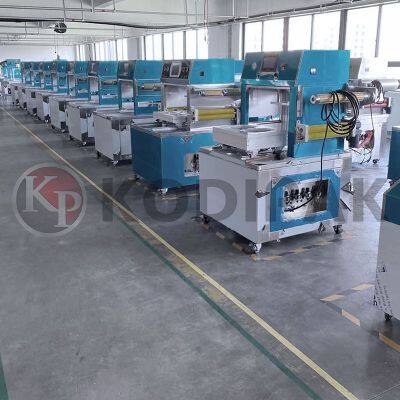

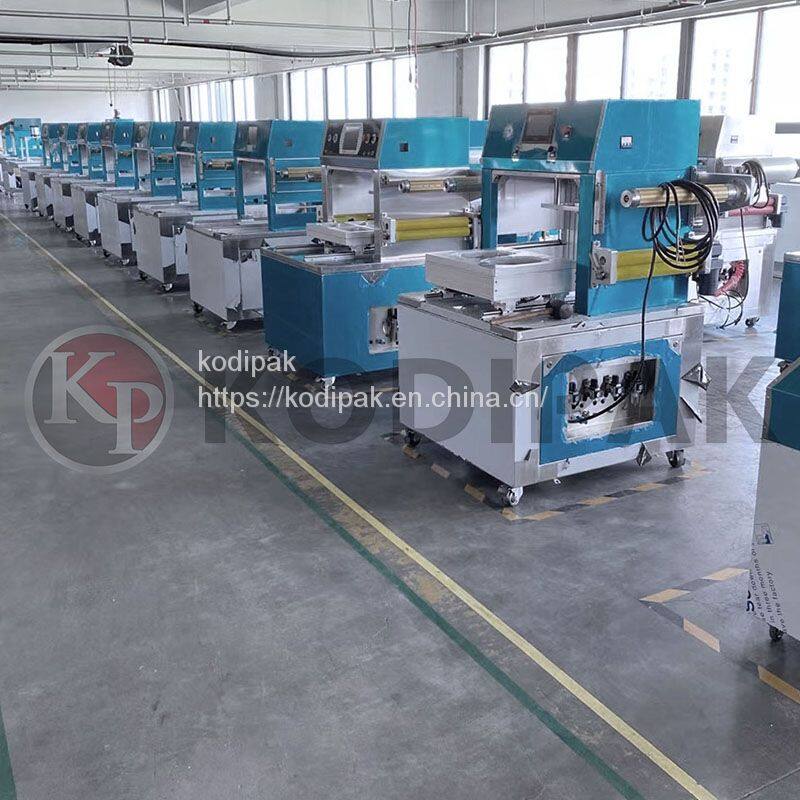

Machine detail picture

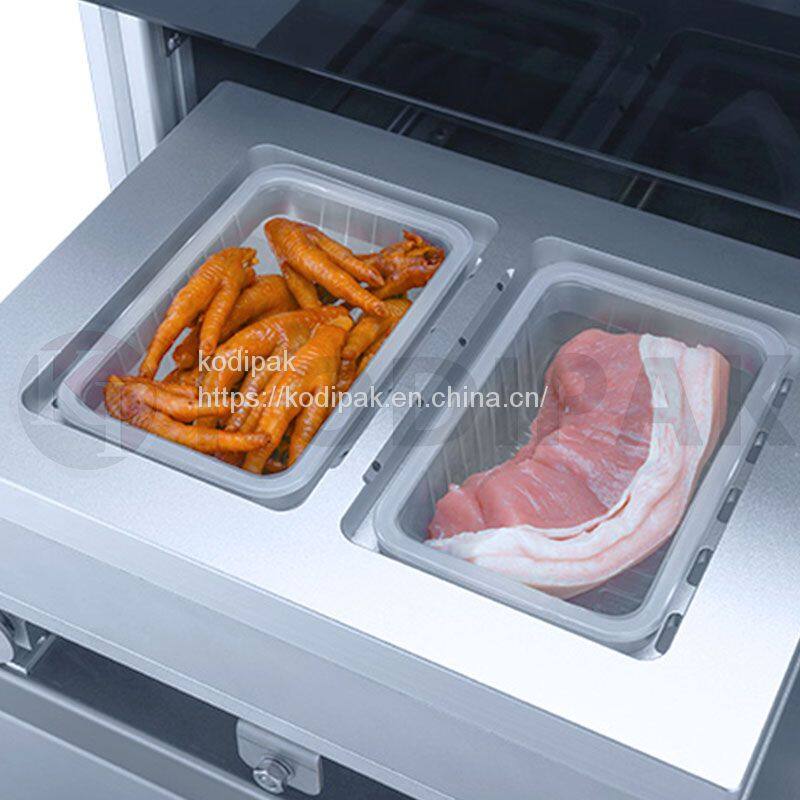

Machine pack sample pictures

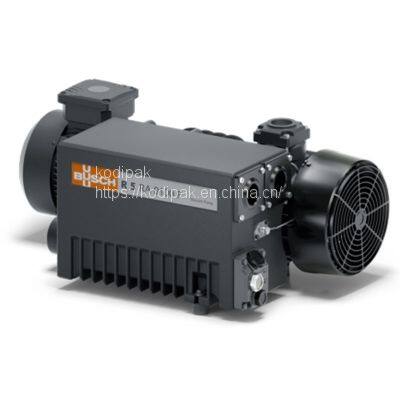

Using import germany BUSCH R5RA 0100F vacuum pump

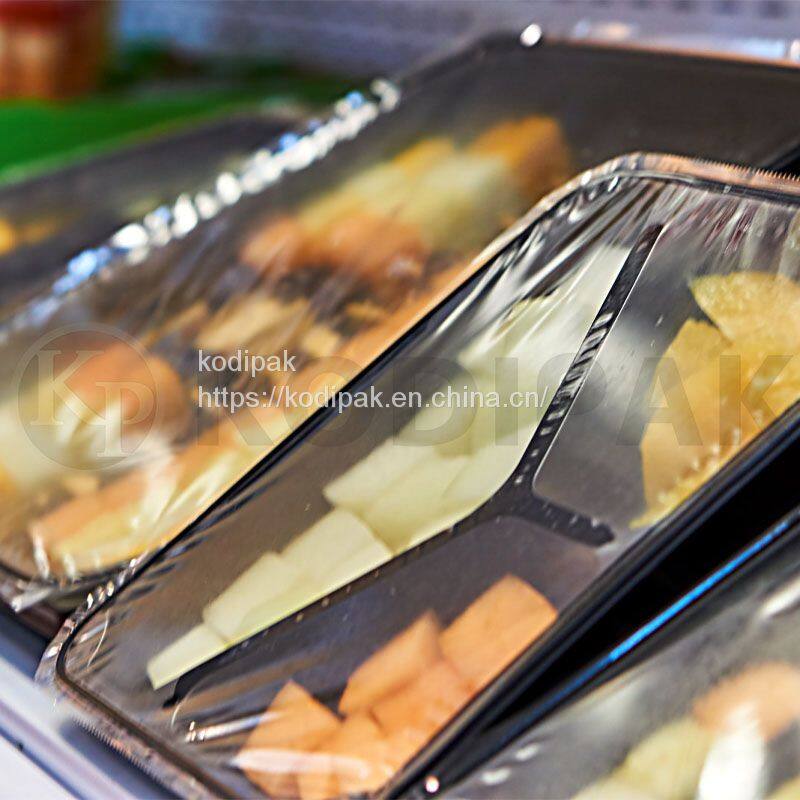

Machine sample pack picture

Kodipak FAQ

Q: Are you a factory or trading company?
A: We are an experienced factory located in nantong jiangsu and found in 1995.


Q:Can you design the machine according to our requirements?
A:Here at This Company, we make sure to customize your machine to your specifications and needs. We'll do that by having a talented engineer create a custom-made product for you. That way, we can ensure that not only does it fit your requirements, but also your budget requirements too.



Q: How long is the warranty period?
A: We offer 1 year warranty, exclude wearable parts such as silicone plate, film, heating wire etc.

Q: What guarantee certificate do you have?
A: CE, ISO9001, SGS, ISO-2001 etc.

Q: Is there any installation direction after we received the machine?
A: Our strategy is to provide theoretical and practical training for the client company. This ensures that the equipment operator can use the machine to its full potential and optimize production.
