Help CenterPS Diffuser Sheet With Prism Reverse Conical Pattern JK-PLZB
Related Products

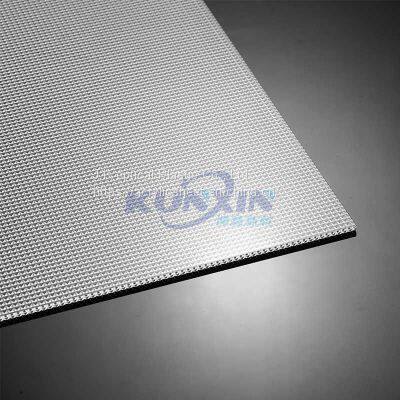

PS Diffuser sheet with Prism Reverse Conical Pattern JK-PLZB
Anti Glaring Diffuser Sheet for UGR
Unified Glaring Rating
Pattern: Concave hexagon, cone bottom
Material: PS
Thickness:1.2mm/1.5mm/2.0/3.0mm (can be customized)
Standard Size: 1200*1200mm (Can be customized)
Easy to fabrication
Enviroment Friendly
Diffuer Sheet Application
The application is different depend on the edge -lit usage or back-lit usage, for example if it's side-lit usage, there will be four layer structure, from the top to bottom will be UGR diffuser sheet, the diffuser film and LGP and reflective film, it can be illustrated that the UGR diffuser positioned in outer layer with the texture face towards the observer; The diffusion film located in the middle layer with the micro structure facing towards the LGP; the LGP be placed between the diffusion film and the reflective film, and with the dot side facing towards the diffusion film, the smooth side towards the reflective film.
