US$ 180 - 190 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
RICOEL/OEM
Place of Origin:
China
Model Number:
TG7063
Contact Supplier Request Quote Chat Now
Shenzhen RuiHao Electronics Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RICOEL/OEM
Place of Origin China
Model Number TG7063
Use Automotive
Type Gps Navigator
Function Other, Mp3/Mp4, Photo Viewer, Touch Screen, FM Transmitter,Navigator, FM Radio, WIFI
Screen Size 7 inch
New Product 7 Inch High Accuracy GNSS Tractor Navigation for Precision Agriculture & Farming
Multi system dual-band navigation and positioning agriculture guidance systemSupports: GPS, Beidou, GLONASS, GALILEO and QZSS Satellites.


Dual Band: It comes with L1-L5 dual frequency positioning module, positioning faster, more accurate and reliable.

Applications: Preload Farm applications, for example Filed bee

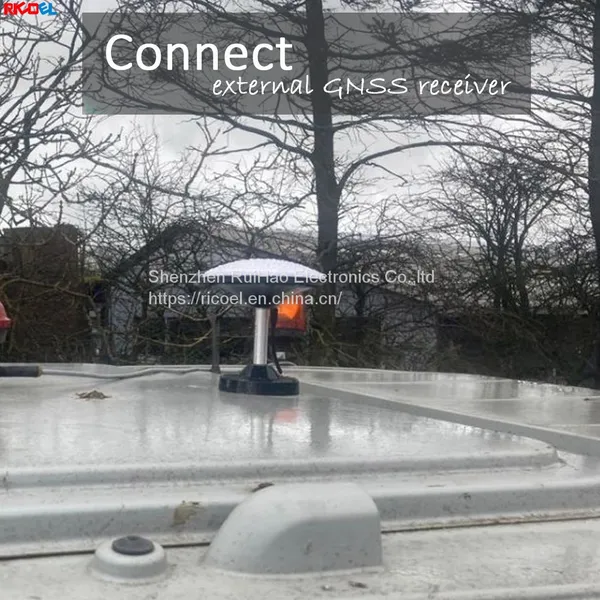

  • Antenna: Multi-band active magnectic antenna

Main Specs:

Placement: Portable or Roof

Operation System: Android 6.0

Display: 7 inch 500 nits high Brightness

Application(software) : Field Navigaor & Fieldbee

Positioning accuracy:

Battery: 2500mah


Installation:

Easy setup for your equipment with durable tractor mounts

Always connected with built-in WiFi

Always current with wireless updates of your software


Operation: Simple-to-use with short-cut keys, LED power button, pinch-to-zoom

Power: using vehicle ignition, accept customization.


P.S.    OEM and ODM orders are acceptable.

Product Paramenters
Model No.
TG7063
Gerneral
Screen
7" capacitive touch screen
Resolution
800*480 px TFT 500nits Brightness
Processor
Cortex A53*4 1.3GHz
Memory
DDR3 1GB
NAND
16 GB
OS
Android 6.0
GNSS Module
Singal Frequency
GPS/QZSS :L1CA, L1C,L5
GLONASS: L1
BeiDou: B1C,B1I,B2a
GALILEO: E1,E5
SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)
Channels
136
Positioning accuracy
CEP
Positioning Refresh Rate
MAX 20Hz
Time to first fix
Cold Start:
Function
BT
BT 4.0
FM Transmitter
KT0806 76MHz~108MHz
Wifi
2.4 GHz frequency bands,B/ G /N
G-sensor
MC3236± 1.5g range 1 to 128 samples/sec
Other
Interface
Mini 5 pin USB, MicroSD Slot, Reset, Switch button
Interface (optional)
Serial Port, RS232, COM
Speaker
1.5W / 8Ω
Waterproof Rate
/
Input
5V 2A
Battery
2500 mAH/3.7V




company information

2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery

2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery

our advantages

2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery


2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery

2020 Windows CE 6.0 GPS navigator Mstar 2531 7 inch GPS Sunshade case Navigation gps with big Battery

FAQ image



Q:  Are you trader or manufacturer?

A: We are manufacturer in Shenzhen. welcome to visit when available.



Q:  What's your products, any new/special?

A:  GPS navigators for Car/Truck/motorcycle and Industrial touch screen.

      Now develop new GPS guidance for tractors, realize precision farming.

      Larger yields with less work




Contact Us



 We value long-term business relationship. If you agree also, welcome for inquiry. Thank you


Product Tags: gps for tractor , gps tracking device for tractors , gps tool for precision agriculture , tractor gps guidance , agricultural guidance gps , gps field guidance , gps guidance , tractor gps guidance system , high accurate agriculture gps guidance navigator
