Detailed information
Brand: Henghai

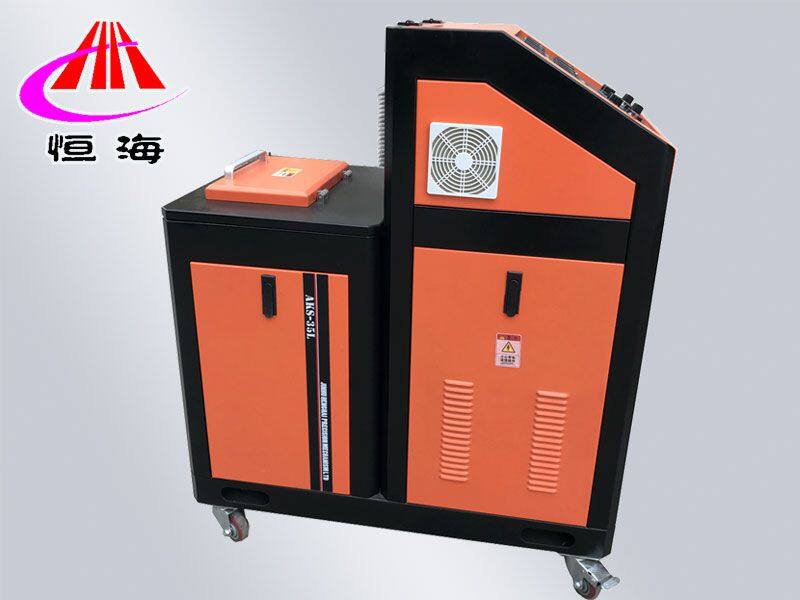

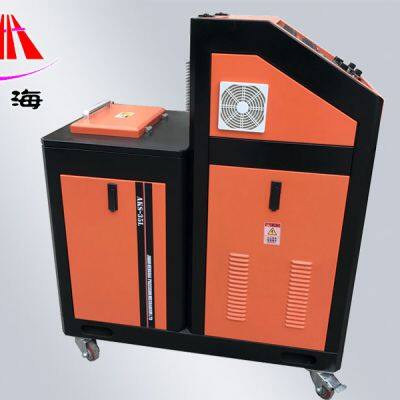

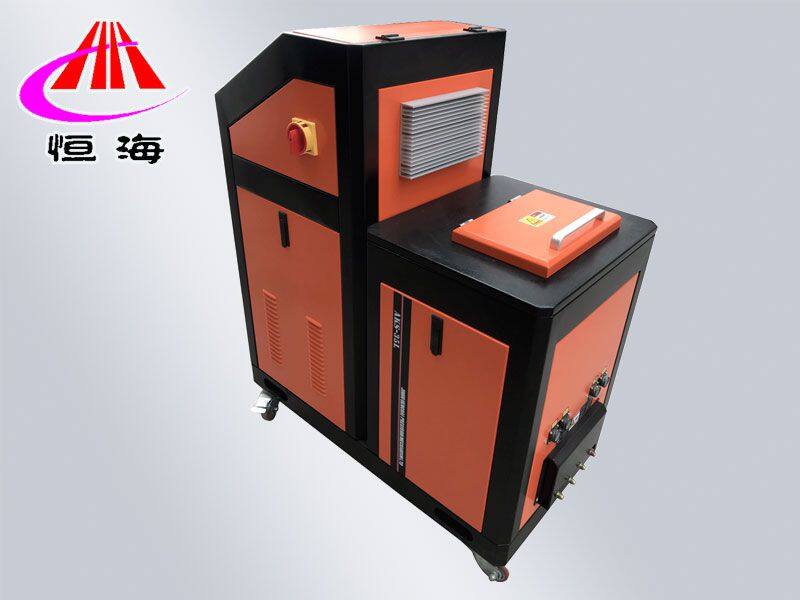

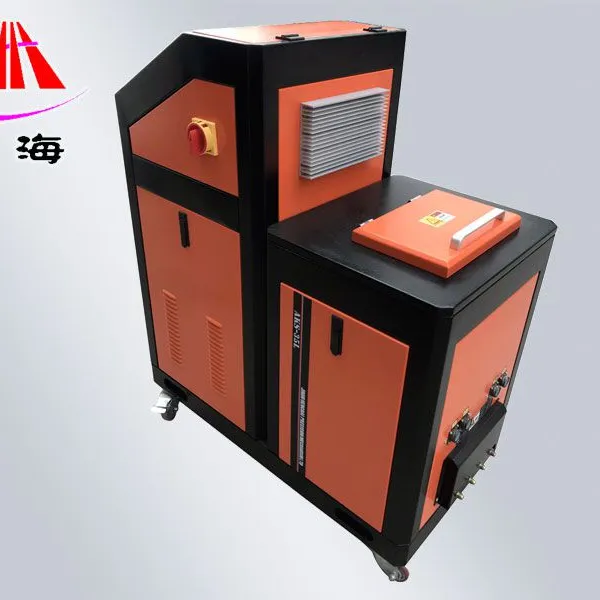

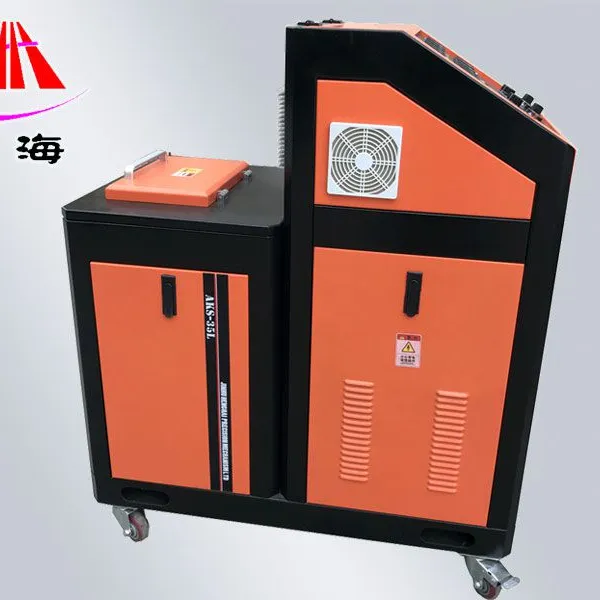

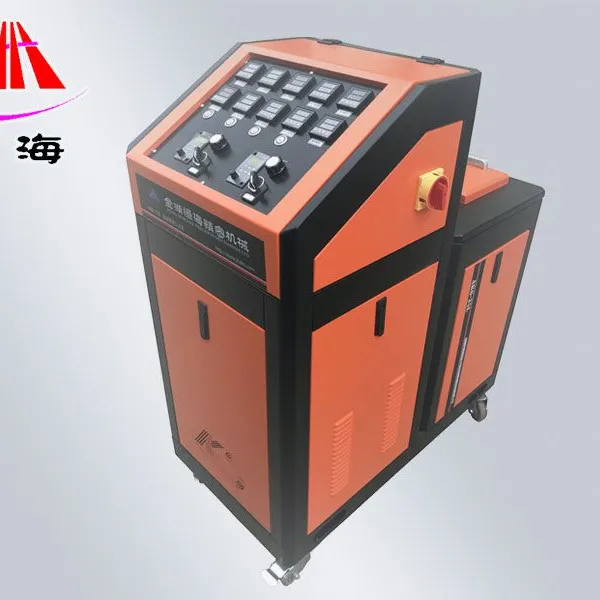

Name: 35kg hot melt adhesive machine
Model: aks-35-2p4e-b
Temperature control range: 0-200 ℃
Operating temperature: 165 ℃
Rated power: 3500W + 1200W
Rated voltage: 380VAC
Rated current: 15.9a + 5.5A
Overall weight: 75.8kg
Overall dimension: 950x510x1150 (L x W x H)
Detailed description
1. Pre melting type heating melting cylinder, "TEFLON" coating to reduce carbide generation.
2. The grooved self buckle shell is easy to fold and repair, and meets the international design safety standards.
3. Glue amount up to 35kg / HR, power: 3500W + 1200W

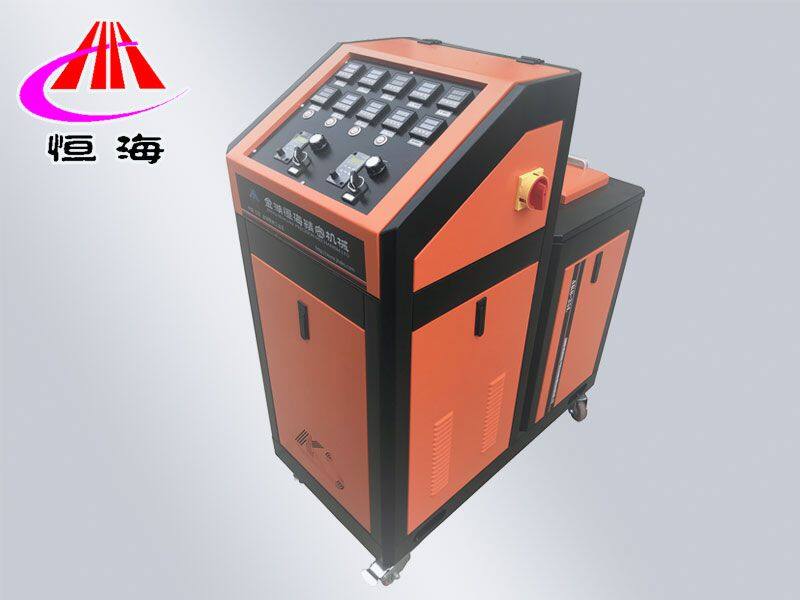

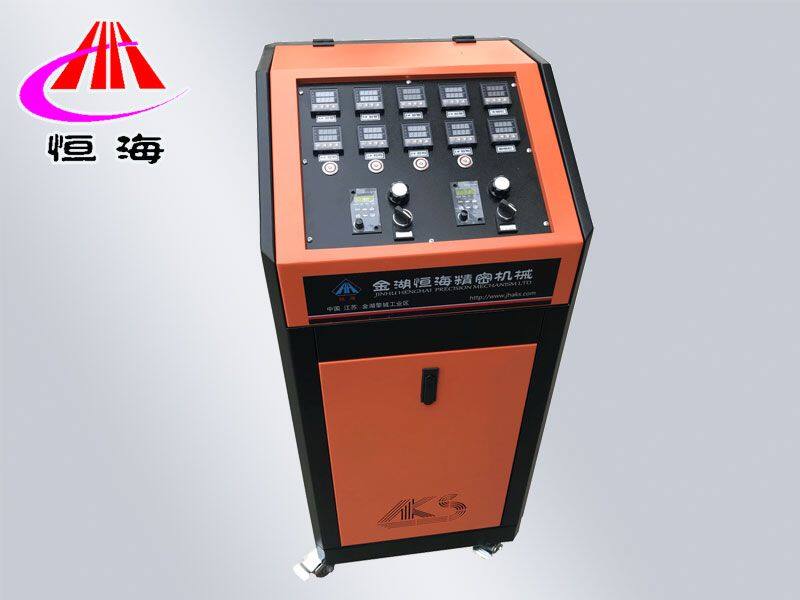

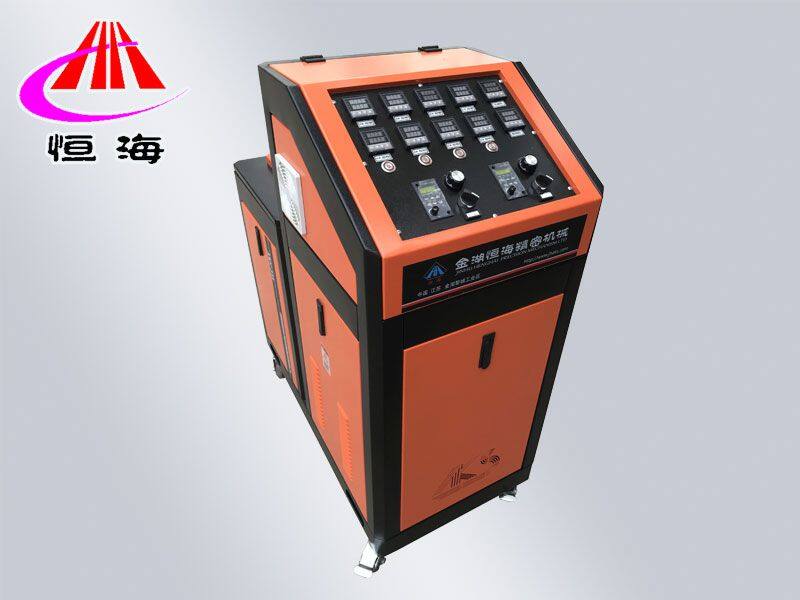

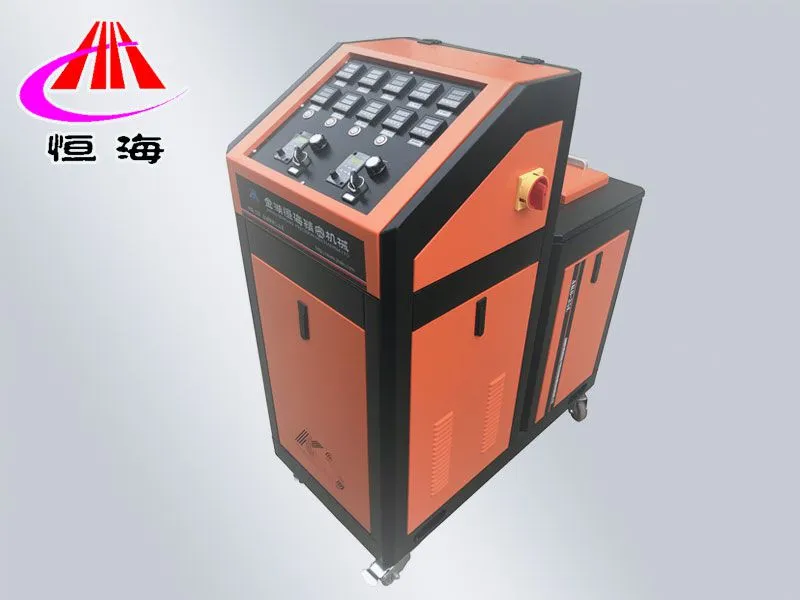

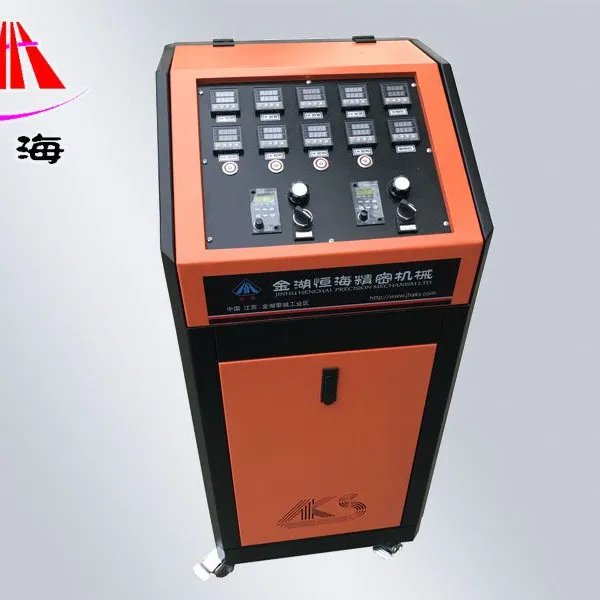

4. The touch screen temperature control system cooperates with precise PT100 platinum / K-type temperature sensor to reduce the deterioration and maintenance of hot melt adhesive. Automatically monitor the temperature of each area in the whole process. When an area is over temperature, it will immediately output an audible and visual alarm signal, and the fault point will be displayed on the screen. Each area is equipped with independent switch control to select the heating area to be opened according to the needs.
5. Equipped with 2 sets of durable single / double-layer gear pumps, accurate glue delivery
6. Two groups of return valves and six groups of over temperature protection circuits are equipped to ensure safety to the greatest extent.
7. Durable single / double-layer gear pump, accurate glue output, accurate metering gear pump, accurate output of 0.75-15cc per revolution, optional.
Matters needing attention
1. For high temperature and high pressure equipment, pay attention to prevent scalding and electric shock;
2. The equipment can be started only after the temperature is ready;
3. Cut off power during installation;
4. When installing auxiliary equipment such as guns and pipes, the pressure shall be relieved and discharged before installation;
5. Clean the dust regularly to prevent static ignition;
6. Regularly check whether there is glue leakage and electric leakage.
Scope of application
Application fields: paper packaging, box sealing, automobile manufacturing, electronic and electrical packaging, trademark labeling, composite materials, maternal and child health products, medical mattresses, etc
Purchase need to know
1. About products
We accept the customized service of special models of users and track the whole process from production to delivery to ensure the safety and stability of the equipment.
2. About after sales
We will provide perfect after-sales service, from manufacturing, delivery, installation, commissioning to delivery to users.
3. About delivery
The express companies we cooperate with are: Shentong, Yuantong, Shunfeng, and logistics companies.
For more details, please visit the official website of Henghai precision machinery:
/EWEB/index.asp
