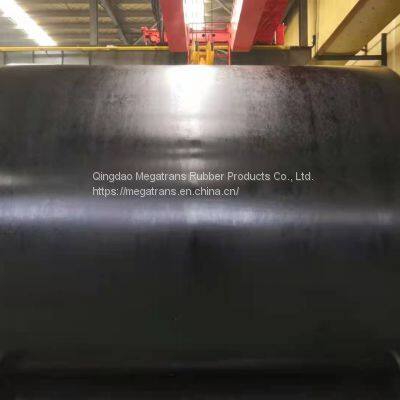

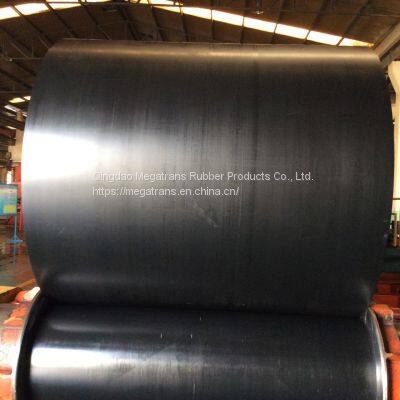

Help CenterHigh Quality STRAIGHT WARP Rubber CONVEYOR BELT
Related Products
-
High Quality STRAIGHT WARP Rubber CONVEYOR BELTUS$ 10 - 100MOQ: 10 Meters -
STRAIGHT WARP CONVEYOR BELT / Rubber Conveyor Belt for CementUS$ 10 - 100MOQ: 10 Meters
-
High Quality STRAIGHT WARP Rubber CONVEYOR BELTUS$ 10 - 100MOQ: 10 Meters
-
STRAIGHT WARP CONVEYOR BELT / Rubber Conveyor Belt for CementUS$ 10 - 100MOQ: 10 Meters
-
White /black Conveyor Belt EP/NN/PN/PIW Flat /chevron Conveyor Belt for MiningUS$ 10 - 100MOQ: 100 Meters
Product Classification
Carcass materials: SW Conveyor Belt
CFW Conveyor Belt
ARAMID Conveyor Belt
Product Application
SW/CFW/ARAMID conveyor belts are suitable for conveying materials in high strength ,long distance and heavy load transportation of different size of materials, which are widely used in coal, mine, port, power plant, metallurgy, building materials, metallurgy, cement, etc. These belt are designed to carry large volumes of non-corrosive materials and have excellent durability in extreme environments.
Product Features
Synthetic fibers have higher unit strength and excellent wear resistance, cut resistance and abrasion resistance. The single layer structure increases resistance to bending fatigue and impact that is different from conventional crimp woven fabrics. The developed carcass completely deviates from the traditional laminating concept and structure. The features are low elongation, excellent impact resistance, excellent anti-tearing performance, low rolling resistance and high adhesive strength. The special structure of fabric can absorb impact better than ordinary EP or NN fabric ,which will extend the service life of the belt.

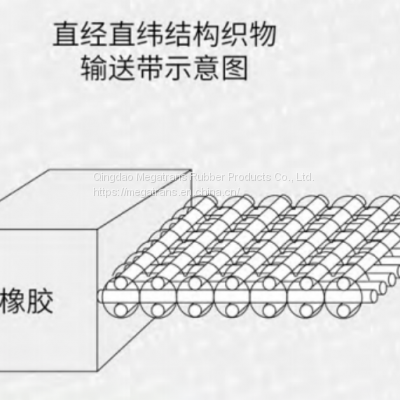

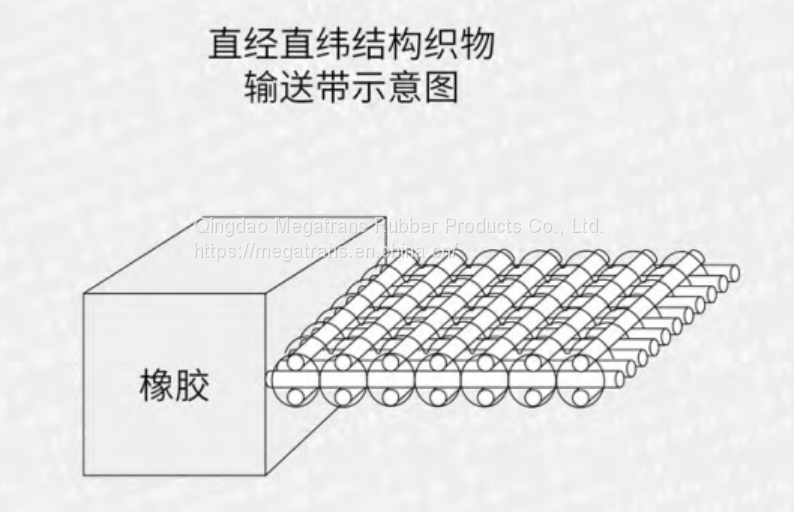

Product Structure
The synthetic fibers of SW/CFW/ARAMID replace the multilayer structure with 1 or 2 plies, which will make the belt running well with smaller pulley and the single roll length will be longer to reduce splice times .
Main Technical Indicators
Item |
NN , EP |
|||||
adhesion |
Cover rubber and ply |
Cover thickness ＞1.5mm |
5N/mm |
|||
Cover thickness ＜1.5mm |
4 N/mm |
|||||
Ply and ply |
5 N/mm |
|||||
Blet strength / N/mm |
SW350、SW400、SW500、SW630、SW800、SW1000、SW1250、SW1400、SW1600 |
|||||
Structure |
1 or 2 ply |
|||||
Cover rubber physical property |
X |
W |
Y |
Z |
||
Tensile strength / MPa ≥ |
25 |
18 |
20 |
15 |
||
Elongation at break / % ≥ |
450 |
400 |
400 |
350 |
||
Abrasion / mm3 ≤ |
120 |
90 |
150 |
200 |
||
Aging test（70℃×168h） |
Not less than 75% of value before test |
|||||
If you want to know more abput us ,please kindly contact with us , we will do our best to support .
