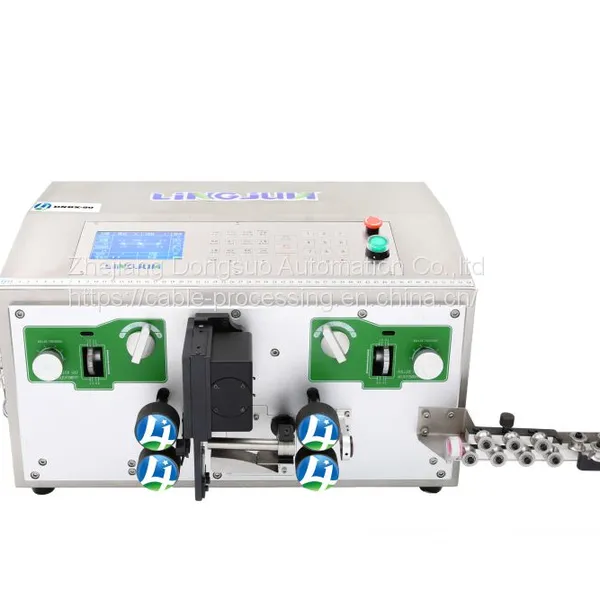

SWT-508C Computer Automatic Wire Stripping Machine SWT508C Wire Cutting Machine Cable Crimping and Peeling From 0.1 to 2.5mm2

SWT-508C Computer Automatic Wire Stripping Machine SWT508C Wire Cutting Machine Cable Crimping and Peeling From 0.1 to 2.5mm2 thumbnail-1
SWT-508C Computer Automatic Wire Stripping Machine SWT508C Wire Cutting Machine Cable Crimping and Peeling From 0.1 to 2.5mm2 thumbnail-2
SWT-508C Computer Automatic Wire Stripping Machine SWT508C Wire Cutting Machine Cable Crimping and Peeling From 0.1 to 2.5mm2 photo-1
SWT-508C Computer Automatic Wire Stripping Machine SWT508C Wire Cutting Machine Cable Crimping and Peeling From 0.1 to 2.5mm2 photo-2
US$ 100 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGSUO
Place of Origin:
China
Model Number:
SWT508C
Contact Supplier Request Quote Chat Now
Zhejiang Dongsuo Automation Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGSUO
Place of Origin China
Model Number SWT508C
Overview
Quick Details

  • Place of Origin:

  • Guangdong, China

  • Brand Name:

  • LY

  • Model Number:

  • SWT508C

  • Usage:

  • Stripping

  • Power supply:

  • AC 110 V / 220 V / 50/60 Hz

  • POWER:

  • 160W

  • Cutting length:

  • 1-9999 mm

  • Stripping length:

  • thrum 0-35, wire ends 0-15 mm

  • Middle strip cut:

  • eleven place strip

  • Cutting wire core section:

  • 0.1-2.5mm2(AWG16 #-AWG32 #

  • The biggest diameter ducts:

  • 6

  • Optimal stripped wire:

  • PVC/silica gel line /. Glass fiber cables

  • Driving way:

  • two wheel drive

  • Showing the way:

  • Chinese and English LCD interface
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 40X40X40 cm

  • Single gross weight:

  • 33.000 kg

  • Package Type:

  • carton

  • Picture Example:

  • package-img

  • Lead Time:

  • Quantity(Sets) 1 - 1 2 - 5 >5
    Est. Time(days) 8 10 To be negotiated

Peeling Striping Cutting Machine for Computer wire/ computer strip wire machine 0.1mm-2.5mm2 SWT508C-II



--Russia Buyer FREE customs TAX--

--If you need some additional accessories, you can contact us.



SWT508C function characteristics:


1. Optimal stripped wire PVC, glass wire, etc.
2. Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
3. The SWT508C wire stripping machine is widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing.
4. The SWT508C wire stripping machine use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features.
5. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. function.

WT508C technical parameters:



1, The product model: SWT508C

2, Electricity source: AC 110 V / 220 V / 50/60 Hz

3, Envelop dimensions: 390 x350x255

4, Showing the way: Chinese and English LCD interface

5, weight: 30KG

6, POWER: 200W

7, Cutting length: 1-9999 mm

8, Cutting tolerance: (0.2+/- 0.002 by L) mm

9, Cut off the error: can be modified

10, Stripping length: thrum 0-35, wire ends 0-15 mm

11, Middle strip cut: eleven place strip

12, Cutting wire core section: 0.1-2.5mm2 was the (AWG16 #-AWG32 #)

13, The biggest diameter ducts: 6

14, Optimal stripped wire: PVC//silica gel line /. Glass fiber cables, etc

15, The blade material: hard tungsten steel (import BaiGang optional)

16, Peel linear velocity (a/hour) : L = 100 mm, 3000 8000 PCS/h (high yield)

17, Driving way: two wheel drive
