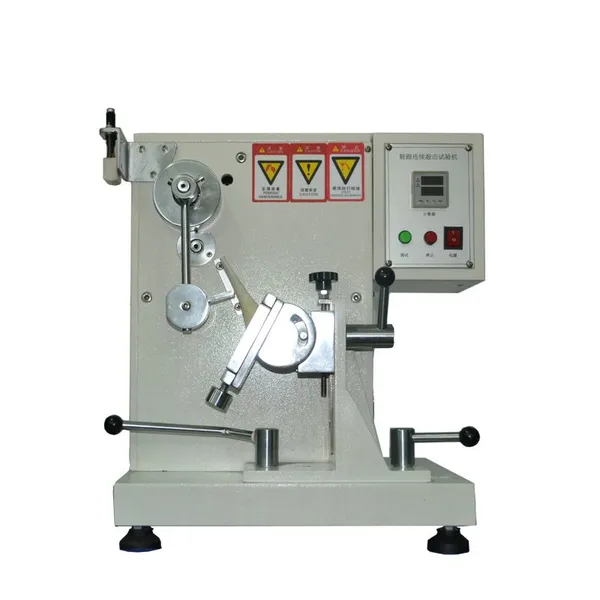

Heel Continuous Impact Tester Satra TM21

Heel Continuous Impact Tester Satra TM21 thumbnail-1
Heel Continuous Impact Tester Satra TM21 photo-1
US$ 3000 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Serve Real
Place of Origin:
China
Model Number:
XC-CJ02
Contact Supplier Request Quote Chat Now
Wuxi Serve Real Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Serve Real
Place of Origin China
Model Number XC-CJ02
Power Electronic
Usage Leather Testing Instrument


Specification:

Blow energy 0.68J
Blow efficiency 60/ min
Punch Thickness: 6±0.5mm,Width:20±1mm Length:35±2m, Fillet radius 3±0.5mm Metal strips
Distance between the top of the punch and the center of the punch 63.5±2mm
Swing arm diameter 12.5±1mm
Hammer diameter 57±1mm Thickness:20±1mm
Center distance between hammer and axle 152±2mm
When the pendulum is in the horizontal direction, the torque is 0.68±0.02N
Adjustable range of specimen seat vertical:90mm,horizontal:80mm angle:20°~65°
Counter LCD,0~999,999, automatic shutdown function for heel break
Dimension 50*45*50cm
Weight 69kg
Power AC220V 50HZ


Our main Shoes & Materials test equipments:

Main types:
Flexing test equipments
Wearing testing machine
Abrasion test equipments
Slip resistance test equipment
Shoelace test equipments
Sole test equipments
Leather test equipments
Zipper test equipments
Heel lift test equipments
Shoe shank test equipments
Heel testing machines
Safety shoes test equipments
Thermal performance test equipments
water & Oil resistance test equipments
Environmental test equipments
Sample preparation equipments
Upper test equipments

Key products
De Mattia flexing tester
AKRON Abrasion resistance tester
DIN Abrasion tester
Soles flexing tester
Shoe upper anti-cutting tester
shoes water resistance tester
shoe material heat resistance tester
heat insulation tester
safety shoes puncture resistance tester
Biomechanical wear testing machine
shoes slip resistance tester
sample cutter
shoelace abrasion tester
Zipper light sliding tester
Aging testing machine
 shoe shank stiffness tester
Heel continuous impact tester


Product Tags: Shoe Test Equipment , Shoe Material Testing Machine , Shoe Sole Slip Resistance Tester , Shoe Sole Slip Resistance Testing
