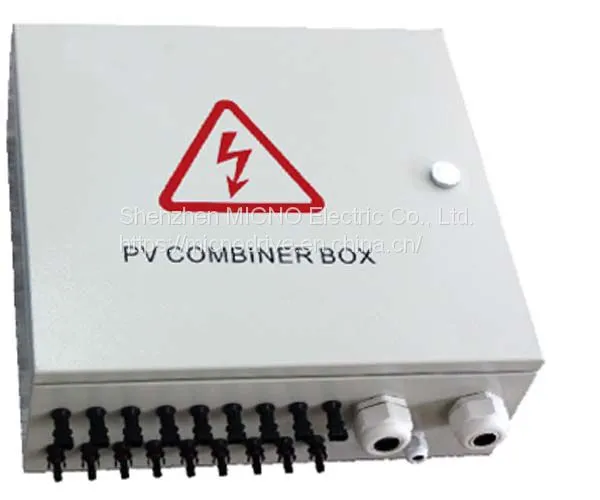

Solar DC Combiner Box

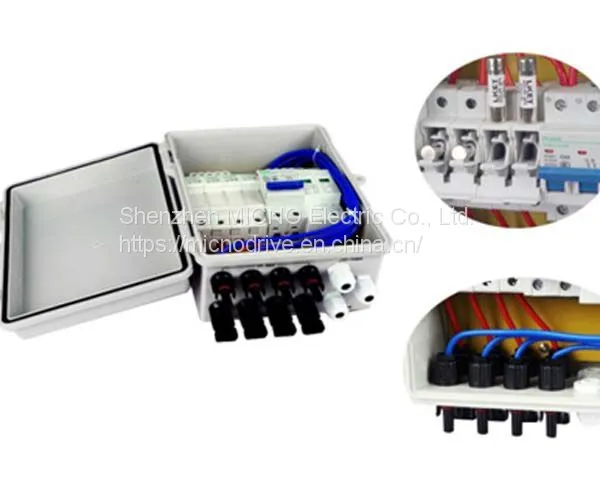

MICNO intelligent PV junction box is designed for multi-input tandem photovoltaic power system bus application, set convergence, detection, monitoring and protection into one to achieve a secure, reliable and convenient connection between multiple photovoltaic strings and inverters. The JTPV series intelligent photovoltaic junction box can be used in conjunction with the iMars inverter to form an overall installation and can be used as a separate installation.

Wiring diagram

Max. input voltage: DC 1000V (according to user’s requirements)

Max. input current: 20A (according to user’s system confguration)

Solar panels input route: 6, 8, 10, 12, 14,16, 18, 20 lines (according to user’s requirements)

Protection class: IP65
