3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter

Hongkong Powerlylian Co., Ltd
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter thumbnail-1
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter thumbnail-2
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter thumbnail-3
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter thumbnail-4
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter thumbnail-5
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter photo-1
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter photo-2
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter photo-3
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter photo-4
3 IN 1 Metal Detector Copper Wire Scanner Stud Finder With Laser Level Distance Meter photo-5
US$ 42 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Maka
Place of Origin:
China
Model Number:
MK2101K
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
35 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Maka
Place of Origin China
Model Number MK2101K

3 IN 1 Laser Distance Meter 40M with Metal Detector Copper Wire Scanner Stud Finder


3 IN 1 Multi-Function Mounted Measure Laser Distance Meter Wall Detector Scanner


Detector Funtion   Laser Distance Meter Function  Cross Line Laser Level Function


Detection function parameter
Maximum scanning depth*
Magnetic metal 12 cm
Non-ferrous metal (copper) 10 cm
Live wire 5 cm
Copper wire (≥4 mm2) 4 cm
Wood
20mm/38mm
Operating humidity range:
Metal mode 0-85%RH
Ac mode 0-30%RH
Laser ranging parameter
Accuracy of measurement
±5mm**
Unit
m/in/ft
Measuring range (no reflector)
0.05-40m***
Measuring time
0.3-4 seconds
Laser type
620~670nm,<1mw
Self-closing laser
20 seconds
Store the data
30 sets of data
Cross laser line parameters
Irradiation distance
A maximum of 5 meters is recommended
Laser type
620~670nm,<3mw or 510~530, <6mw
Flare shape
58°Cross laser line
Line width
＜5mm
Accuracy of deflection of Cross laser line
＜±0.5°
General parameters
Automatic shutdown time
About 5 minutes
The screen
1.8 inch color screen
Battery type and life
400mAH built-in lithium battery, single measurement about 5000 times
Product size
135*60*25mm
Operating temperature range
0 C°～40 C°
Storage temperature range
-20 C°～60 C°

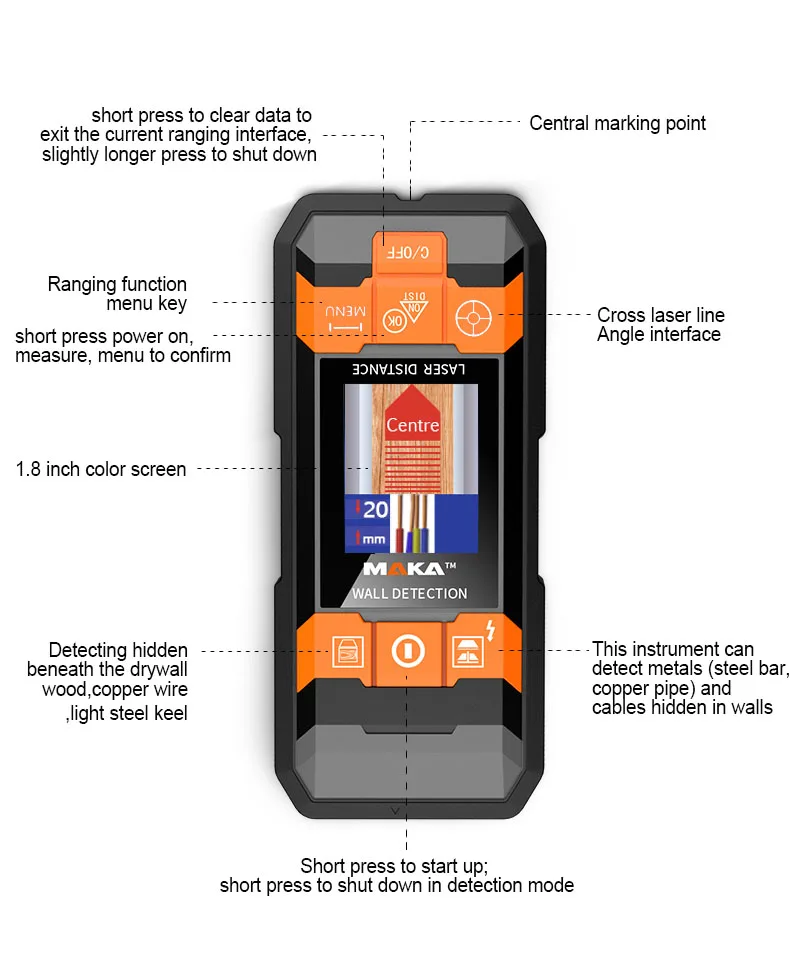

1. This instrument can detect metals (steel bar, copper pipe) and cables hidden in walls, ceilings and floors; Metal, cable, wood, etc under plasterboard.

2.This instrument can measure the length, area and volume of the house by laser ranging. Add and subtract measurement, Pythagorean measurement, etc

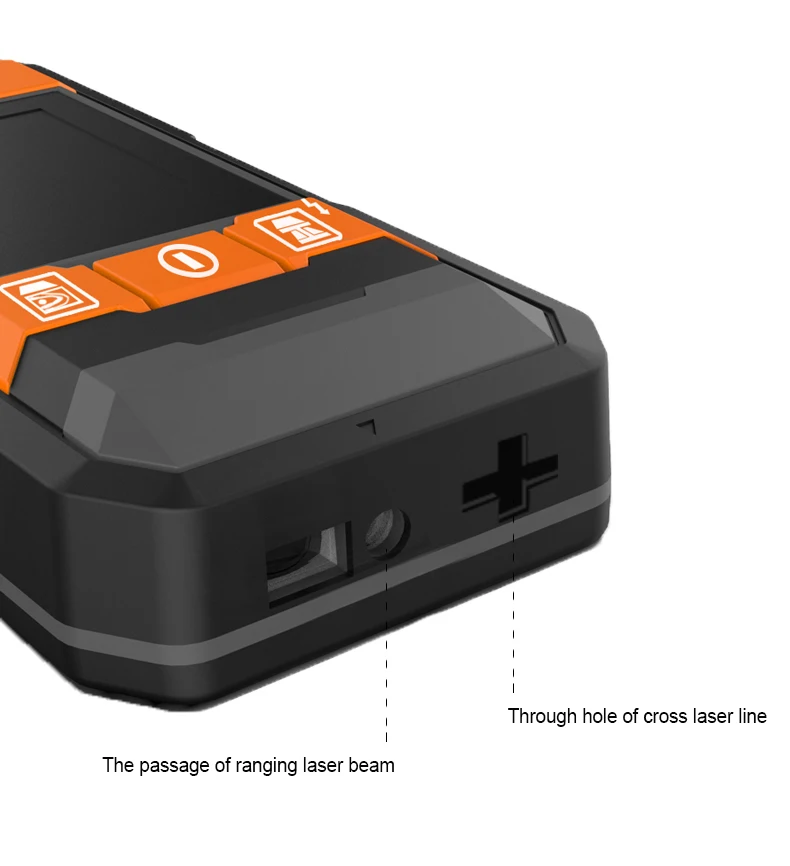

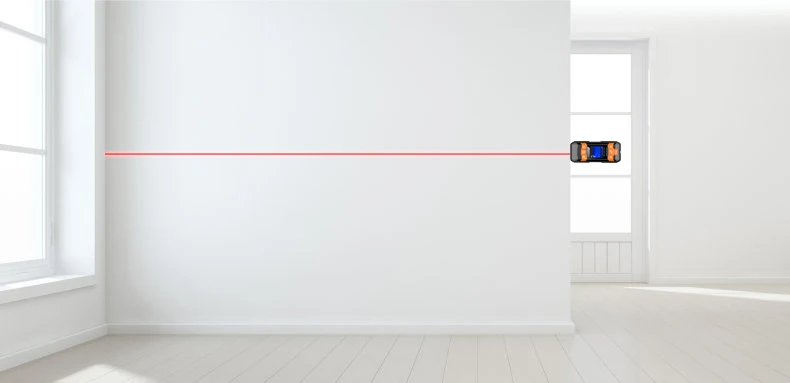

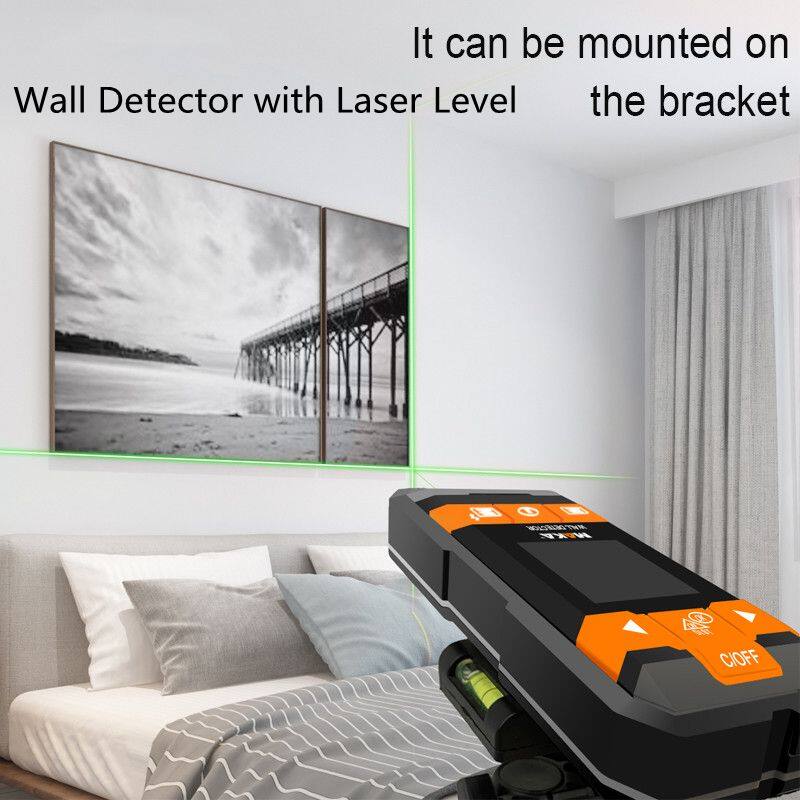

3. The instrument can emit cross laser line and realize the function of laser line marking with the Angle display of the display screen.
The detection results will be affected by the material, shape and size of the detected object, as well as the material and condition of the detected surface; If the cable is not live, the depth of the probe will be reduced.

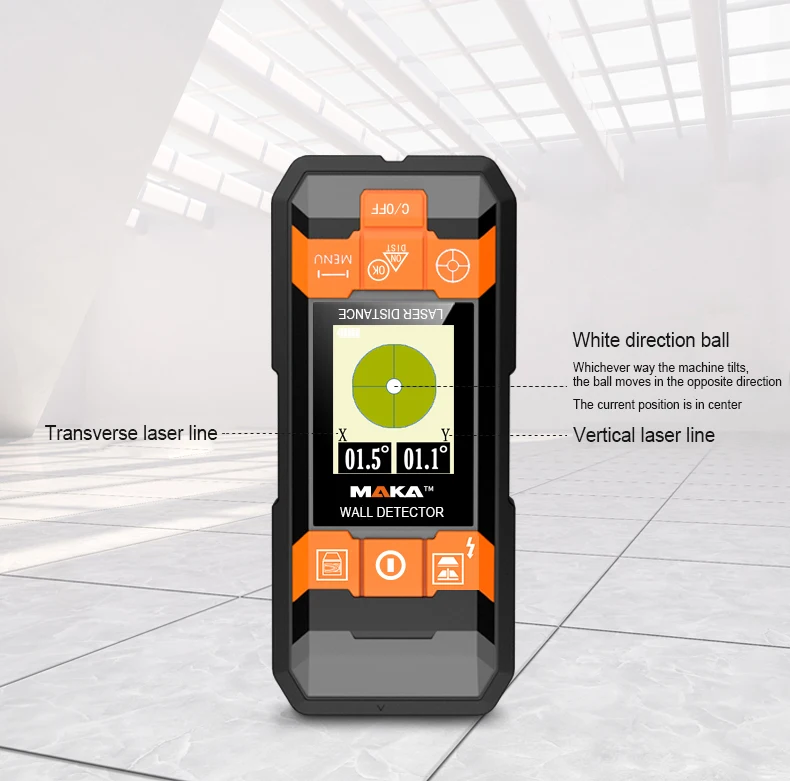

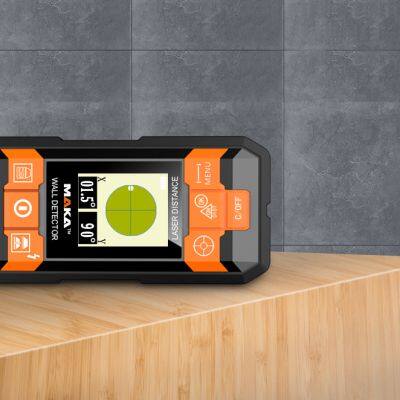

Introduction to Angle Instrument
Whichever way the machine tilts, the ball moves in the opposite direction. The current position is in center.

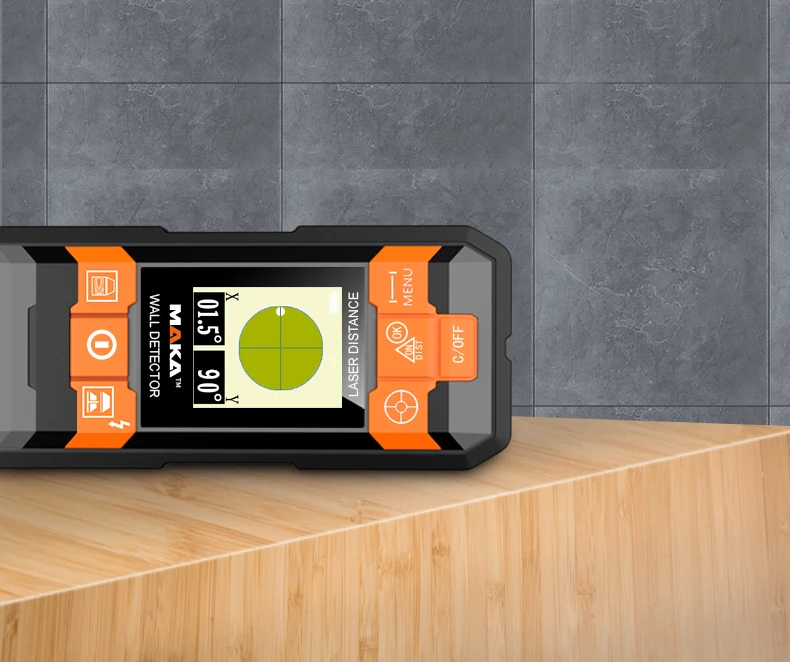

90° measurement, multi-purpose
X and Y are 90° each

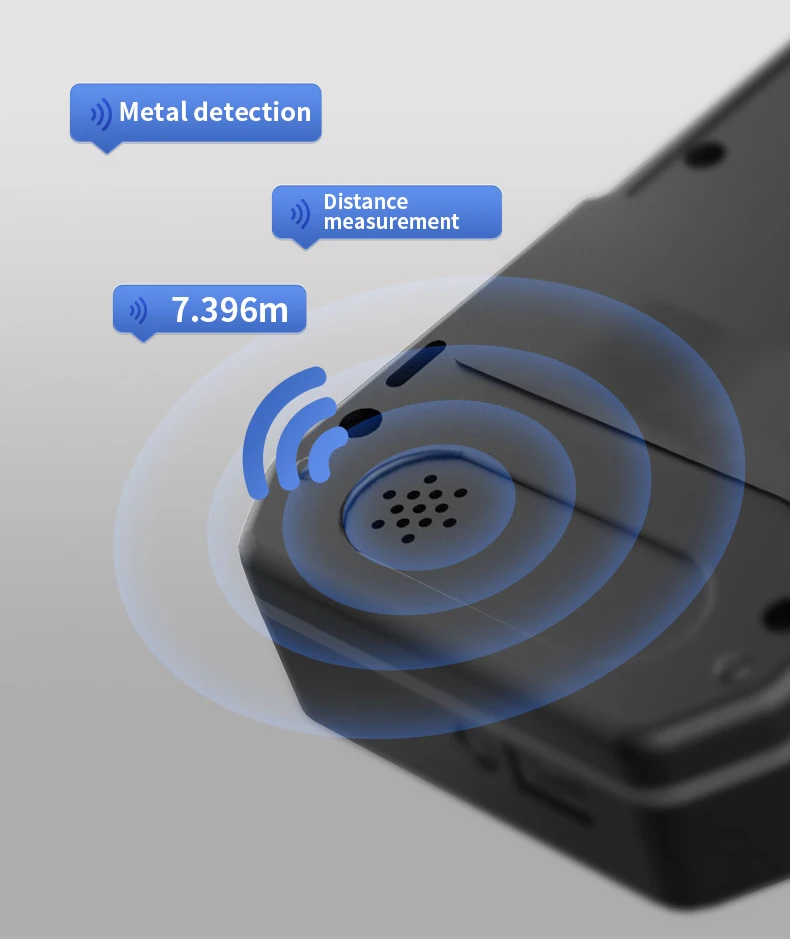

Real-time voice broadcast
Detection

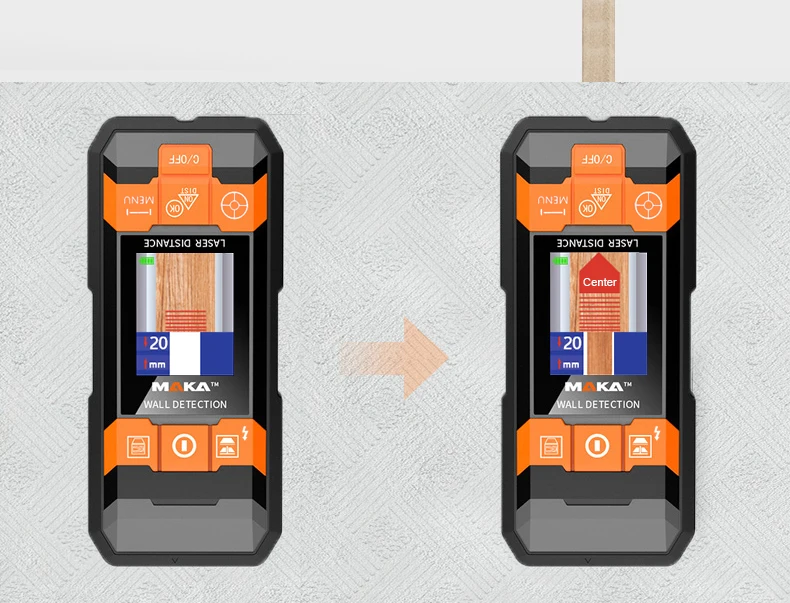

Wood detection                                                   constant speed ≤ 4cm/s
Distinguish the boundary from the center, long press the wood button for 3 seconds to switch to 38mm deep mode.

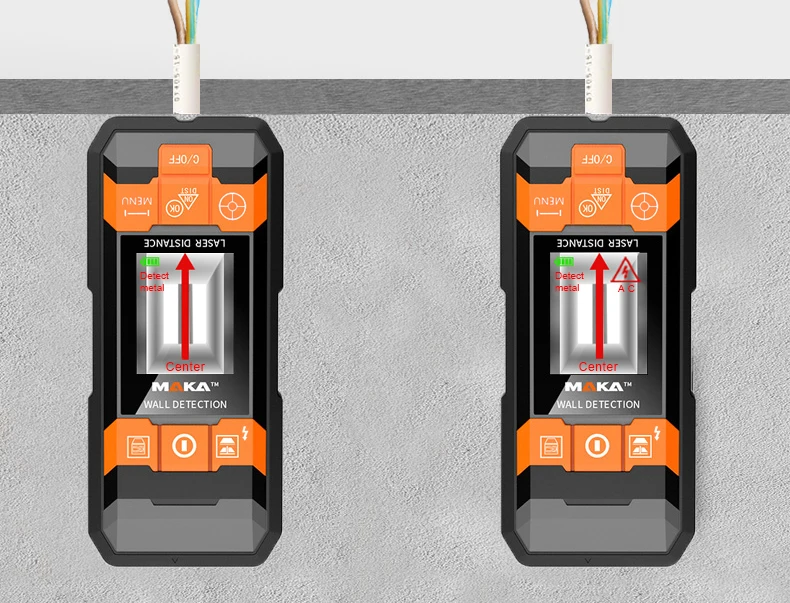

Copper wire detection                                         constant speed ≤ 6cm/s
Use the metal mode detection copper wire to show the center only, No depth display.AC icon appears when ac signal is received.When the ac signal is weak, the center of the wire tube shown on the screen shall prevail.
The speaker will announce "ac current" and then send out "drip-drip...".
*copper wire ≥4 mm² and single strands of copper wire.  The maximum detection depth is 4CM

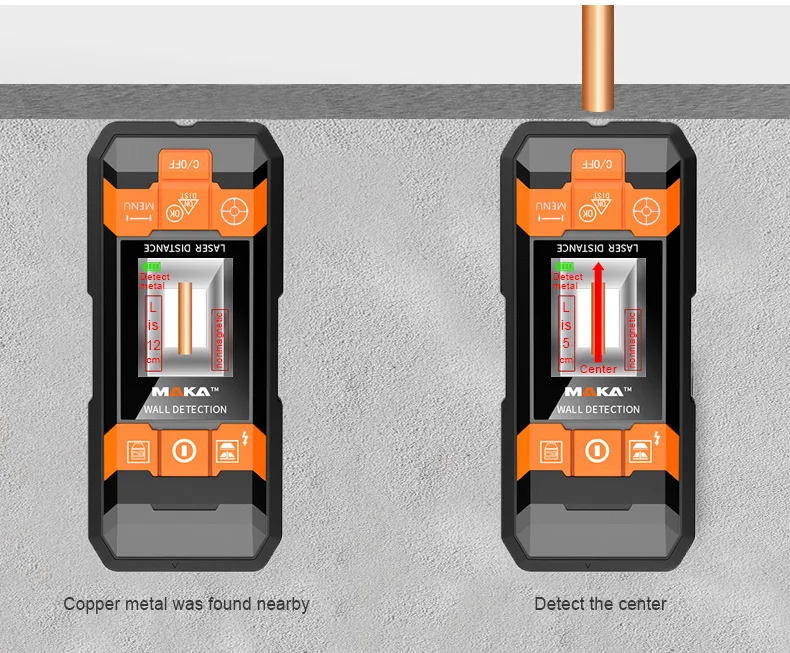

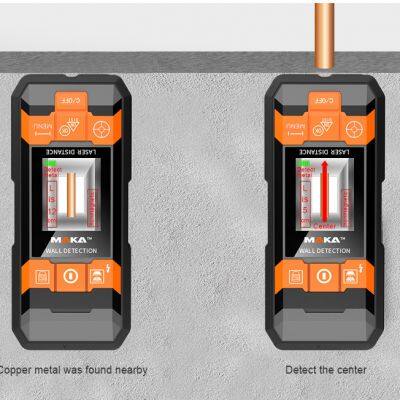

Nonmagnetic metal detection                           constant speed ≤ 6cm/s
To obtain the best scanning effect:
• Avoid wearing jewelry such as rings or watches when using detectors.Metals can lead to inaccurate detection.
• Do not touch the detector or scanned surface with the other hand or any other part of the body.
• Always detect slowly to achieve maximum accuracy and sensitivity.

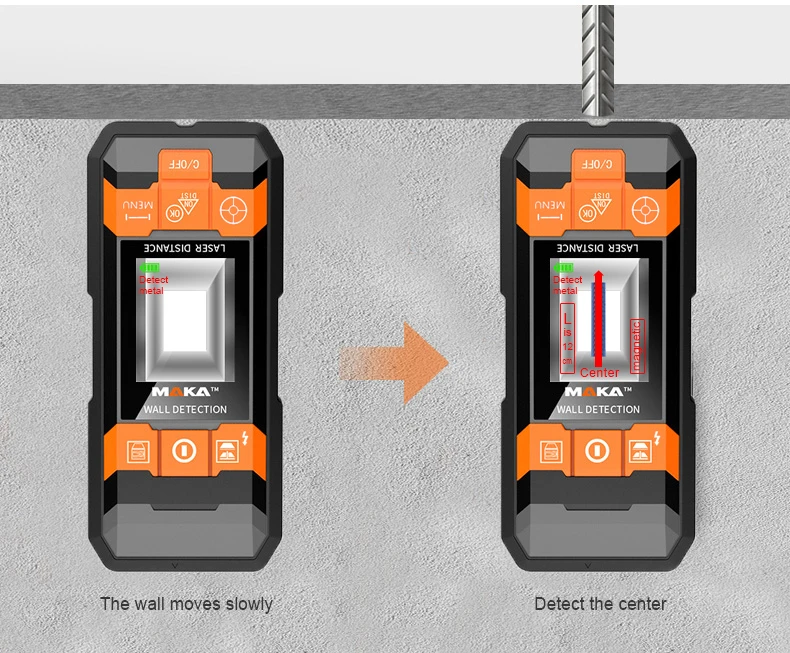

Detection of ferrous metals                            constant speed ≤ 6cm/s
Depth value accuracy is best when the measured object is a standard steel bar with a diameter of 18mm.
Single measurement
Press "DIST" to start the machine, place the machine, and then press "DIST" to measure.

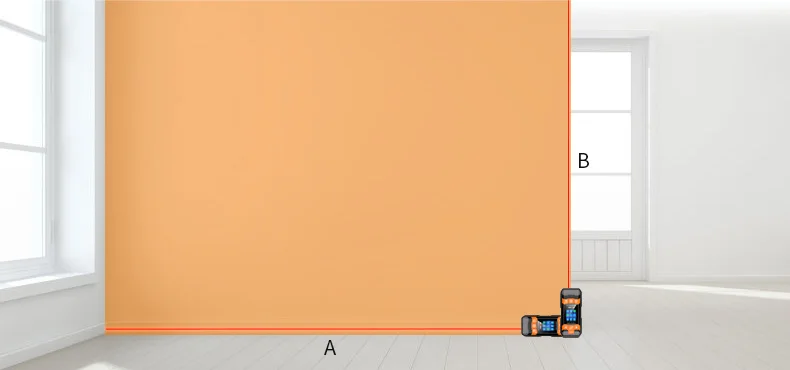

Area measurement

Press "DIST" to start the machine, press the Triangle button to enter the menu and select area measurement.




multi-functional wall detect scanner stud finder with laser level
