YC35 Excavator Slewing Ring Bearing Turntable Bearing

YC35 Excavator Slewing Ring Bearing Turntable Bearing thumbnail-1
YC35 Excavator Slewing Ring Bearing Turntable Bearing thumbnail-2
YC35 Excavator Slewing Ring Bearing Turntable Bearing photo-1
YC35 Excavator Slewing Ring Bearing Turntable Bearing photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
YC35
Contact Supplier Request Quote Chat Now
Luoyang Evon Engineering Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number YC35
Feature Four Point Contact
Seals Type Rubber Sealed
Outside Diameter 200, 2000
Bore Size 100, 1500
Gear Options Nongeared
Overview
Quick Details

  • Type:

  • Slewing Bearing

  • Applicable Industries:

  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, wind power

  • Brand Name:

  • HGB

  • Model Number:

  • YC35

  • Feature:

  • Four Point Contact

  • Gear Options:

  • Nongeared

  • Seals Type:

  • NBR

  • Place of Origin:

  • Henan, China

  • Application:

  • slewing ring

  • Precision:

  • ABEC3-5-7-9

  • Gear:

  • Internal Gear

  • Rolling element:

  • GCr15SiMn

  • Material:

  • 50Mn/42CrMo/Customized

  • Operating tempereature:

  • -40°C +150°C

  • Load direction:

  • Radial bearing

  • RACEWAY hardness:

  • 55~62HRC

  • nner and outer ring modulation hardness:

  • 229-268HB

  • Dimension:

  • 471*640*60mm
Supply Ability

  • Supply Ability

  • 1500 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • HGB Packaging Details:
    1. Bearing surface is covered with the anti-rust oil first; And then wrapped with the plastic film;
    2. And then packed with Kraft paper and professional belts;
    3. At last, with wooden box totally at the outer packing to in void the rust or the moist;
    4. Packaging can be done according to customer's requirements.

  • Port

  • China any Port

  • Lead Time:

  • Quantity(Sets) 1 - 1 >1
    Est. Time(days) 45 To be negotiated
Bearing Parts

Steel ball/Roller:carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling Material


Cage: include integral cage, segment cage and spacer-type cage. 20# steel or copper for integral and segment cages, PA 1010 resin or QA110-3-105 albronze for spacer-type cages.


Seals:uses NBR or VITON, few  felted wool.

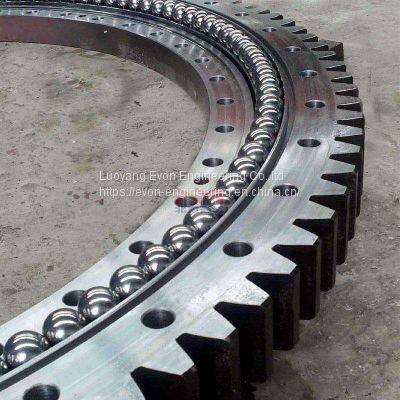

Single row four point contact ball slewing bearing

Single row four point composed of two seat rings.  has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.


Product Tags: Slewing bearing , Slewing ring
