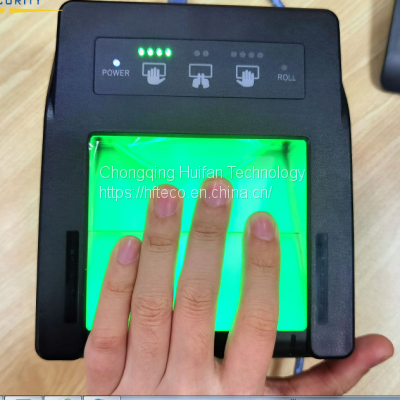

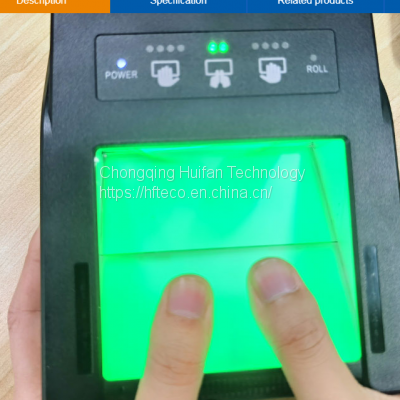

Home > Security & Protection > Access Control System > Fingerprint Access Control > Bio 7 Plus Ten-print Scanner
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HFSecurity HP300 Smart Fingerprint Gun Safe BoxNegotiableMOQ: 1 Piece -
HFSecurity HP400 Smart Bluetooth Fingerprint Gun Safe BoxNegotiableMOQ: 1 Piece
-
HF-OS300 Optical Sensor Biometric Fingerprint Scanner For Windows With SDKNegotiableMOQ: 1 Piece
-
HFOS300Plus Stamp Fingerprint Scanner for BankNegotiableMOQ: 1 Piece
-
HF4000 Affordable USB Windows Fingerprint ReaderNegotiableMOQ: 1 Piece
Place of Origin
China
• Slide detection for flat prints capturing
• Supports latent prints and halo elimination
• Automatic device calibration when scanner starts up
• Segmentation of slap into discrete single image
• Automatic sequence and image quality checking
• Correct finger position and slap completeness check
• Auto capture functionality to eliminate reprint issues
• Smart indicators for intuitive instructions
| Fingerprint Types | Four finger slaps, two thumbs, single flats/rolls |
| Image Size | 3.2” x 3.0” (1600 x 1500 pixels) for slap |
| 1.6” x 1.5” (800 x 750 pixels) for rolled | |
| Capture Area | 3.6” x 3.2” (92mm x 81mm |
| Resolution | 500 dpi, 256 levels of gray |
| Image & Template Format | BMP, WSQ, ISO19794-2/4, ANSI/NIST 378 |
| Acquisition Mode | Auto capture or manual mode |
| Smart Indicators | Power, finger position and rolls status LED |
| Buzzer | On board programmable buzzer |
| MTBF | More than 50,000 hours |
| Dimensions | 160mm(L) x 135mm(W) x 90mm(H) |
| Weight | 1.2 kg |
| Interface | USB 2.0 for data transfer & power supply |
| Operating System | Windows, Android |
| Software | Scan demo and essential APIs |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
