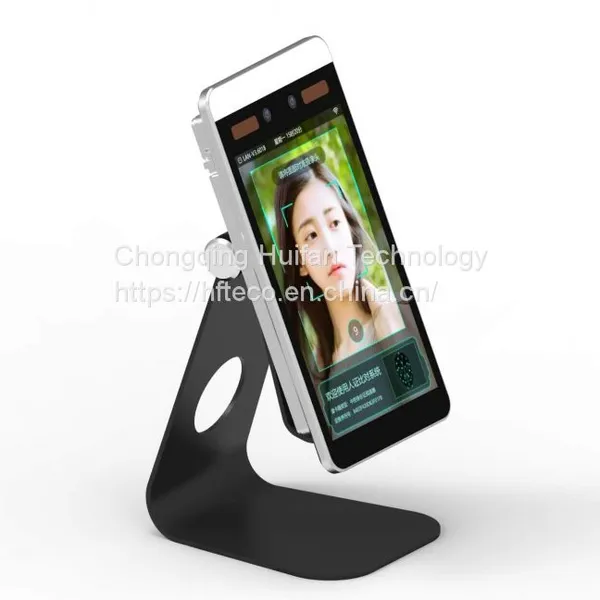

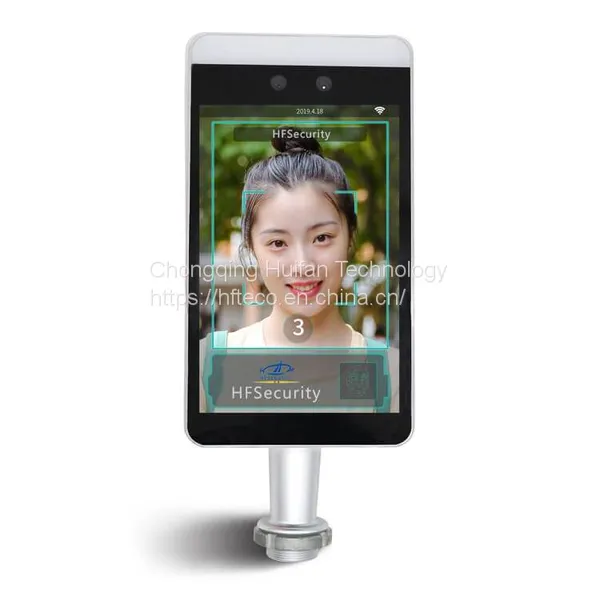

RA08 8 Inch Dynamic Facial Access Control

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2005

Overseas Office:

Yes

Chongqing Huifan Technology

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

● Support wired, wireless (2.4G Wi-Fi)

● 8 inch IPS 800*1280

● 2GB RAM, 8GB ROM

● Serial Communication Interface: RS232/RS485

RA08 8 inch Dynamic Facial Recognition
Screen
Dimension	8 inches screen, full view angle, IPS LCD screen
Resolution	1280×800
Camera
Dual Camera	200W (RGB Camera) ; 130W (Infrared Camera)
Type	Wide dynamic camera
Aperture	4mm
Focal Length	0-2m
White Balance	Automatic
Wide Dynamic	Support
Vertical Wide Angle
Horizontal Angle
Core Parameter
CPU	4 cores, 1.8GHz
Memory	2GB RAM, 8GB ROM
Accessories
Filling Light	LED filling light
Card Reader (Optional)	Ic card reader
Network Module	Support wired, wireless (2.4G Wi-Fi)
Interface
Audio	1 channel audio output (line out)
Serial Communication Interface	RS232/RS485
USB Interface	USB2.0 interfaces, 1 OTG interface
Relay Output	Only COM and NO
Wiegand Interface	support Wiegand 26/34 input /output
Reset Interface	Yes
RJ45	Yes
Function
Face Detection	Support detecting and tracking 5 people at the same time
1:N Face Recognition	99.99%
1:1 Person Certificate Comparison	More than 99%
Stranger Detection	Support
Remote Upgrade of Equipment	Support
Recognize Distance	Support
Protection Level	IP64, certain dustproof and waterproof function
General Parameters
Power Supply	DC12V (±10%)
Operating Temperature	-10 ° C ~ 60 ° C
Working Humidity	10% to 90%
Power Consumption	10W MAX

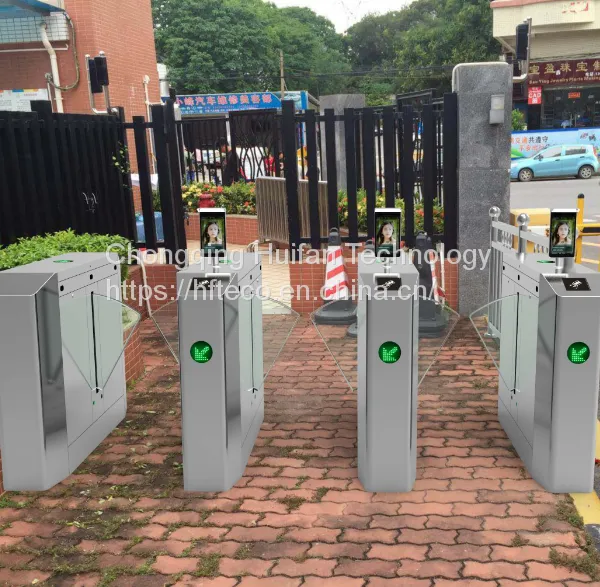

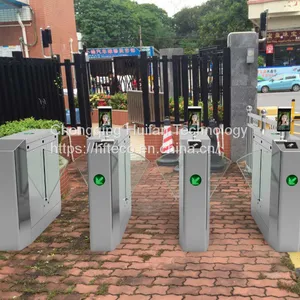

Installation Method	Turnstile, Wall mounted, Desktop, Floor Type
Device Size	234(L)125(W)24.5(H)mm
Weight	1.5KG (Device Only)
