High precision magnetic grid 1um/5um/25um/5v/24v/reading head / electronic ruler / grating ruler / digital display meter / digital display ruler

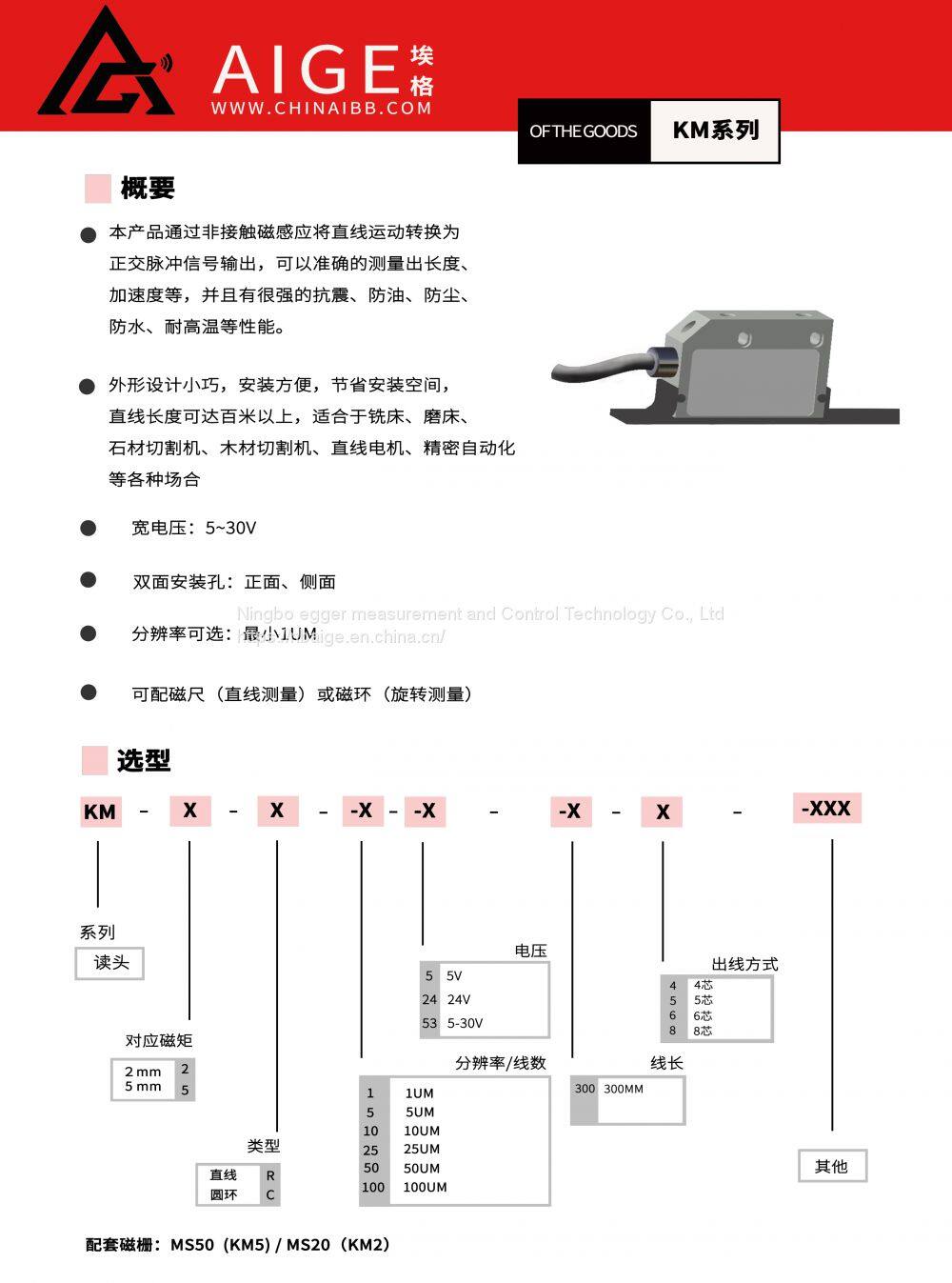

Overview of magnetic grid ruler:

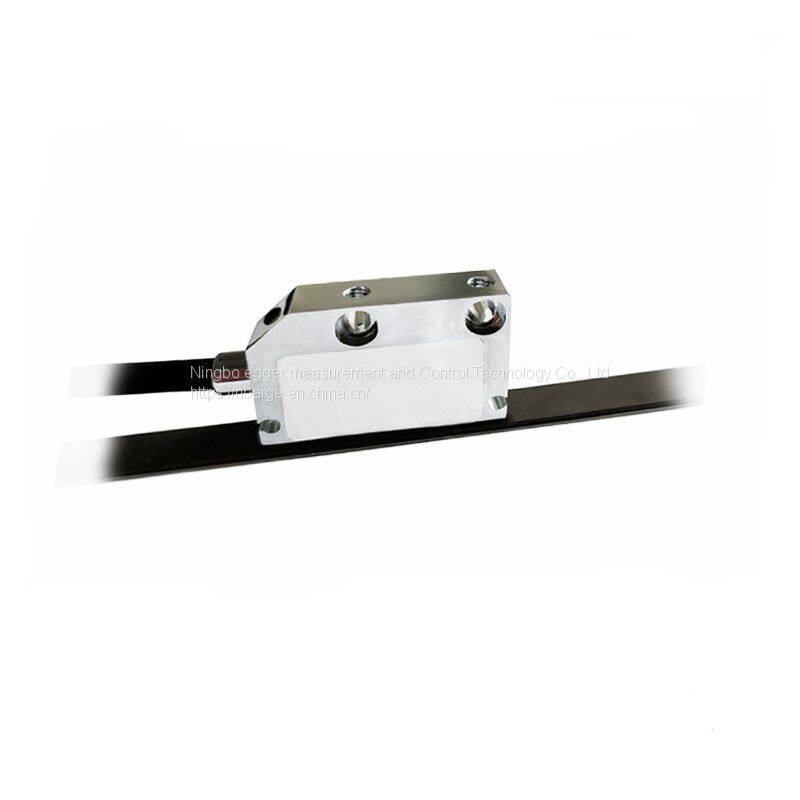

1. Composition: magnetic grid ruler + reading head

2 Definition: the reading head reads the equally spaced magnetic wave recorded on the magnetic grid ruler, and then corresponds to the corresponding length and position

3 Purpose: the magnetic grid ruler is economical and durable. It is suitable for long-distance measurement or transmission measurement, especially for harsh environments such as oil stain, cutting debris, vibration and so on.

4 working principle: non-contact scanning magnetic field measurement, and convert the analog measured value into or incremental output signal.
