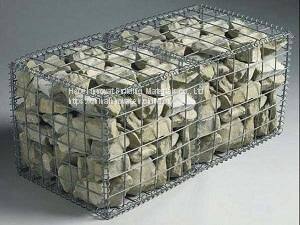

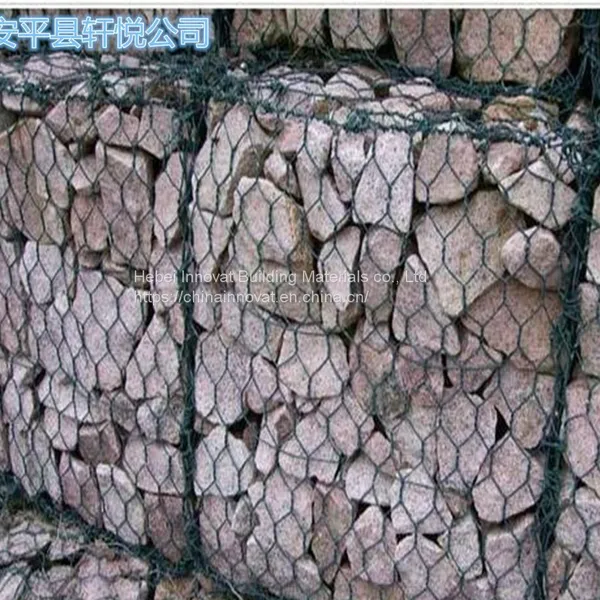

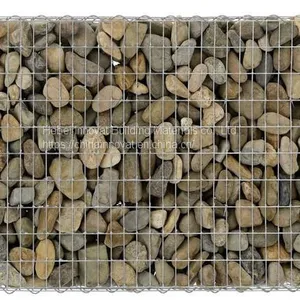

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Specification
gabion specifications | Mesh hole modle | |||||
8x10cm | 6x8cm | |||||
Length (m) | Width (m) | Height (m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
Mesh diameter | Zinc | Mesh diameter | Zinc | |||
2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
Length(m) | Width(m) | Height(m) | Volume(m³) |
2 | 1 | 0.5 | 1 |
4 | 1 | 0.5 | 2 |
6 | 2 | 0.5 | 6 |
1.5 | 1 | 1 | 1.5 |
1 | 1 | 1 | 1 |
2 | 1 | 1 | 2 |
3 | 1 | 1 | 3 |
4 | 1 | 1 | 4 |
2 | 0.5 | 0.5 | 0.5 |
4 | 0.5 | 0.5 | 1 |
Opening (mm) | Wire Diameter (mm) | Wire Diameter(PVC Coated) Inner/outside(mm) | Strands |
60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
Gabion Size(m) | Mesh Model | |||||
8x10 | 6x8 | |||||
Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated | ||
Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight | |||
2m | 1m | 1m | 2.7mm | >245g/m2 | 2.0mm | >215g/m2 |
3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
6m | 1m | 1m | Lacing wire 2.7mm | Lacing wire 2.0mm | ||
Applications:
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
Packing&Delivery
Payment terms:
T/T or L/C
Why choose us
a. Material
We purchase raw material from Taiyuan Iron & Steel (Group) Co., Ltd.,which enjoys great popularityService
b.All end-products has to go through meticulous inspection , when they are up to standard we will arrange the delivery.
c.Substantial experience
We have over 20 years experience in metal&building materials filed, and we always catches the latest trend in the world
d.Own factory
Our two factories are situated in Anping and Raoyang(Hebei) with support production which can guarantee stable quality and constant supply.
e.Team work
Our staff is well-trained and educated in this industry. We will save you money in the end because of our efficiency and know-how.
