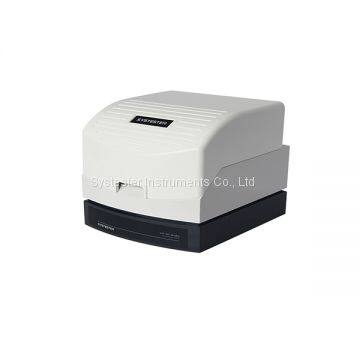

Air Bath Heating Shrinkage Test TD & MD Shrink Testing Machine Oil Free

Air Bath Heating Shrinkage Test TD & MD Shrink Testing Machine Oil Free

Application

This instrument is suitable for the highly accurate and digital measurement of heat shrinking force, shrinkage ratio and contracting force of various

heatshrinkable films. Usually film samples include stretch film, blown film,

shrink wrap, battery separation membranes, etc.

Air Bath Heating Shrinkage Test TD & MD Shrink Testing Machine Oil Free

Features

1. One-click test, test results will automatically display on the screen.

2. Built-in 3 test stations, each station can independently complete the

shrinkage force, contracting force and shrinkage ratio test.

3. Force curves and ratio curves display with single and multiple display

technology.

4. Highly accurate shrinkage ratio test relies on our exclusive technology.

5. Oil free operation, no contamination.

6. Built-in embedded system, easy to remote maintenance and upgrades.

7. Computer control

8. DB9 RS232 communication port.

9. Professional computer software for data analysis and output.

Air Bath Heating Shrinkage Test TD & MD Shrink Testing Machine Oil Free

Technical indexes

1. Force Range: 100N(STD)

2. Force Accuracy: 0.05%FSMAX

3. Shrinkage Ratio: 100mm

4. Shrinkage Ratio Accuracy: 0.1mm

5. Hood Temperature: room temperature~260℃

6. Temperature Accuracy: ±0.3℃

7. Sample Size: width: 15mm; length: >100mm

8. Work Station: 3, independent

9. Gas Resource: 0.1MPa-0.8MPa(air; free oil, water and dust)

10. Gas Interface: Ф8mm

Standard

ISO 14616, DIN 53369
