Home > Industrial Equipment & Components > Bearing > Slewing Bearing > 1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing

1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing

1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing thumbnail-1
1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing thumbnail-2
1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing photo-1

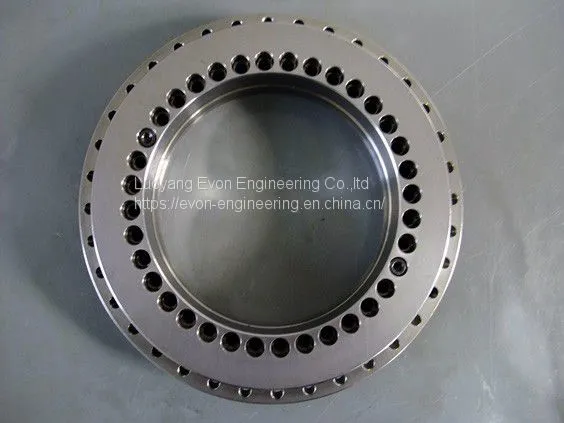

1792 1400G Little Friction Wind Generator Machinery Large Gear Ring Cross Roller Slewing Swing Bearing photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
1792 1400G
Contact Supplier Request Quote Chat Now
Luoyang Evon Engineering Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number 1792 1400G
Feature Cross Roller
Seals Type Rubber Sealed
Outside Diameter 120, 1400
Bore Size 100, 1250
Gear Options External Gear Only
Overview
Quick Details

  • Type:

  • Slewing Bearing

  • Applicable Industries:

  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining

  • Brand Name:

  • E-FIND

  • Model Number:

  • 1792 1400G

  • Feature:

  • CROSS ROLLER

  • Gear Options:

  • External Gear Only

  • Seals Type:

  • sealed

  • Place of Origin:

  • luoyang

  • Product Name:

  • 1792 1400G Cross cylindrical roller slewing bearings

  • Material:

  • Gcr15SiMn/42CrMo/50Mn

  • Service:

  • OEM Customized Services

  • Certificate:

  • ISO

  • PAYMENT:

  • T/T

  • Application:

  • Machine Tools

  • Hardness:

  • Quenching

  • Package:

  • Wooden Box

  • CAGE:

  • customization

  • heat treatment:

  • Customized
Supply Ability

  • Supply Ability

  • 1000 Piece/Pieces per Year

Packaging & Delivery

  • Packaging Details

  • vacuum package
    Wrapped package
    wooden box package

  • Port

  • shanghai port qingdao port or major port of china

1792 1400G Little friction wind generator machinery large gear ring cross roller swing bearing
Crossed cylindrical roller slewing/ turntable bearings:    The single-row crossed cylindrical roller turntable bearing is composed of two races. It has a compact structure, light weight, high manufacturing accuracy, small equipment clearance, and high installation accuracy requirements. Overturning moment and large radial force.

Type
 Single row four point contact ball slewing bearing
 Single row crossed cylindrical roller slewing bearings
 Double row crossed cylindrical roller slewing bearings
 Double row ball slewing bearings
 Double row Roller/ball combination slewing bearing
 Three-Row Roller Slew Ring Bearing
 Wind power bearings
Non-standard customized slewing bearing with inner/ outer gear
Rollng elements
Steel ball / Cylinder Roller
Bearing Material
50Mn/42CrMo/42CrMo4V /Customized
Cage Material
Nylon/ steel /copper
Structure
taper pin, Mounting holes, Inner ring, grease fitting, load plug, seals, roller, spacer balls or separators
Outer diameter
50-10000mm
Bore size
50-10000mm
Mounting hole
Through hole/Tapped hole
Raceway hardness
55-62HRC
Inner and outer ring
modulation hardness
229-269HB/Customized
Gear type
No gear, Internal gear, External gear
Certificate
SGS, ISO9001


Application area
Ladle turret, Stacker crane, Bucket wheel machine, Solar heliostat Tracking System, port crane, Cabling machine, tower crane, offshore platform, ferris wheel, Palletizing robot, Rotary metallurgical furnace, can packing machine, Wind blade transporter, shield tunneling machine, tube push bench, excavator
Payment term
T/T, WU, Moneygram, Paypal, etc
Packing details
Professional exporting package with instruction manual & certifications in wooden case outside.
Product Paramenters
(model)
1792/1400G



Boundary dimensions)
D
1715
d (mm
)
1400
H
110

Bolt hole diameter(mm)
D₁
1600
D₂
1460
n₁
42
n₂
42
ɸ1
26
ɸ2
26

Structure dimensions(mm)
D3
1558
d1
1526
H1
95
h
17
n3
4
ɸ3
M12×1.25

Gear parameters
m
12
Da（mm）
1780.8
Z
147
b（mm）
78
x
-0.3
Basic load ratingsCoa 104N
597
Mass（kg）
597
                            click here for more technical support
