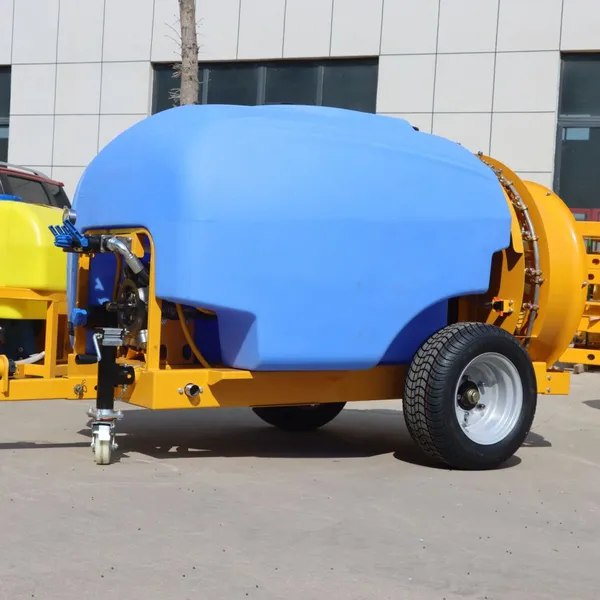

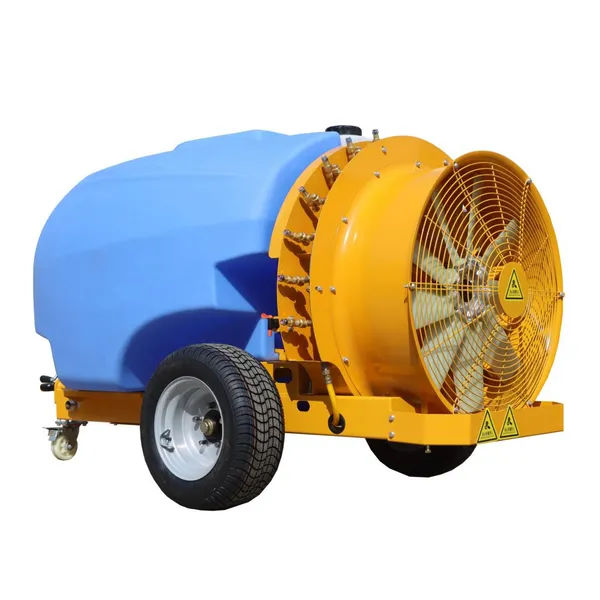

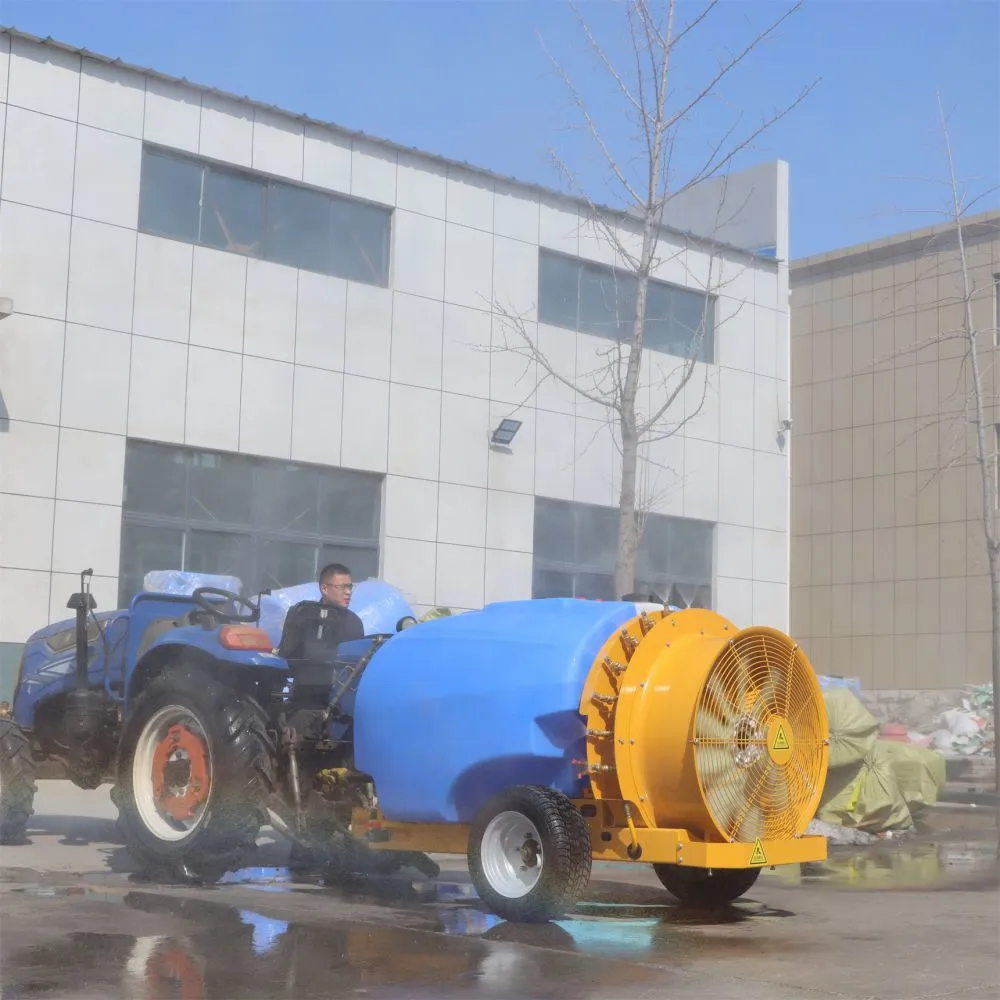

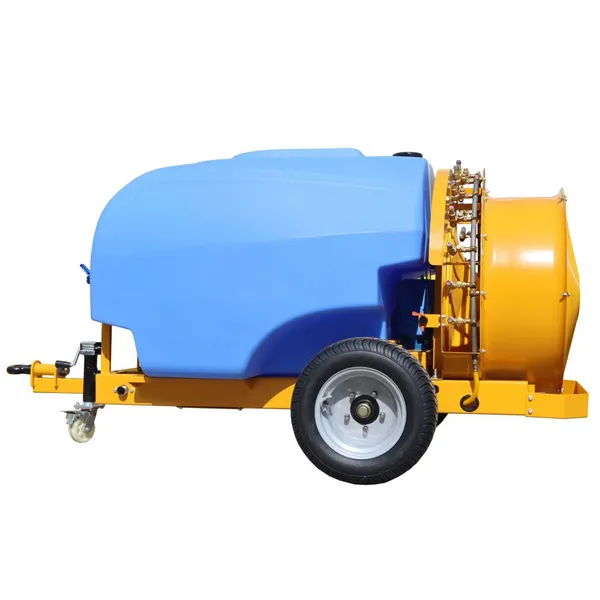

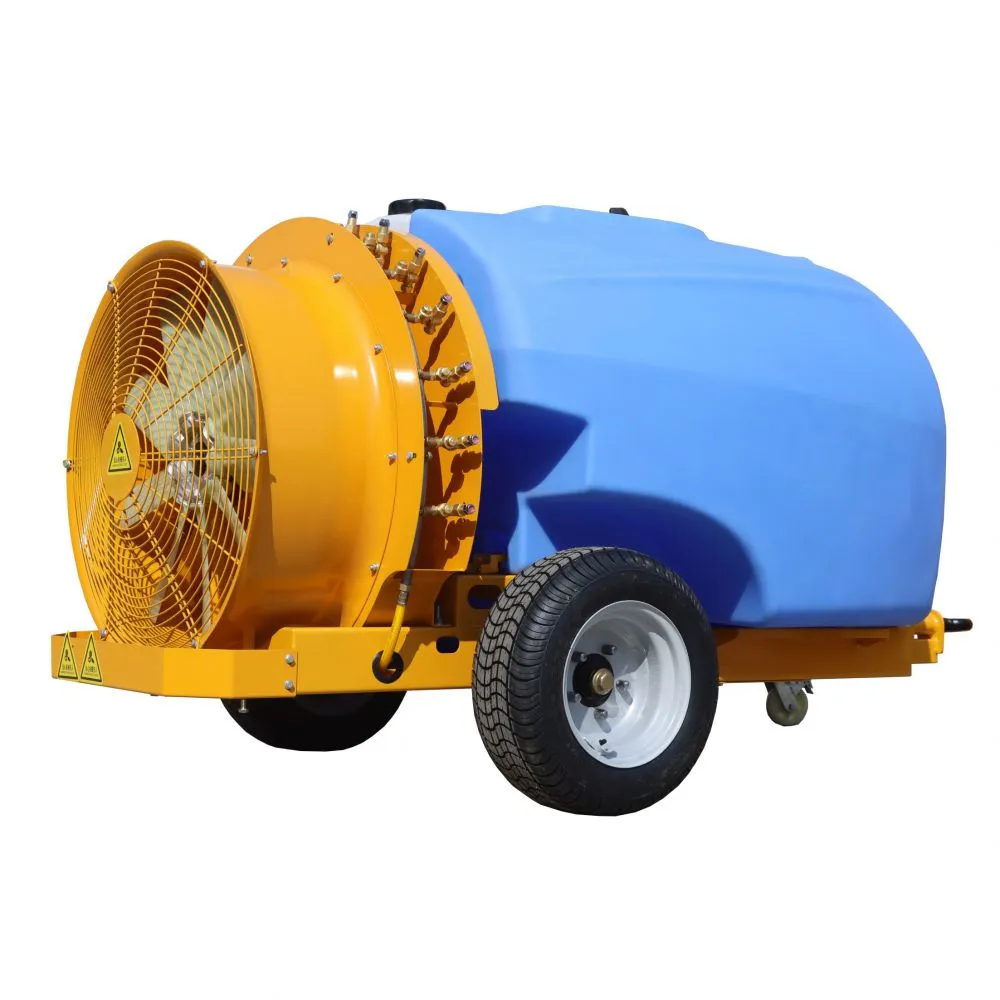

tractor trailer type air blast sprayer

Tractor trailed type garden air blast power sprayer:

Tank capacity: PE material 800L/1000L/1600L/2000L

Matching tractor: tractor power from 50-150HP

Matching sprayer pump: 4 cylinder/ 6 cylinder diaphragm pump

Matching gearbox: rate 1:4 Speed increasing box

Matching sprayer nozzle: Imported quality copper body ceramic double jet nozzle

Sprayer fan diameter: 800 mm

Sprayer height: 2-5 m According to different fruit trees

Applicable range: peach trees, apple trees, vineyards, vegetable gardens, orchards and so on.

Model 3WFQ-800

Overall size 2050x1350x1350 mm

Tank capacity 800 L

Tractor power ＞50HP

Work height ＞4-6m

Work width ＞10-15m

Sprayer pump 4 cylinder/6cylinder diaphragm pump

Flow 15-60 L

Fan diameter 800 mm

Tyre Ordinary tire

PTO drive speed 540r/min

Spray control type Section control / independent switch

Nozzle quantity Copper ceramic nozzle 10-14pc

Liquid mixing type Reflux / jet mixing

work efficiency 0.5 ha

Filter unit Two-stage filtration

Model 3WFQ-1000

Overall size 2100x1400x1400 mm

Tank capacity 1000 L

Tractor power ＞40HP

Work height ＞4-6 m

Work width ＞10-15 m

Sprayer pump 4cylinder / 6 cylinder Diaphragm pump

Flow 15-60 L

Fan diameter 800 mm

Tyre Vacuum width tyre

drive shaft speed 540r/min

Spray control type Sectional Control/Independent Switch

Sprayer nozzle 10-14 Pcs

Liquid mixing type Reflux stirring/jet stirring

Work effect 0.5 ha

Filter unit Two-stage filtration
