Home > Industrial Equipment & Components > Bearing > Slewing Bearing > Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable

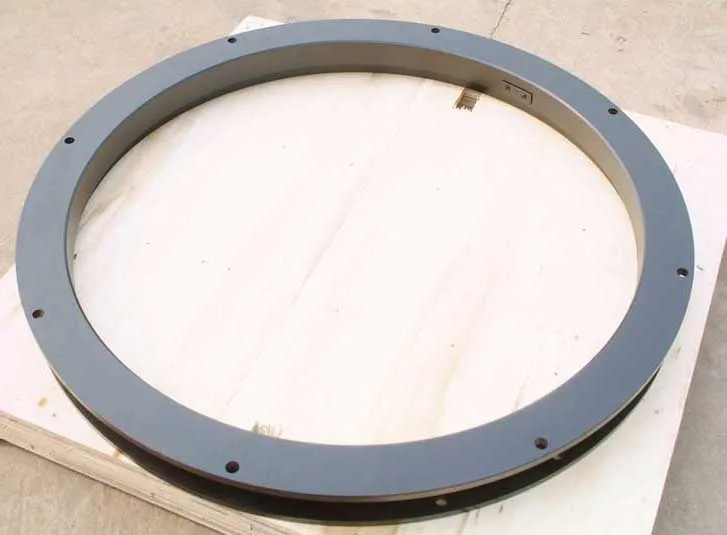

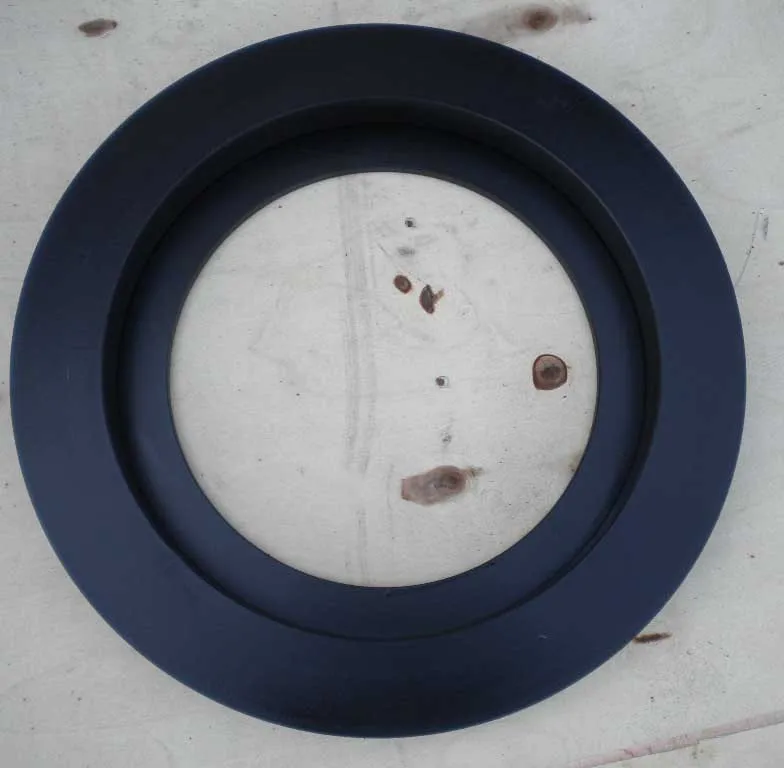

Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable

Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable thumbnail-1
Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable thumbnail-2
Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable photo-1
Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable photo-2
US$ 100 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EVON
Place of Origin:
China
Model Number:
OEM
Contact Supplier Request Quote Chat Now
Luoyang Evon Engineering Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EVON
Place of Origin China
Model Number OEM
Feature Cross Roller
Seals Type Rubber Sealed
Outside Diameter 300, 1300
Bore Size 100, 500
Gear Options Nongeared
Quick Details

  • Use:

  • Trailer Parts

  • Parts:

  • Trailer Plugs

  • OE NO.:

  • Bearing Swivel Trailer Turntable

  • Max Payload:

  • 20 ton

  • Size:

  • 500mm-1300mm

  • Place of Origin:

  • Fujian, China

  • Brand Name:

  • LAHOO

  • Section Type:

  • U, UA, UB, UC

  • Highness:

  • 55,60,80,90mm

  • Material:

  • Nodular Cast Iron or Fe360D Steel

  • Dia.:

  • 400mm,500mm, 685mm,700mm,880mm,1000mm,1022mm,1100mm,1200mm,1300mm

  • Ball dia.:

  • 12mm,16mm, 22mm

  • Color:

  • Black, Red, Blue or as your requirements

  • Track Type:

  • Doubel track and sigle track for your option

  • Design:

  • Common type or Special design according to cstm

  • Market:

  • Europe, America, Africa, Australia and Asia.

  • Certification:

  • ISO,TS16949
Supply Ability

  • Supply Ability

  • 20000 Piece/Pieces per Month

Packaging & Delivery

  • Packaging Details

  • Casting 1100 Double Ball Bearing Slewing Ring Trailer Turntable: By pallets.

  • Port

  • Xiamen,Tianjin

Product Description



1>Semi-trailer and heavy truck turntables.

2>Double track and single track are available.

3>Mechanical turntable is available.

4>Different outside diameter is available.

5>Different inside diameter is available.

6>Different height is available.

7>Different thickness of the material is available.

8>Surface treatment is according to customers’ demand.



Single row roller tractor truck turntables detailed technical product description:

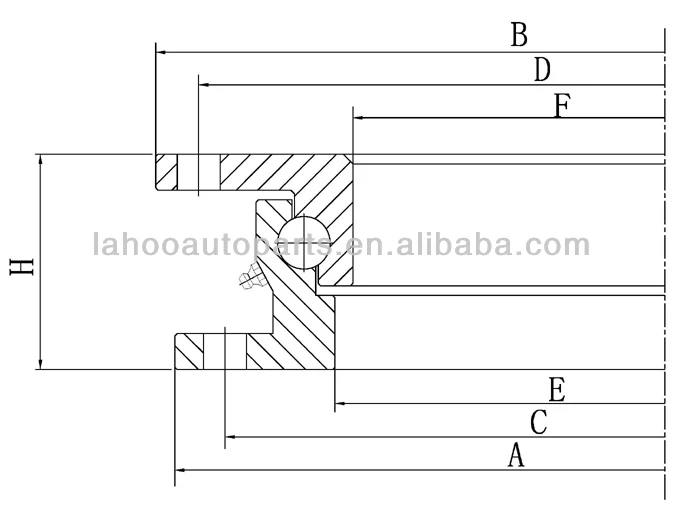

UB Type Single Ball/Casting turntable:

  Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable

tem No. A B  E   F     H      Weight Ring Thickness Ball Dia.
mm mm mm mm mm Kg mm
  LHTS500-A01 500 500 392 376 55 32 10 16
  LHTS685-A01 685 700 590 565 80 45 13 16
  LHTS880-A01 880 895 779 754 80 60 13 16
  LHTS1000-A01 1000 1015 885 860 80 76 14 22
  LHTS1000-A02 1022 1013 879 856 90 85 14 22
  LHTS1000-A03 1000 1015 885 860 90 84 14 22
  LHTS1100-A01 1100 1115 985 960 90 98 15 22
  LHTS1100-A02 1100 1111 983 949 90 98 15 22
  LHTS1200-A01 1200 1211 1083 1050 90 110 15 22
  LHTS1300-A01 1300 1315 1180 1146 90 118 16 22
  LHTS1300-A02 1300 1315 1185 1160 90 118 16 22
Item No. A B  E   F     H      Weight Ring Thickness Ball Dia.
mm mm mm mm mm Kg mm
  LHTD650-B01 650 665 552 510 80 74 14 16/19
  LHTD880-B01 880 895 780 740 80 80 14 16/19
  LHTD1000-B01 988 1000 870 830 92 88 14 16/19
  LHTD1096-B01 1096 1110 990 950 80 100 14 16/22
  LHTD1100-B01 1095 1108 975 940 92 100 15 16/22
  LHTD1200-B01 1195 1208 1076 1040 92 118 15 16/22
  LHTD1200-B02 1198 1215 1075 1040 92 120 16 16/22

Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable

Casting 1100 Double Ball Bearing Slewing Ring Semi Trailer Turntable
