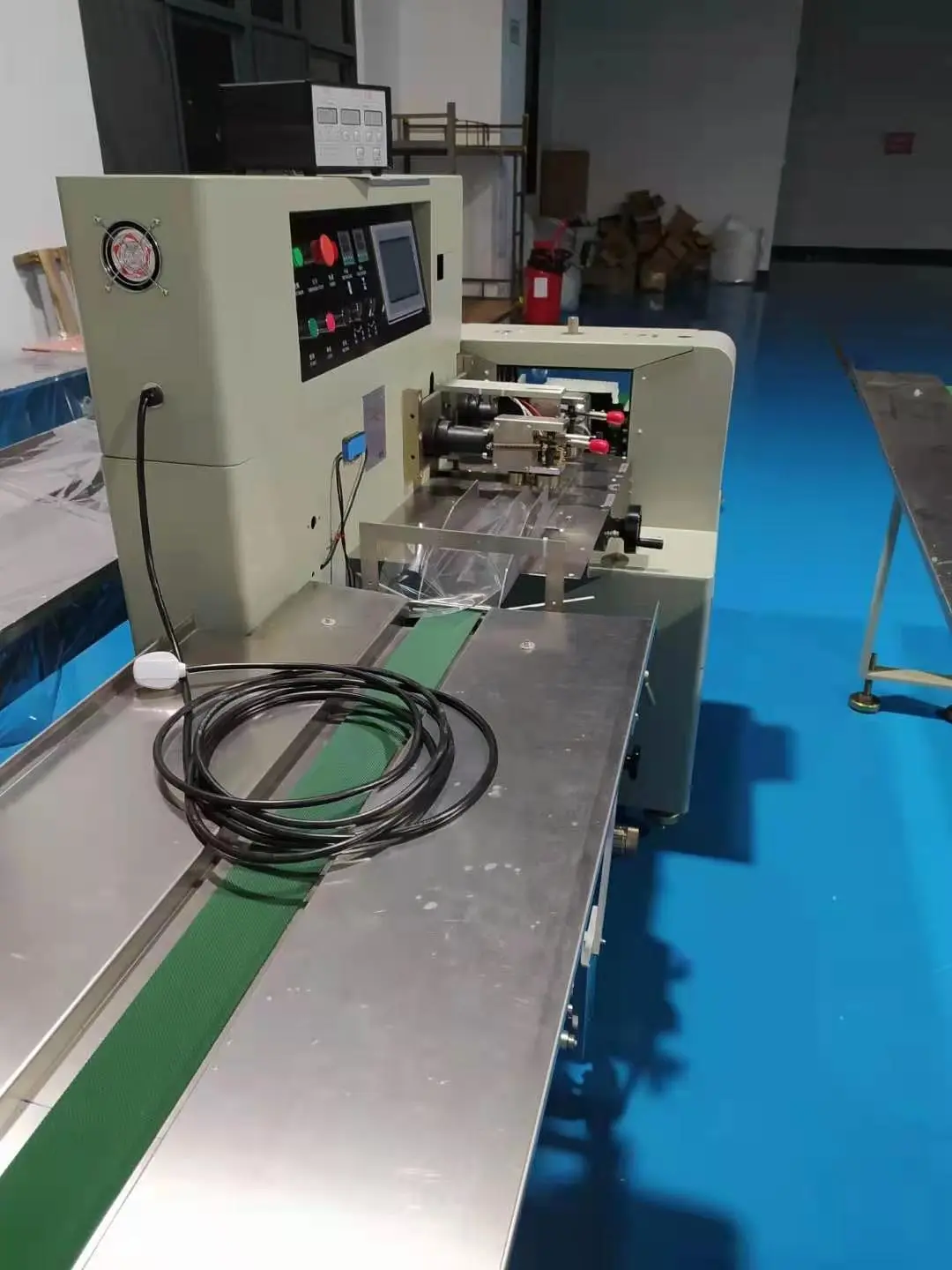

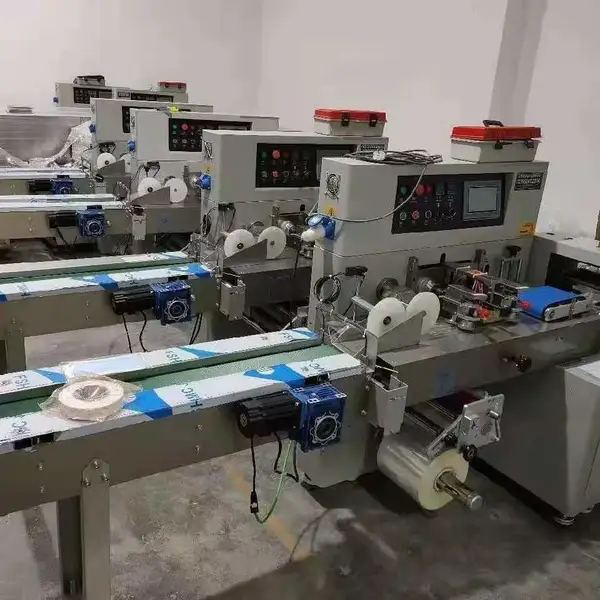

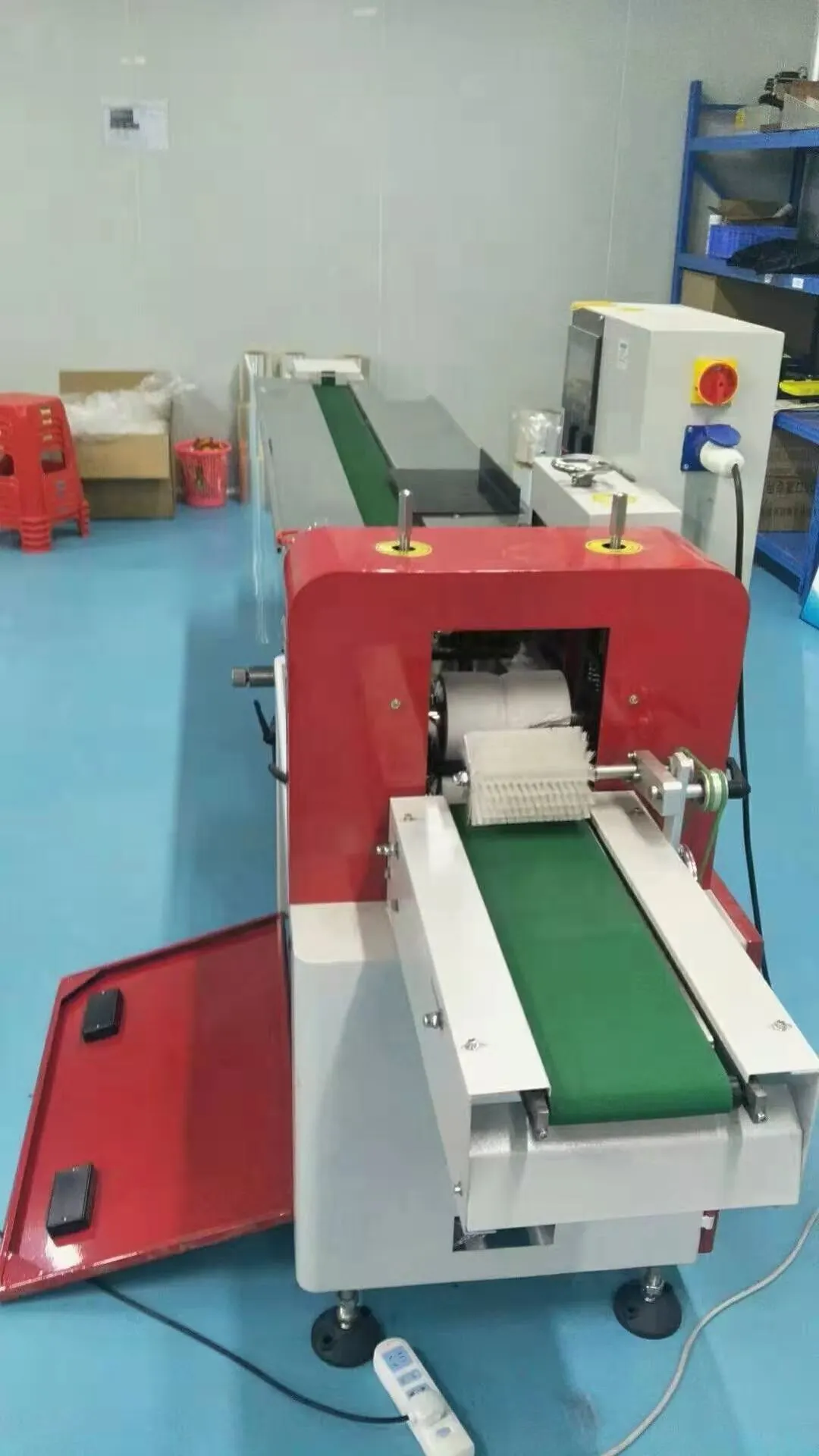

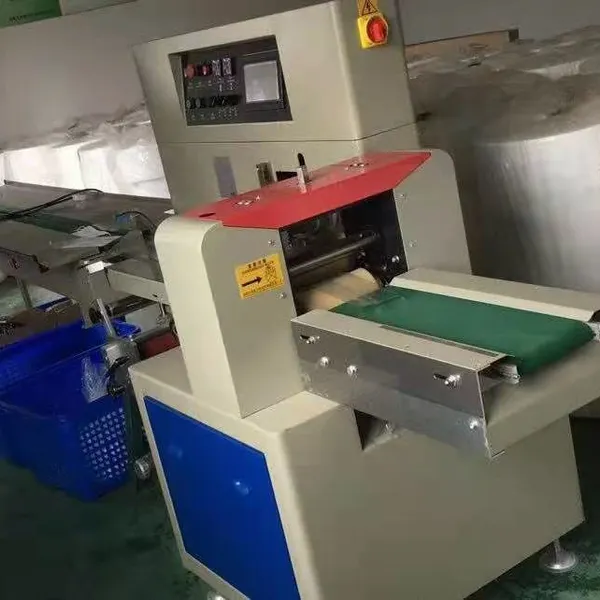

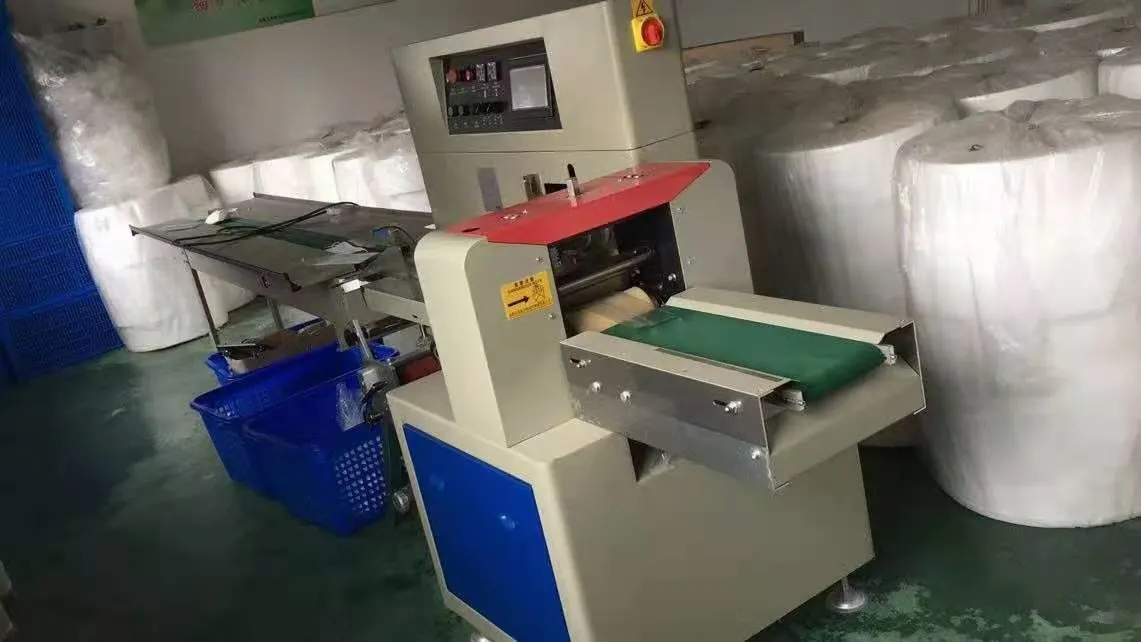

High Speed Kf94 Mask Packaging Machine Packaging Forming Machines

Packing Material:Suitable for composite membrane, aluminum-plastic film, pure aluminum film, aluminum plating film, laminating paper, etc.

Working Process:

Horizontal flow packing is full automatic packing machine which included product feeding---film forming---product wrapping---bag sealing---bag packing.

Device parameters:

Packaging film width 30/1000mm (non-standard customizable)

Bag-making width: 30～500mm (non-standard customized)

Bag length: 130mm-1000mm (non-standard customized)

Packing speed: 60-120 bags (per minute) (non-standard customized)

Product height: max/100mm (non-standard can be customized)

Power specification: 2.8 kW, 220v

Machine size: 3800*800/1500mm

Machine quality: 900kg

Features:

the fastest four edge sealing packing machine, sealing the best advanced four edge sealing packing, high degree of automation, fault alarm, according to the characteristics of simple operation!This machine is mainly applicable to packing warm pad,infusion heater, plaster,patch, eye patch, surgical dressings and similar products

Equipment introduction:

1. Three-servo control, the bag length is set and cut immediately, no need to adjust the idling, one step is in place, saving time and film.

2. Man-machine interface, convenient and quick parameter setting.

3. The fault self-diagnosis function, the fault display is clear at a glance.

4. High-sensitivity photoelectric eye color mark tracking, digital input of the sealing and cutting position, so that the sealing and cutting position is more accurate.

5. Independent PID control of temperature, better suitable for various packaging materials.

6. Positioned stop function, no sticking to the knife, no wasting of film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.
