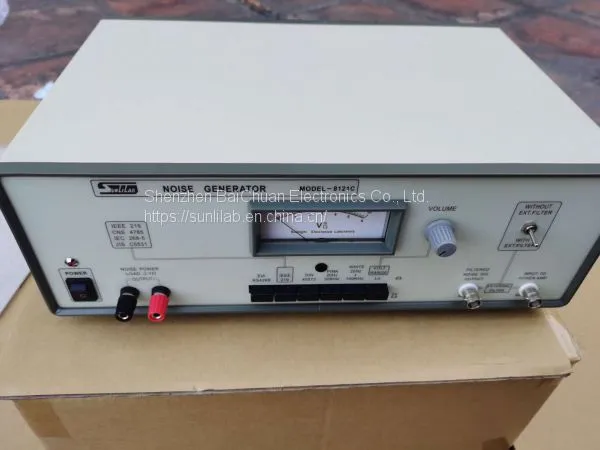

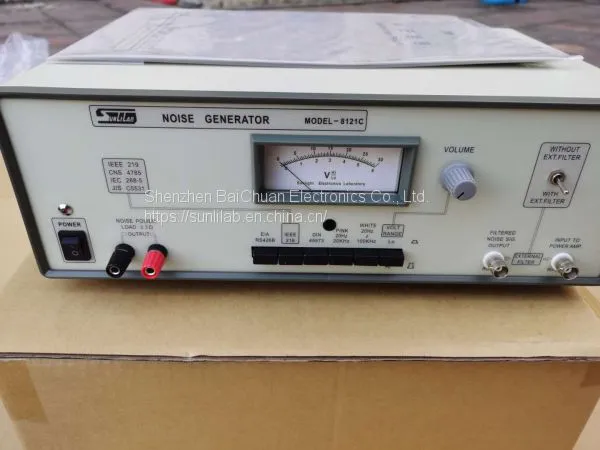

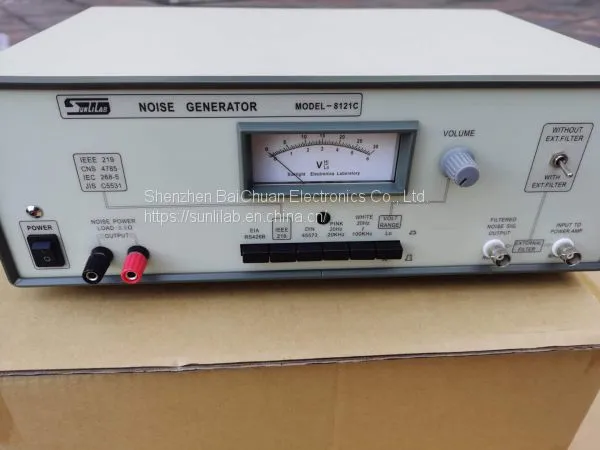

8121C Noise Generato 8121C Noise Generato

Name: 8121C Noise Generato 8121C Noise Generato
Brand: SUNLILAB
Price: USD $1780 - 1880 / Bag

FOB Price

USD $1780 - $1880 / Bag

1 Bag(Min.Order)

Supply Ability 20 Bag / Bags per Month
Port SHENZHEN
Payment Terms:T/T
Delivery Detail:1 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	SUNLILAB	Place of Origin:	China	Model Number:	8121c
Weight:	10	Operating Temperature:	8121c	Supply Voltage:	8121c
Dimensions:	8121c	Display Type:	Other, 8121c	Accuracy Class:	8121c
Measuring Range:	8121c

Product Description

Model-8121C generates " Pseudo Random Noise " by using Digital Technique,  this is the most  advanced method for generating the audio white noise.
The conventional noise generator practically generates only the white noise & pink noise, it needs to combine with weighting filter,power amplifier and true rms voltmeter ( a total of 4 circuits) before it can be used to test the loudspeaker. 8121C consists of all the aforementioned 4 circuits, it can generate pink noise, white noise & 3 other kinds of weighted noise that comply with the standards of the countries mentioned .
If special noise spectrum is needed, the user can insert a self-made weighting filter between the noise signal output and power amplifier input terminals.
Usage :
1.  Continuously  load  test  of  the  loudspeaker, headphone,speaker  system and crossover.
2.  Defines the rated input power of the under  testing sample based on the result of continuously  load  test.
3.  Injects noise signal to the loudspeaker , for measuring  the  sound pressure sensitivity ( dB value )  of  the  loudspeaker.
4.  Measures  the  frequency  response  curves of the loudspeaker by combining with the Audio  Spectrum  Analyzer.

Note :
Model-8121B is the old Model, which have already ceased to produce , it is now being replaced by Model-8121C. The only difference between the Model-8121C and Model-8121B is Model-8121B uses the old EIA 426A standard weighting filter (EIA-426A have been abolished) ; while 8121C uses the weighting filter that complies with the newly required EIA 426B standard. Sunlight also provides: Model-8121FT-1 Noise Filter, which complies with IEC-268-1 specification. (It must combine for use with either Model-8121B or Model-8121C).

Model - 8121FT - 1 (1) 8121FT-1 is the weighting filter made in accordance to IEC-60268-1 requirement, it must linked with either Model-8121C or 8121B made by Sunlight Electronics Laboratory, to enable it to generate weighting noise filter that complied with IEC-60268-1 requirement , for undergoing the life testing of the loudspeaker and by defining the rated power of the loudspeaker. (2) When using please take note that: The input signal adopts the Pink Noise, and not other signal of noise sources. (3) Furthermore, the noise generated from this weighting filter also complies with the filter noise required by the JIS C5532 .
Specifications of Model - 8121C
Noise Type : White Noise: -3dB Bandwidth : 20Hz~100 kHz Roll off : -24dB / Oct. Flatness : ±1dB Pink Noise: -3dB Bandwidth : 20Hz~20 kHz Roll off : -24dB / Oct. Crest factor : 4 ( IEEE 219 ) Weighted Noise : Complies IEEE 219, CNS 4785, JIS C5531. 4. Weighted Noise : Complies EIA 426B 5. Weighted Noise : Complies DIN 45573.
