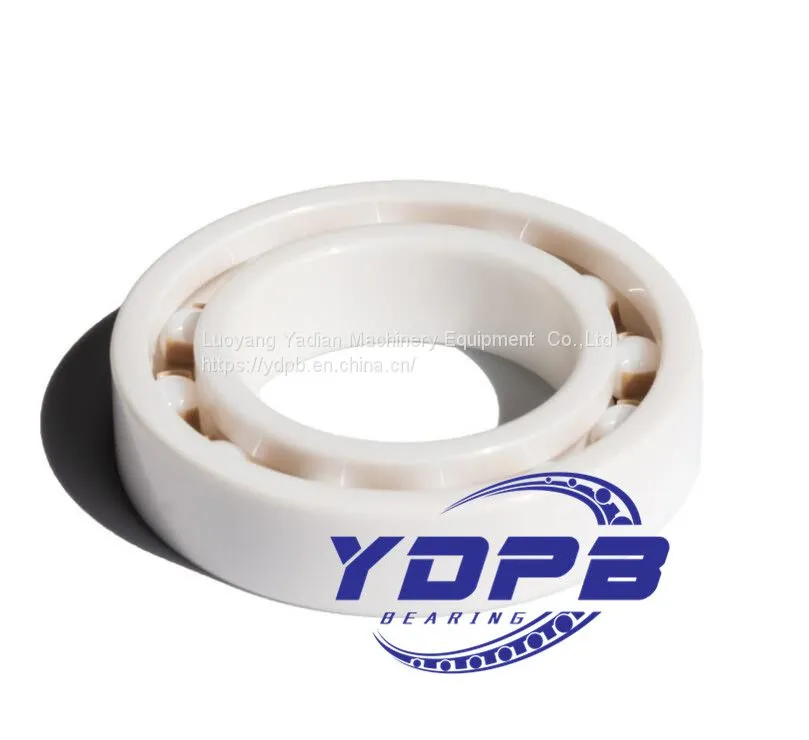

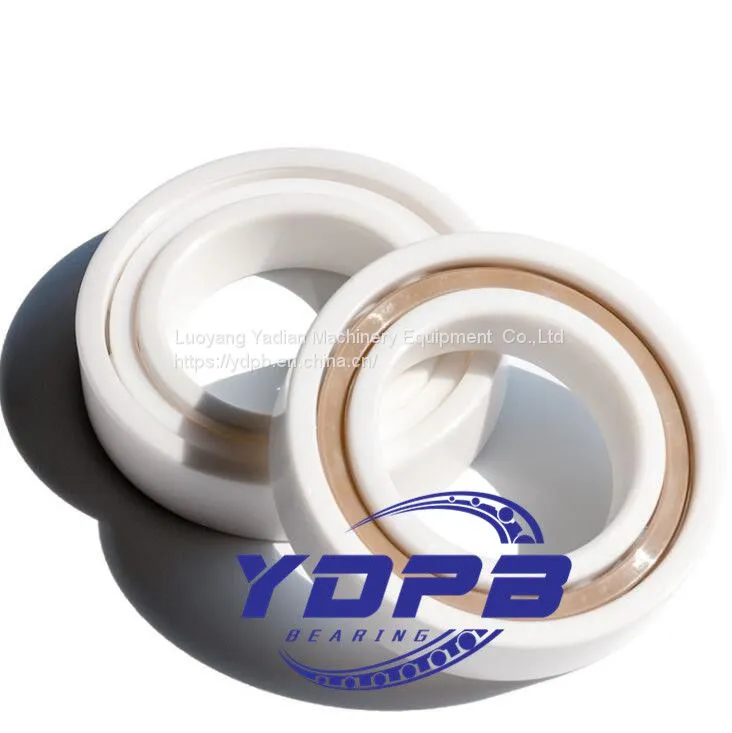

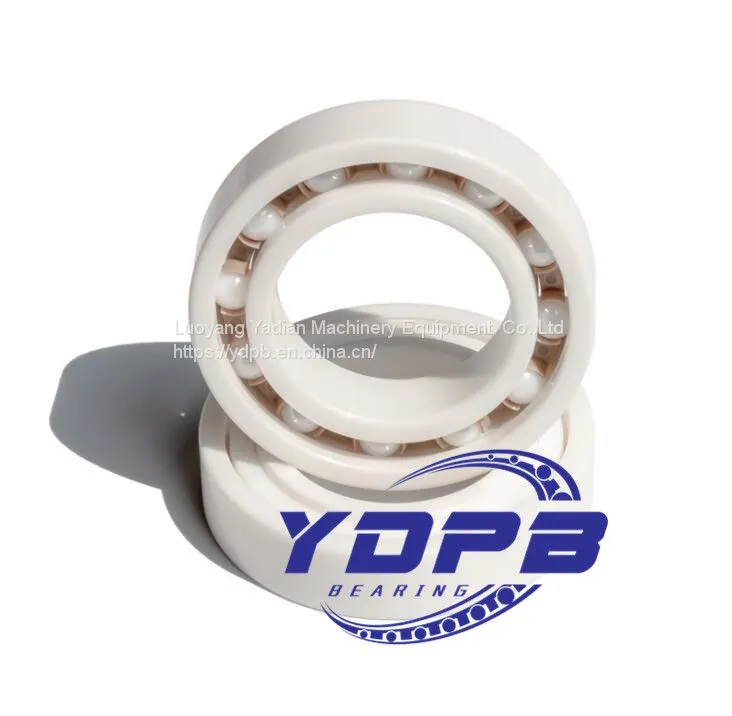

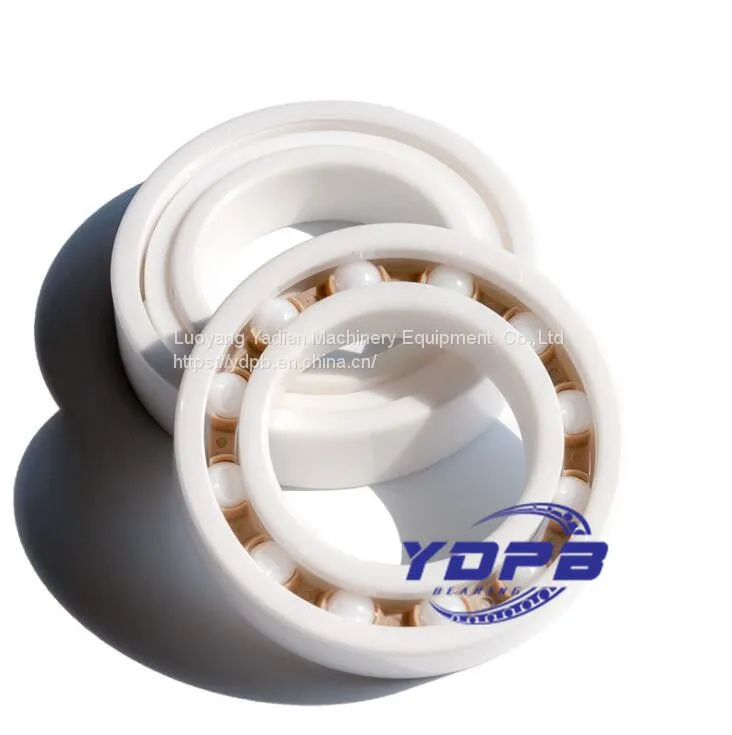

623 ZrO2 Full Ceramic Bearing 3x10x4mm for Electroplating Equipment China
US$ 5 - 2000
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
YDPB
Place of Origin:
China
Model Number:
623
Payment & Shipping
Payment Methods:
Port of Shipment:
Luoyang
Delivery Detail:
7 days
Related Products
-
633 ZrO2 Full Ceramic Bearing 3x13x5mm for Chemical Equipment ChinaUS$ 5 - 2000MOQ: 10 Sets -
633 ZrO2 Full Ceramic Bearing 3x13x5mm for Textile Machinery ChinaUS$ 5 - 2000MOQ: 10 Sets
-
684 ZrO2 Full Ceramic Bearing 4x9x2.5mm for Textile Machinery ChinaUS$ 5 - 2000MOQ: 10 Sets
-
694 ZrO2 Full Ceramic Bearing 4x11x4mm for Textile Machinery ChinaUS$ 5 - 2000MOQ: 10 Sets
-
604 ZrO2 Full Ceramic Bearing 4x12x4mm for Textile Machinery ChinaUS$ 5 - 2000MOQ: 10 Sets
Brand Name
YDPB
Place of Origin
China
Model Number
623
Number of Row
Single Row
Seals Type
no
Outside Diameter
7, 120
Bore Size
3, 85

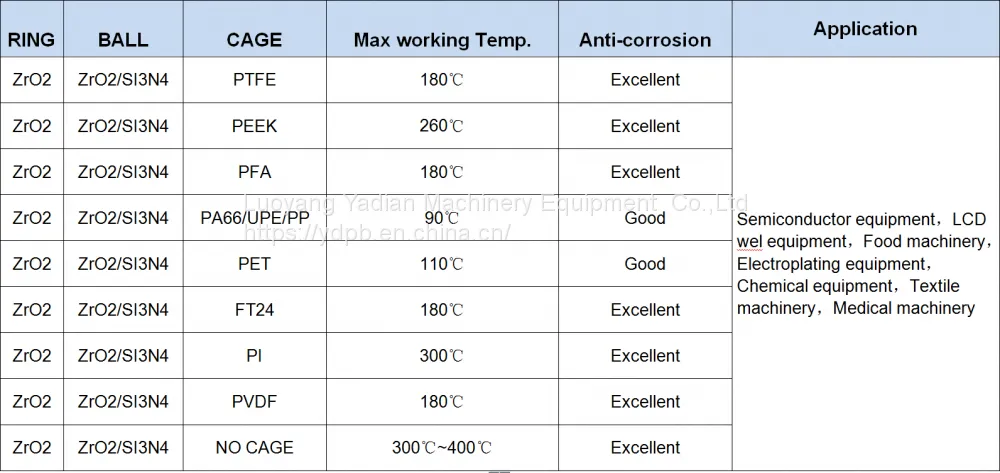

Full ceramic bearing ZrO2 material
Full ceramic bearing of Zro2 materials has perfect properties such as high and low temperature resistance, high pressure resistance,corrosion resistance,anti-magnetic insulation and self lubrication, Therefore, it can work in special environment in which hybrid ceramic bearing and earing steel are not applicable
Parameters
| Model | Basic dimension（mm) | Mounting dimension（mm） | Weight | |||||||
| ID | OD | H | r | da | da | Da | ra | Ref.（kg) | ||
| min | max | max | max | ZRO2 | SI3N4 | |||||
| 684CE | 4 | 9 | 2.5 | 0.1 | 4.8 | / | 8.2 | 0.1 | 0.0005 | 0.0003 |
| 694CE | 11 | 4 | 0.15 | 5.2 | / | 9.8 | 0.15 | 0.0013 | 0.0007 | |
| 604CE | 13 | 4 | 0.2 | 5.6 | / | 10.4 | 0.2 | 0.0017 | 0.0009 | |
| 624CE | 16 | 5 | 0.2 | 5.6 | / | 11.4 | 0.2 | 0.0023 | 0.0013 | |
| 634CE | 16 | 5 | 0.3 | 6 | / | 14 | 0.3 | 0.0040 | 0.0022 | |
| 685CE | 5 | 11 | 3 | 0.15 | 6.2 | / | 9.8 | 0.15 | 0.0009 | 0.0005 |
| 695CE | 13 | 4 | 0.2 | 6.6 | / | 11.4 | 0.2 | 0.0019 | 0.0010 | |
| 605CE | 14 | 5 | 0.2 | 6.6 | / | 12.4 | 0.2 | 0.0027 | 0.0015 | |
| 625CE | 16 | 5 | 0.3 | 7 | / | 14 | 0.3 | 0.0038 | 0.0021 | |
| 635CE | 19 | 6 | 0.3 | 7 | / | 17 | 0.3 | 0.0066 | 0.0036 | |
More information ,pls contact us
