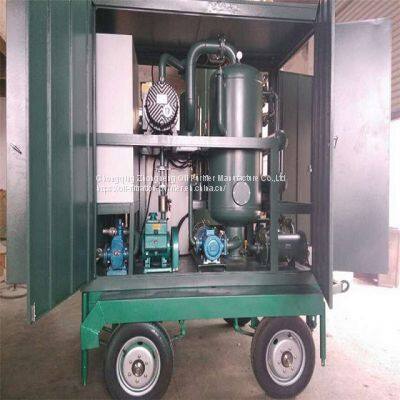

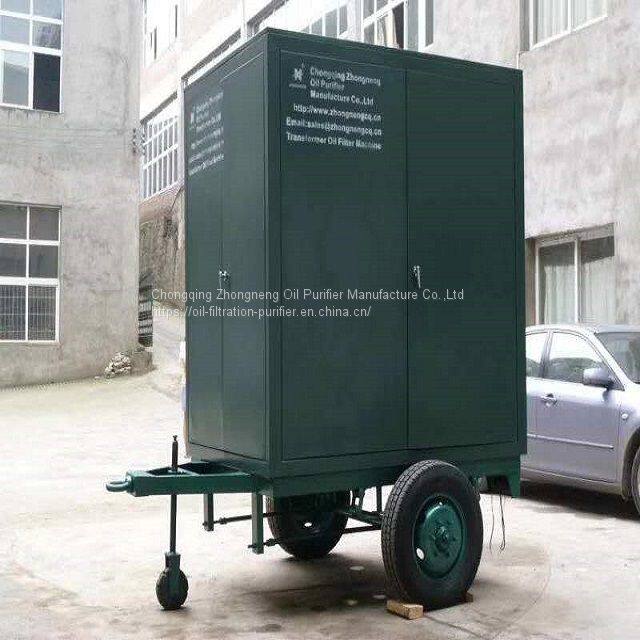

Fully Closed With Trailer Oil Recycling Device/Double Stage Vacuum Transformer Oil Regeneration System Equipment/Transformer Oil Cleaning chine

Fully Closed With Trailer Oil Recycling Device/Double Stage Vacuum Transformer Oil Regeneration System Equipment/Transformer Oil Filter Machine

COMPANY INTRODUCTION

Chongqing Zhongneng Oil Purifier Manufacture Co., Ltd is a leading oil purifier manufacturer in China, which engages in developing, producing, selling a series of oil purifier such as transformer oil purifier, turbine oil purifier, engine oil purifier, lube oil purifier and so on. We practice in this line for eight years, so we have a strong technology and gain rich experience. Our products have been exported to many countries, and get a high reputation.

Since the foundation of our company, under the duty of devoting our efforts to develop the advanced purifier for saving energy sources, adopting the advanced management like SUBI, and with the reliance on the strong technical force, advanced equipments of production, perfect quality check method, fast and outstanding after-sales service, our company has developed into a national big base specialized in producing oil purifier. Our products are outstanding because of its excellence in quality, stability in service, and diversity of products.

Chongqing Zhongneng Oil Purifier Manufacture Co., Ltd owns a number of national-class oil purifier experts and experienced engineers. Encouraged by the company's modern management mechanism, we have developed six big series, including hundreds of models oil purifier equipments which have the independent property right and advanced filter technology. Those equipments can be applied to many fields, such as the electric power, petroleum chemical, metallurgical industry, mine, aviation, shipping and railway, and so on.

APPLICATION

This machine is applied to recovery unqualified transformer oil, mutual inductor oil, switching oil and other insulation oil.

Especially large transmission and transformation voltage equipment above 110KV and national main transformer network in areas above 500 meters above sea level.

PRINCIPLE

when this machine start working, the used oil will be injected into the primary filter under the pressure, the primary filter will remove the big impurities, then the oil which just contains the particles is heated by the heater. Then the treated oil enter into the vacuum separator, the vapor is separated from the oil and refrigerate to water under the process of the lowest-vacuum pressure and the degassing equipments. The last procedure is that the fine filter removes the particles completely.

ADVANTAGE

Comparing with the single-stage vacuum oil purifier, this machine dewaters, degases and removes the impurities more quickly, more completely, and improves the oil breakdown voltage much higher. As the bridge-type vacuum linking system, it is used for filtrating system as well as an independent vacuum power supply to vacuum oiling of power equipment.

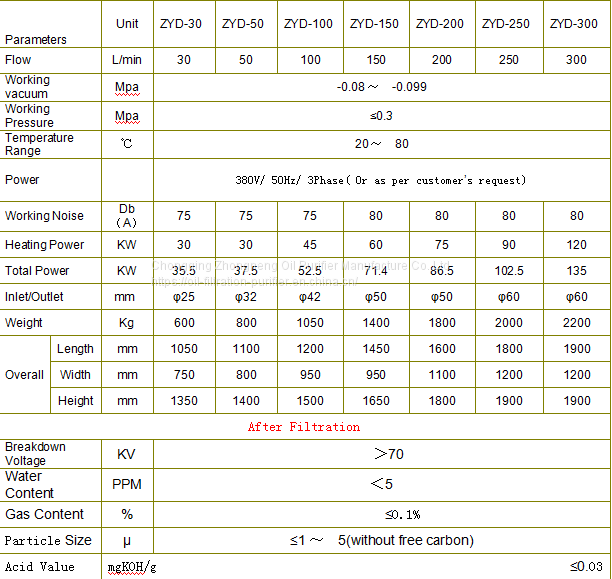

TECHNICAL DATA

Company view

After-sales Services
1.One year guarantee for product quality. (People damaged parts are charged).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Free training for machines installation and operation of  the staffs.

For more information please contact us!    Please leave us your email to send you more photos , brochures and price details. Thank you!
