SMU-3020EA Optical Measuring Machine & Full-automatic Vision Measuring Machine

FOB Price

US$ 75000 - 81000 / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SMU		Place of Origin	China
Model Number	SMU-3020EA

Product Description

Fully automatic video measuring machine

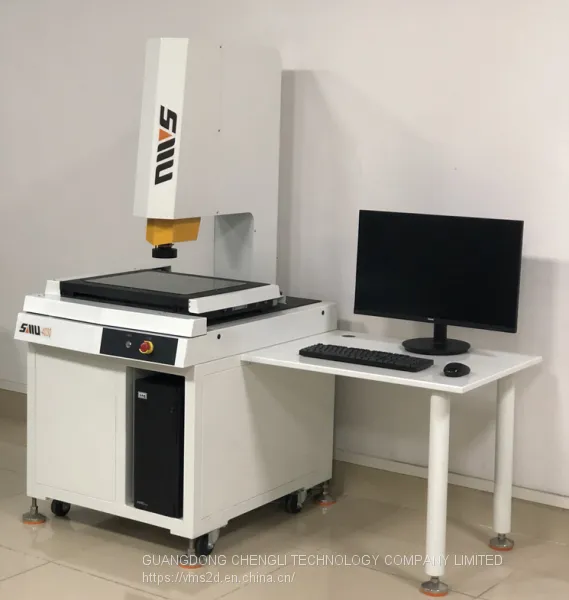

SMU-3020EA Full-Automatic Video Measuring Machine Supplier

Features:

* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate

* The machine can be operated by levers or by software programming

* Program controlled data processing is helpful for large-scale workpiece measurement

* The servo motor is controlled on the X, y and Z axes, with fast positioning speed, high accuracy and stable movement

* Independently embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation

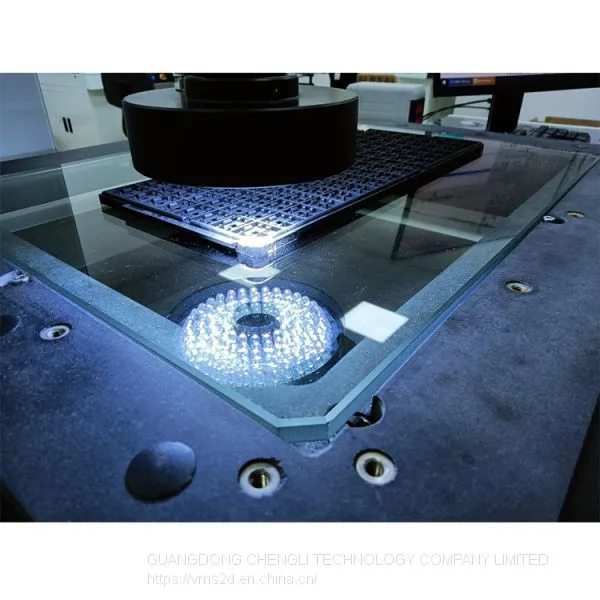

* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces

* Optional auto zoom lens, laser shifter, MCP probe for customers to choose

Application:

Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields

Specifications:

Model

SMU-322EA

SMU-432EA

SMU-542EA

Worktable

Marble top size (mm)

460*360

560*460

660*560

Glass Worktable size (mm)

350*250

450*350

550*450

X/Y Travel (mm)

300*200

400*300

500*400

Bearing capacity of glass worktable(KG)

25KG

XY Base

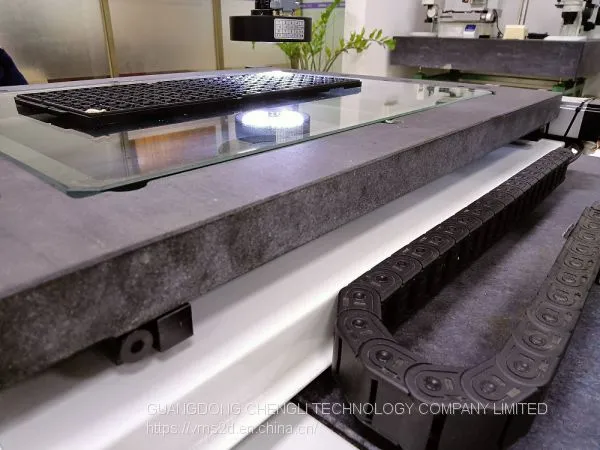

Grade 00 Ji’Nan Green Marble

Weight(KG)

150KG

200KG

240KG

Outline size(L*W*H)mm

850*1500*1600

950*1600*1600

1050*1700*1700

X,Y,Z Resolution(mm)

0.001(optional: 0.0005)

Accuracy(μm)

≤3+L/200

Z axis Travel (mm)

Effective stroke: 200mm, working distance: 90mm

(Can be customized made to 400mm)

Transmission system

High precision transmission guide rail,

precision polished rod, imported bearing

Driving motor

High performance CNC servo system

Power Supply：AC220V/50HZ AC110V/60HZ

Video system

Camera: Gigabit Ethernet digital camera

Zoom lens magnification (standard configuration): 0.7X-4.5X

(optional 12:1 zoom lens magnification: 0.6X-7.2X)

Image magnification: 20X-128X

(optional 0.5X objective / 2X objective)

Zoom lens

0.7X～4.5X

Working distance

(mm)

Additional lens

Magnification

Object view (mm)

Magnification

Object view (mm)

0.5X(optional)

10X～64X

22～3.4

175

44～6.8

175

1X(standard)

20X～128X

11～1.7

22～3.4

2x(optional)

40X～256X

5.5～0.9

11～1.7

Industrial computer (standard configuration)

Optional on-axis light,joystick,probe,laser shifter

Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team

Note: the object view is equal to the length of the diagonal
