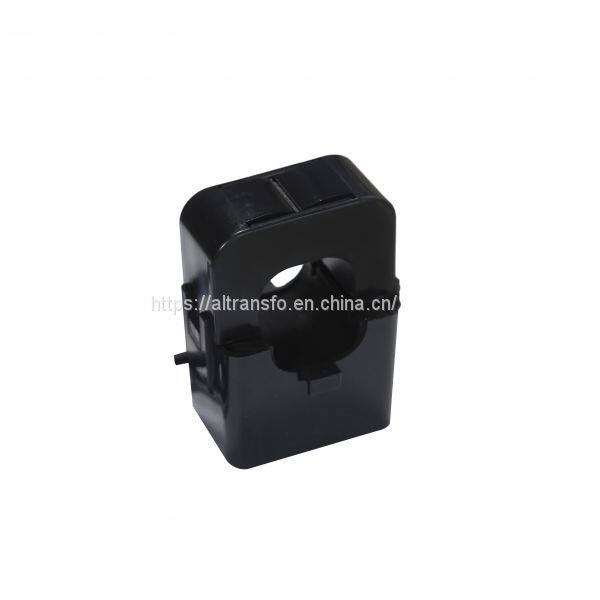

China AC Electric Mini Split Core Current Transformer 100A/100mA
- shanghai
- T/T L/C D/P D/A PayPal Other
- 10 days
You May Like
-
UL Rohs Certification Customization Low Frequency Common Mode Inductor Choke Filter Inductor
-
UU Series Variable Common Mode Choke/Inductors
-
UU Line Filters Common Mode Choke Coil/UU Inductor
-
Series Inductor Emi Filter/UU9.8 Inductor Common Mode Choke
-
Electrical Common Mode Chokes Filter Inductor for Power Supply
-
UU Type and UF Type Filter Inductor Common Mode Choke
Product Details
| Brand Name | AL TRANSFO | Place of Origin | China | |
| Model Number | AL-CT27 | Usage | Current | |
| Phase | Single | Coil Number | Autotransformer | |
| Coil Structure | Other |
Product Description
Product DescriptionSpecifications
Current sensors
1. Small size,
2. high accuracy,
3.good consistency,
4. for current and power measurement
Split core Current Transformer, Current Sensor
We sell several different families of current transformers (CTs) in various window sizes, current ranges, and accuracy grades. All of the CTs that we sell feature safe, low-voltage outputs (not current ratio outputs) for indoor use only in 50 or 60 Hz circuits up to 600 Vac. This type of CT contains a built-in burden resistor and is calibrated to output exactly 333.33 mVac when the CT's rated full-scale current flows through the conductor in the CT's window opening.
To select a CT, we recommend first deciding on a style, either an opening (split-core) or a solid-core CT, then select the model you need based on the maximum load current you are measuring and the size of the conductor being monitored.
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment,
etc.Compatible with HVAC temperature control, power management,building automation systems.
