Introduction

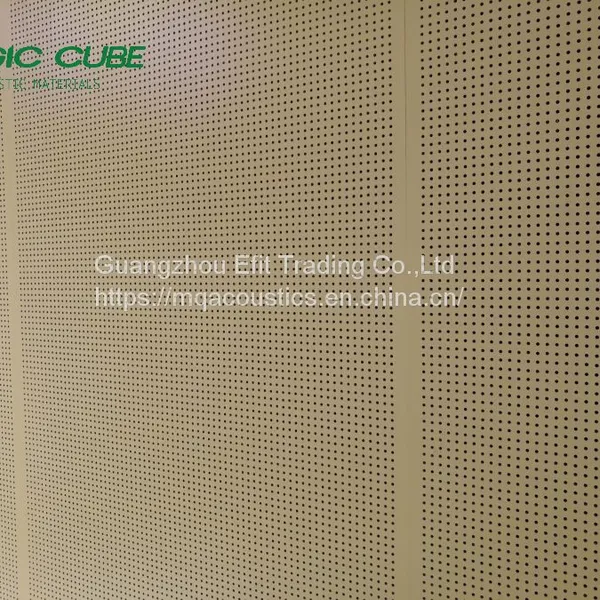

The perforated wooden board is a new indoor sound-absorbing material developed according to the principle of acoustics. The panel is made of high-density MDF panel with thicknesses of 12mm, 15mm, 18mm, it can also be customized according to the customer’s requirements. The perforated wooden board has the functions of sound absorption, sound insulation, and noise reduction. The wooden grooved acoustic panel is easy to install and has Class A fire performance with excellent acoustic effect. Is an ideal choice for offices, meeting rooms, schools and healthcare privacy areas.
Specifications
l Basic Material: E1 MDF, FR MDF, Black MDF
l Front Finish: Melamine, Veneer, Paint, HPL
l Back Finish: Black Acoustic Felt
l Standard Size: L600xW600mm, L1200xW600mm
l (Alternate lengths and widths are available)
l Standard Thickness: 12/15/18 mm
l Formaldehyde Emission: Can meet both China&EU Standard Class E1
l Flame Retardant: Can meet China Standard Class B, BS476 Part 7
l Class1, EN13501 Class B etc.
l Pattern: 32/32/8, 32/32/6, 16/16/6, 16/16/8, 8/8/3, 8/8/1
Features
Aesthetic products: Acoustic panels can be coated on the surface, and different textures can be designed.
Green products: All materials meet the national environmental protection standards, the formaldehyde content is extremely low, and the products have natural fragrant wood.
Moisture-proof and mildew-proof: The sound-absorbing board makes full use of the specially processed high-density moisture-proof board to ensure the moisture-proof performance of the product, greatly extending the service life of the material and expanding the choice of places of use.
Safety Commitment: The highest timber fire rating B1. Meet the decoration requirements in large places.
Easy to install: standardized modular design, installation is very simple and convenient.

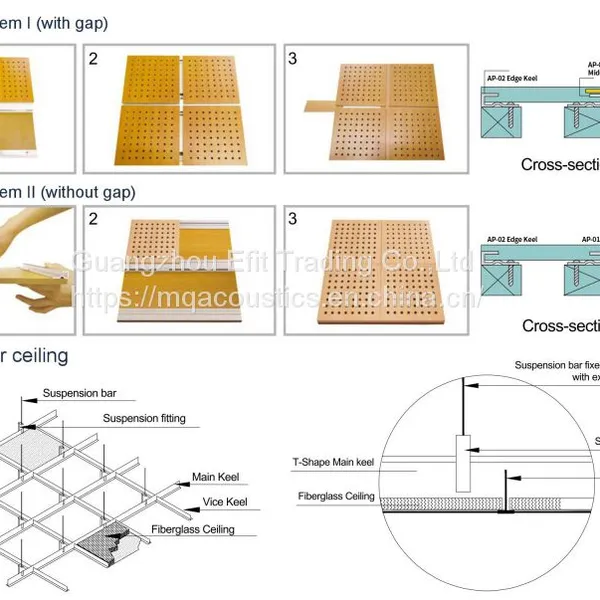

Installation steps of perforated wooden board
The first step is to install the aluminum material on the wooden frame or bottom plate at a distance of 6-600mm.
The second step is to fill the sound insulation foam between the aluminum materials. The recommended filling density is 32-64kg/m. Fill the sound insulation foam with a density of 32-64kg/m between the aluminum profiles.
In the third step, use clips to fix the perforated wood wall panels to the aluminum profile.
The fourth step, if multiple perforated wood wall panels are installed, the distance between each one should be 2-3mm.
In the fifth step, if the perforated wood wall panels is installed horizontally, the notch of the sound insulation board should face down and need to be fixed with clamps. After that, install a sound insulation board to the lowest one.
FAQ
Q：How do I get the perforated wooden board price?
A：Please contact our sales clerk online or leave your email address, we will usually quote within 24 hours after receiving your inquiry (except weekends and holidays).
Q:Can I purchase perforated wooden board sample for placing an order?
A: It is possible. We accept samples to confirm product quality, if you need more information, please feel free to contact us.
Q:What is your delivery time?
A:we can ship small quantities within 10 days, and large quantities can ship within 15 days.
Q:What is your payment term?
A:T/T, Western Union, MoneyGram and Paypal.
Q：What is the mode of transportation?
A：Due to its large size and heavy weight, it will always be transported by sea.
