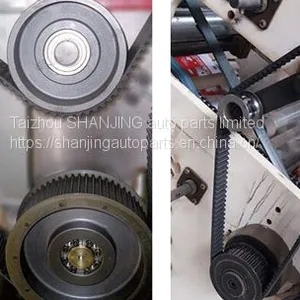

Trapezoidal Tooth Timing Belt
- T/T L/C
You May Like
-
Traffic Facilities
-
Industrial Timing Belt
-
Common Vehicle Drive Belt
-
Buy Mazda Serpentine Belt 5PK690 With Competitive Price From SHANJING Manufactruer
-
Buy Mazda Timing Belt 107YU22 With Competitive Price From SHANJING Manufactruer
-
Buy Mitsubishi Hyundai Timing Belt 163RU25 With Competitive Price From SHANJING Manufactruer
Product Description
Taizhou ShanJing auto parts Limited as a rubber belt supplier of rubber auto products in industry over 11 years. customer's good feedback is the power to give us insist on providing high-quality t belt in car.

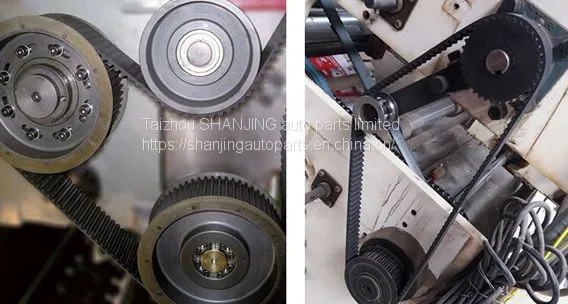

The applications of Trapezoidal Tooth Timing Belt
Printing, packaging, machine tools, te*tiles, engraving, marking, tobacco, financial equipment, computer printing, communication cables, petrochemicals, instrumentation, fitness equipment, laser cutting, electronic appliances, medical equipment, etc. Large transmission field.
Types Of Trapezoidal Tooth Timing Belt And The Dimension Of SectionType | Pitch(mm) | Tooth height(mm) | Belt thickness(mm) | Angle(°) |
M*L | 2.032 | 0.51 | 1.14 | 40 |
**L | 3.175 | 0.76 | 1.52 | 50 |
*L | 5.08 | 1.27 | 2.3 | 50 |
L | 9.525 | 1.91 | 3.6 | 40 |
H | 12.7 | 2.29 | 4.3 | 40 |
*H | 22.225 | 6.35 | 11.2 | 40 |
**H | 21.75 | 9.53 | 15.7 | 40 |
T.25 | 2.5 | 0.7 | 1.3 | 40 |
T5 | 5 | 1.2 | 2.2 | 40 |
T10 | 10 | 2.5 | 4.5 | 40 |
T20 | 20 | 5 | 8 | 40 |
AT5 | 5 | 1.2 | 2.7 | 50 |
AT10 | 10 | 2.5 | 5 | 50 |
AT20 | 20 | 5 | 8 | 50 |
The Trapezoidal Tooth Timing Belt Provided By Shanjing
Type | Pitch Length(mm) | Number of teeth | Type | Pitch Length(mm) | Number of teeth |
Type M*L | |||||
32M*L | 81.28 | 40 | 36M*L | 91.44 | 45 |
40M*L | 101.6 | 50 | 42M*L | 107.7 | 53 |
43M*L | 109.73 | 54 | 44M*L | 111.76 | 55 |
45M*L | 113.79 | 56 | 47M*L | 119.89 | 59 |
48M*L | 121.92 | 60 | 49M*L | 123.95 | 61 |
50M*L | 128.02 | 63 | 52M*L | 132.08 | 65 |
53M*L | 134.11 | 66 | 54M*L | 138.18 | 68 |
56M*L | 142.24 | 70 | 57M*L | 144.27 | 71 |
58M*L | 146.3 | 72 | 60M*L | 153.43 | 75 |
61M*L | 154.43 | 76 | 63M*L | 160.53 | 79 |
64M*L | 162.56 | 80 | 65M*L | 166.62 | 82 |
66M*L | 168.66 | 83 | 68M*L | 172.72 | 85 |
69M*L | 176.78 | 87 | 70M*L | 178.82 | 88 |
72M*L | 182.88 | 90 | 74M*L | 186.94 | 92 |
75M*L | 191.01 | 94 | 76M*L | 193.04 | 95 |
77M*L | 197.1 | 97 | 78M*L | 199.14 | 98 |
80M*L | 203.3 | 100 | 81M*L | 207.26 | 102 |
82M*L | 209.3 | 103 | 84M*L | 213.36 | 105 |
85M*L | 215.39 | 106 | 88M*L | 223.52 | 110 |
Taizhou Shanjing Auto Parts Co., Ltd is one of professional industrial timing belt manufacturers. We provide Car V Belt, Car Serpentine Belt and so on. Want to know about car belt price? Please contact us.
